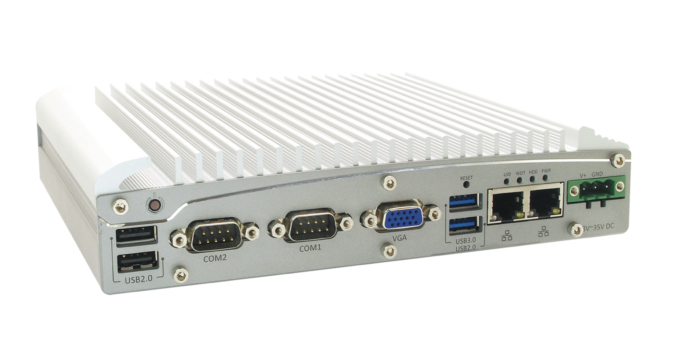

Nuvo-2500LP Neousys Intel Celeron Bay Trail J1900 Fanless Computer Low Profile

Nuvo-2500LP

This product is no longer available.

An Alternative Product May Be Available!

Contact us for more information at 866-412-6278 or enter your information below.

Main Features :

  • Intel Celeron Bay Trail J1900 quad-core processor
  • 205mm x 146mm x 45 mm low-profile chassis
  • Rugged, -25°C to 70°C fanless operation
  • Dual storage with 1x mSATA and 1x SATA
  • Dual independent display via VGA and DVI connectors
  • 2x RS-232/422/485 + 2x RS-232
  • Optional MAIO for DI/O, PWM and Encoder signals
  • 8 to 35VDC wide-range DC input
Specifications
ManufacturerNeousys
ProcessorIntel Celeron Bay Trail J1900 quad-core processor (2.42 GHz, 2M cache)
GraphicsIntegrated Intel HD Graphics
Memory1x 204-pin SO-DIMM socket,up to 8GB DDR3L 1333MHz SDRAM
Video Port1x DVI-I connector with DVI-D output, supporting 2560 x 1600 resolution
DIO1x Mic-in, 1x Speaker-out
SATA HDD1x Internal SATA port for 2.5" HDD/SSD installation
mSATA1x internal half-sized mSATA (SATA + USB)
DC Input8~35V DC input
Dimension205 mm (W) x 146 mm (D) x 76 mm (H)
MountingWall-mounting (standard)DIN-Rail mounting (optional)|Wall-mounting (standard)|DIN-Rail mounting (optional)
Operating Temperature-25 C ~ 70 C with SSD, 100% CPU loading */**-10 C ~ 50 C with HDD, 100% CPU loading */**|-25 C ~ 70 C with SSD, 100% CPU loading */**|-10 C ~ 50 C with HDD, 100% CPU loading */**
Humidity10%~90% , non-condensing
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64)
ShockOperating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
EMCCE/FCC Class A, according to EN 55022 & EN 55024
Operating SystemWindows 7, Windows 10, Linux
