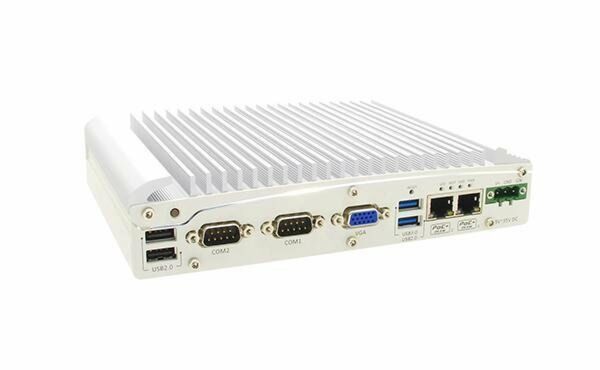

Nuvo-2510VTC Neousys Intel Atom E3845 Fanless in-Vehicle Controller

Starting at $630.00

Main Features

  • Intel Atom E3845 1.91GHz quad-core processor Rugged,
  • -25°C to 70°C fanless operation
  • Two Gigabit 802.3at PoE+ ports by Intel I210 controllers
  • Built-in CAN bus for in-vehicle communication
  • 8~35V wide-range DC input and ignition power control
  • 3x mini-PCIe/mSATA slots for 3G/WIFI/GPS capability
  • Two RS-232/422/485 ports and two RS-232 ports
  • Patented shock-absorbing bracket for in-vehicle installation certificate



Nuvo-2510VTC Data Sheet
(Size: 383.8 KB)
Core System Configuration
Nuvo-2510VTC

* Required Fields

Your Configuration
Nuvo-2510VTC Neousys Intel Atom E3845 Fanless in-Vehicle Controller
Neousys Intel Atom E3845 Fanless in-Vehicle Controller

In stock

Add to Favorites

$630.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

Nuvo-2510VTC is an in-vehicle fanless computer with Intel® Atom™ E3845 quad-core processor. Equipped with 2 IEEE 802.3at Gigabit Ethernet ports, Nuvo-2510VTC is capable of driving 25W GigE and PoE IP cameras with a single standard CAT-5e. Along with intelligent ignition power control and built-in CAN bus, Nuvo-2510VTC is ideal for light-weight mobile applications such as mobile NVR and mobile ANPR. Designed for in-vehicle applications, Nuvo-2510VTC supports wide-range DC input and can be powered by 12VDC or 24VDC vehicle battery. It features intelligent ignition power control with selectable on and off delay and battery voltage monitoring. Nuvo-2510VTC also supports one built-in CAN bus port with compliance to CAN 2.0A and CAN 2.0B. The CAN bus is the foundation of various vehicles protocols. Nuvo-2510VTC provides 2 PoE+ Gigabit Ethernet ports and 1 USB 3.1 port for industrial-grade cameras on IP cameras. There are also 4 serial ports and 3 USB 2.0 ports available. For mobile applications which require data transmission, Nuvo-2510VTC can install two 3G/4G modules with USIMs in its 2 mini PCI Express (mPCIe) sockets. Nuvo-2510VTC is ideal for in-vehicle applications.
Nuvo-2510VTC Data Sheet
(Size: 383.8 KB)
Specifications
ProcessorIntel Atom Bay Trail E3845 Quad-core Processor (1.91 GHz, 2M cache)
GraphicsIntegrated Intel HD Graphics
Memory1x 204-pin SO-DIMM socket,up to 8GB DDR3L 1333MHz SDRAM
PoE2x IEEE 802.3at (25.5W) Gigabit Ethernet ports by Intel I210
Video Port1x DVI-I connector with DVI-D output, supporting 2560 x 1600 resolution
DIO1x Mic-in, 1x Speaker-out
SATA HDD1x Internal SATA port for 2.5" HDD/SSD installation
mSATA1x internal half-sized mSATA (SATA + USB)
Dimension205 mm (W) x 146 mm (D) x 44 mm (H)
MountingPatent-pending shock-absorbing wall-mounting (standard) or DIN-Rail mounting (optional)
Operating Temperature-25 C ~ 70 C with SSD, 100% CPU loading */**-10 C ~ 50 C with HDD, 100% CPU loading */**|-25 C ~ 70 C with SSD, 100% CPU loading */**|-10 C ~ 50 C with HDD, 100% CPU loading */**
Humidity10%~90% , non-condensing
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64)
ShockOperating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
EMCCE/FCC Class A, according to EN 55022 & EN 55024
CPU Cores4
CPU FamilyIntel Atom
Base CPU SpeedUnder 2.0 Ghz
PoE Ports2
LAN Ports1-4
Serial Ports1-2
USB 2.03-4
USB 3.01-2
Max Memory8 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed< 1600 HHz
Form FactorFanless
ManufacturerNeousys
Native Storage Type2.5" SSD, mSATA Mini
On/IgnitionBuilt In Ignition Control
