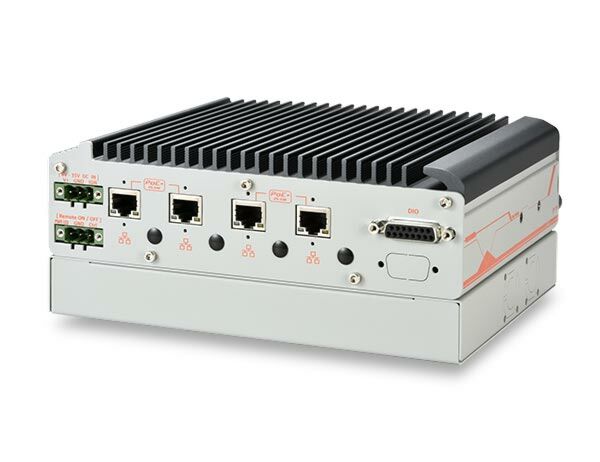

Nuvo-2600: Intel Elkhart Lake Atom x6425E Fanless Computer with PoE+ and Ignition Options
Nuvo-2600Starting at $895.00
- Intel Elkhart Lake Atom x6425E quad-core 2.0GHz/ 3.0GHz 12W processor
- Rugged -25°C to 70°C fanless operation
- 4x Gigabit PoE+ ports via RJ-45 connector with screw-lock
- 1x isolated RS-485 port and 1x RS-422/485 or 3x 3-wire RS-232 ports
- 2x full-size mini-PCIe sockets and 1x M.2 3042/3052 B key
- 1x front-accessible 2.5” SATA SSD tray (up to 15mm height) and 1x M.2 2280 SATA
- 1x patented Cassette for single-slot PCIe card (Nuvo-2600E), or 1x 2500 watt-second SuperCAP UPS (Nuvo-2600J)
- 8V to 35V wide-range DC input with remote control and optional ignition power control
Frequently Asked Questions
The Nuvo-2600 provides:
- 4x Gigabit Ethernet ports (RJ-45, screw-lock) via Intel® I210, supporting PoE+ (802.3at)
- 1x USB 3.1 Gen1 (5 Gbps) port with screw-lock
- 2x USB 2.0 ports with screw-lock
- 1x DVI-I connector offering both DVI and VGA output (up to 1920x1080)
- 1x isolated RS-485 port (COM1) with 15 kV ESD protection
- 3x 3-wire RS-232 ports or 1x RS-422/485 port (COM2/3/4, software-configurable)
- 1x 3.5 mm 4-pole audio jack for mic-in/speaker-out
- 4-channel isolated digital input and 4-channel isolated digital output
The system accepts 8V to 35V wide-range DC input through a 3-pin pluggable terminal block, which also carries the optional ignition signal. Supplying more than 35V will damage the unit. Measured power consumption (12W CPU, 16GB RAM, 256GB SATA SSD, 100% CPU load) is about 32W at 35V, and up to 135W at 35V when all four PoE+ ports are fully loaded at 25.5W each.
The Nuvo-2600 operates from -25°C to 70°C and can be stored from -40°C to 85°C, with 10%~90% non-condensing humidity. It is rated for MIL-STD-810G vibration (Method 514.7, Category 4) and shock (Method 516.7, Procedure I), and is CE/FCC Class A compliant per EN 55032 & EN 55035. Note: for sub-zero or above-50°C ambient operation, a wide-temperature HDD or SSD is required.
The Nuvo-2600 supports up to 32GB DDR4-3200 SDRAM via one SO-DIMM socket. For storage, it has one internal M.2 2280 M-key slot (SATA signal only) for an SSD, plus one front-accessible 2.5" HDD/SSD tray (7-15mm height, up to 5TB capacity).
Due to Intel's driver policy, the Nuvo-2600 officially supports Windows 10 64-bit (Professional and IoT Enterprise editions). For Linux, Neousys has tested Ubuntu 20.04.2 LTS with a 5.8 kernel; users may need to manually compile the Intel® I210 GbE driver if it is not built into the kernel. Neousys also provides a separate driver package for Watchdog Timer (WDT) control.
The Nuvo-2600 measures 205 mm (W) x 155/156 mm (D) x 86/86.15 mm (H). The Nuvo-2600E weighs 2.3 kg and the Nuvo-2600J (with SuperCAP UPS) weighs 2.5 kg. An optional wall-mount bracket kit is available.
Yes. The system has two full-size mini-PCIe sockets (one with PCIe + USB 2.0 signal, one with USB 2.0 signal only) for wireless modules such as WiFi, and one M.2 3042/3052 B-key socket with dual internal micro-SIM sockets to support 4G/5G mobile broadband modules. Antenna openings are provided on the front and rear panels.
The Nuvo-2600E includes a patented Cassette module with a PCIe x4 slot (2-lane PCIe 3.0) for installing a single-slot PCIe add-on card, such as a USB or GbE frame grabber. The Nuvo-2600J instead has an integrated 2500 watt-second SuperCAP UPS power backup module, but does not have the PCIe Cassette slot.
Each Gigabit PoE+ port is compliant with IEEE 802.3at PoE+ PSE and can deliver up to 25.5W to a connected powered device. The total PoE+ power budget across all ports is 100W. The ports are also backward compatible with 802.3af (PoE) devices.
How-to Guides
- Disassemble the system enclosure per the standard disassembly procedure, then remove the screws securing the heatsink.
- Remove the heatsink to expose the SO-DIMM memory slot on the motherboard.
- Insert the gold fingers of the memory module into the slot at a 45-degree angle.
- Push down on the edge of the module until the side clips engage and secure it in place.
- Reinstall the heatsink, system enclosure, or panel when done.
- Disassemble the system enclosure per the standard disassembly procedure.
- Remove the screws indicated and remove the heatsink to access the M.2 slot.
- Insert the M.2 2280 module into the slot at a 45-degree angle.
- Gently press the module down and secure it with the provided M3 P-head screw.
- Reinstall the heatsink and the system enclosure or bottom panel when done.
- Place the system on a flat, sturdy surface and turn the thumb screws on the front-accessible tray counter-clockwise.
- Gently pull out the 2.5" HDD/SSD tray.
- With the HDD/SSD label facing downward, secure the drive to the tray using the two screws provided on each side.
- Insert the tray back into the slot until you feel resistance.
- Tighten the thumb screws clockwise to secure the tray and complete the installation.
- Disassemble the system enclosure per the standard disassembly procedure and remove the heatsink to access the M.2 B key and SIM card slots.
- Slide the metallic SIM cover in the indicated direction and lift it to expose the SIM socket.
- Place the micro-SIM card in the socket in the orientation shown, lower the cover, and slide it closed to secure the SIM.
- Insert the M.2 3042/3052 module into the slot at a 45-degree angle and secure it with the provided screw.
- Clip the IPEX-to-SMA cable onto the module and secure the antenna connector to an antenna opening on a side panel.
- Reinstall the system enclosure or bottom panel when done.
- Locate the 3-pin pluggable terminal block on the rear panel, which is shared for DC power and ignition signal input.
- Connect the vehicle Battery+ line (12V for sedan, 24V for bus/truck) to the V+ terminal.
- Connect the vehicle Battery-/GND line to the GND terminal.
- Connect the vehicle ACC line to the IGN terminal.
- Ensure the DC power source and IGN signal share the same ground. Do not exceed 35VDC on the IGN input or you may damage the system.
The Nuvo-2600 series is an Intel Elkhart Lake Atom fanless computer with flexible expansions to fulfill versatile factory automation and machine vision applications that require a compact footprint, Gigabit PoE+ capability, and front-accessible data storage with CPU performance at 12W of low power consumption.
Powered by Intel Elkhart Lake Atom x6425E quad-core CPU, the Nuvo-2600 series delivers 320% CPU performance improvement compared with our previous Nuvo-2500E series. The Nuvo-2600 series has four Gigabit PoE+ and one USB 3.1 ports with screw-lock mechanisms to secure camera connections. In addition to its internal M.2 2280 SATA SSD for system storage, Nuvo-2600 has one front-accessible 2.5" HDD tray accommodating a 7-15mm 2.5" SSD/HDD up to 5TB in storage capacity. It also has one isolated RS-485 port and isolated DIO to provide robust connections with industrial devices. For internal expansion, the Nuvo-2600 series provides two mini-PCIe sockets and one M.2 3042/3052 B Key socket to support 4G/5G mobile broadband.
To meet diverse deployment requirements, the Nuvo-2600 series comes in two variants. The Nuvo-2600E has a PCIe Cassette for an additional PCIe card, e.g., USB or GbE frame grabber, isolated DIO, or industrial communication card. While Nuvo-2600J has an integrated SuperCAP UPS that can withstand power interruption or voltage fluctuation in industrial environments. Featuring Intel Elkhart Lake Atom quad-core CPU, wide temperature operation, industrial I/O interfaces, and expansion Cassette module, Nuvo-2600 series is the perfect, multi-purpose fanless Industrial PC for factory automation and machine vision applications.
| Manufacturer | Neousys |
|---|---|
| Short Description | Intel Elkhart Lake Atom x6425E Fanless Computer with PoE+ and Ignition Options |
| Processor | Intel Elkhart Lake Atom x6425E quad-core 2.0GHz/3.0GHz 12W processor |
| Graphics | Integrated Intel UHD Graphics |
| Memory | Up to 32 GB DDR4-3200 SDRAM by one SODIMM socket |
| PoE | In compliant with IEEE 802.3at PoE+ PSE, maximal 25.5W output on single PoE+ port. Compatible with 802.3at (PoE+) and 802.3af (PoE) PD |
| Video Port | VGA and DVI dual display outputs via DVI-I connector |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| DIO | 4-CH isolated DI and 4-CH isolated DO |
| PCI Express | 1x PCIe x4 slot @ 2-lane PCIe 3.0 signal in Cassette (Nuvo-2600E only) |
| M.2 | 1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation |
| Mini PCI-E | 1x full-size mini PCI Express socket with PCIe and USB 2.0 signal 1x full-size mini PCI Express socket with USB 2.0 signal |
| SATA HDD | 1x front-accessible HDD tray for 2.5" HDD/ SSD installation (up to 15mm height) |
| mSATA | 1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation |
| Fan | Fanless |
| Remote Ctrl. & Status Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Dimension | 205 mm (W) x 155 mm (D) x 86 mm (H) |
| Weight | 2.3 kg (Nuvo-2600E) 2.5 kg (Nuvo-2600J) |
| Mounting | Wall-mount bracket (optional) |
| Operating Temperature | -25°C ~ 70°C* *A wide-temperature HDD drive or solid-state disk (SSD) is required for sub-zero operating temperature. |
| Storage Temperature | -40°C ~85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.7, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.7, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
| Ultracapacitor Configuration | 2500 watt-second (Nuvo-2600J only) |
