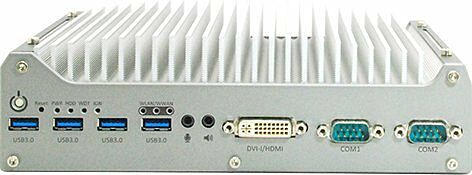

Nuvo-3120 Neousys Intel 3rd-Gen Core i5 fanless embedded controller with 2x Gigabit Ethernet ports

Nuvo-3120

This product is no longer available.

An Alternative Product May Be Available!

Contact us for more information at 866-412-6278 or enter your information below.

Main Features:

  • 210 mm x 165 mm x 59 mm very compact size
  • Intel 3rd-Gen i7/i5 PGA-type processor
  • User-configurable CPU power mode for adapting to various environments
  • 4x IEEE 802.3at (25.5W) Gigabit PoE ports
  • DVI/VGA + DisplayPort triple independent display outputs
  • Dual 2.5 inch SATA ports with one hot-swappble HDD tray
  • 8 ~ 35V wide-range DC input and built-in ignition power control
  • E-Mark certification for in-vehicle applications



PDF Document - Nuvo-3120 Data Sheet
Nuvo-3120 Data Sheet
(Size: 722.7 KB)
It is one of the most compact fanless controllers supporting Intel® 3rd-Gen Core™ i7 /i5 PGA-type processor, Neousys Nuvo-3120’s footprint measures just 212 mm x 165 mm x 62mm. While other compact fanless controllers adopt low-voltage BGA-type Core™ i7 CPU (17W), Nuvo-3120 supports standard voltage PGA-type Core™ i7/ i5 CPUs (45W/ 35W) for better computation power and flexible CPU selection. A unique feature, configurable CPU power mode, is developed to balance the trade-off between heat-sink size and operating temperature. According to ambient conditions, you can configure Nuvo-3120 to operate in Maximum Performance, reduced performance or extended temperature mode. Regardless of its’ compact dimensions, the system still has plenty of I/O functions such as Gigabit Ethernet, USB3.0, SATA, COM port, mini-PCIe and isolation DIO. It also supports triple-independent display outputs to benefit image-related applications. Compact yet powerful, Nuvo-3120 meets all your embedded controller needs.
PDF Document - Nuvo-3120 Data Sheet
Nuvo-3120 Data Sheet
(Size: 722.7 KB)
Specifications
ManufacturerNeousys
ProcessorIntel Core i7-3610QE (2.3/3.3 GHz, 6 MB cache)Intel Core i5-3610ME (2.7/3.3 GHz, 3 MB cache)|Intel Core i7-3610QE (2.3/3.3 GHz, 6 MB cache)|Intel Core i5-3610ME (2.7/3.3 GHz, 3 MB cache)
GraphicsIntegrated Intel HD Graphics 4000 Controller
Memory1x 204-pin SO-DIMM sockets, up to 8 GB DDR3 1333/1600 MHz SDRAM
ChipsetIntel HM76 PCH(Nuvo-3120)
Audio1x mic-in and speaker-out
SATA HDD1x Internal SATA port for 2.5" HDD/SSD
mSATA1x full-size mSATA (SATA/USB/W_DISABLE#) with USIM socket
DC Input8~35V DC input via 3-pin pluggable terminal block
Dimension210 mm (W) x 165 mm (D) x 62 mm (H)
MountingWall-mounting (Standard) or DIN-Rail mounting (Optional)
Operating Temperaturehumidity=10%~90% , non-condensing
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64)
ShockOperating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
CPU Cores4
CPU FamilyIntel Core
Base CPU Speed2.1 to 3.0 GHz
Video OutputDisplay Port, DVI-I
LAN Ports1-4
Serial Ports1-2
USB 2.01-2
USB 3.03-4
Max Memory8 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed< 1600 HHz
Form FactorFanless
Native Storage Type2.5" SSD, mSATA Full
