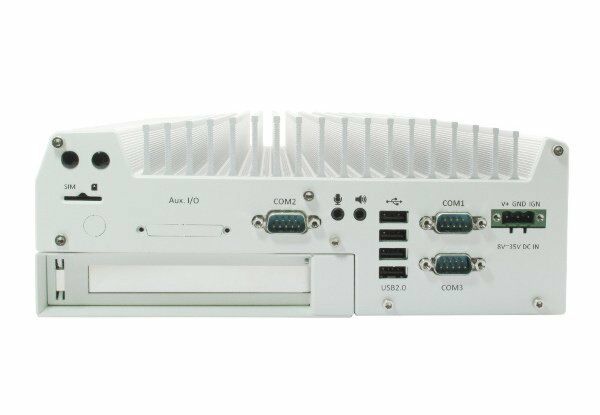

Nuvo-5000E/P Neousys 6th Gen Intel Skylake Core Fanless Controller

Nuvo-5000E/P

Starting at $1,315.00

Main Features:

  • Supports Intel® 6th Gen Core™ i7/i5/i3 35W/65W LGA1151 CPU
  • Patented Cassette for PCI/PCIe add-on card accommodation
  • MezIO™ interface for easy function expansion
  • Rugged, wide temperature range from -25°C to 70°C fanless operation
  • Up to 6x GigE ports, supporting 9.5 KB jumbo frame
  • Up to 32 GB, DDR4-2133 SODIMM
  • Accommodates two 2.5" SATA HDD/SSD with RAID 0/1
  • VGA/DVI/DP triple independent display, supporting 4K2K
PDF Document - Nuvo-5000E&P Data Sheet
Nuvo-5000E&P Data Sheet
(Size: 720.3 KB)
PDF Document - MezIO Compatibility Chart
MezIO Compatibility Chart
(Size: 791.1 KB)

System Configuration


* Selection required

Your Configuration
Nuvo-5000E/P Neousys 6th Gen Intel Skylake Core Fanless Controller
Nuvo-5000E/P Neousys 6th Gen Intel Skylake Core Fanless Controller

In stock

$1,315.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

Nuvo-5000 is Neousys’ rugged fanless embedded controller with performance and versatility. It supports socket-type 6th-Gen Core™ processors so one can choose a CPU according to application performance needs while Neousys’ efficient heat-dissipating design offers true -25°C to 70°C Wide temperature operation. With plenty of embedded I/O connections for applications including Gigabit Ethernet, USB3.0/ USB2.0, COM ports, VGA/ DVI/ DP triple display outputs and if that’s not enough, Neousys' patented Cassette offers I/O expansion by installing an off-the-shelf PCIe/PCI card. On top of all that, Nuvo-5000 also incorporates Neousys MezIO™ interface. The patented design enhances Neousys’ embedded system with a costeffective and reliable way for I/O expansion. The MezIO™ module can deliver application-oriented functions for diversified vertical markets. Neousys Nuvo-5000 features 6th-Gen Intel® CPU, patented Cassette and MezIO™ to create a powerful and yet diverse controller for all your industrial application needs!
PDF Document - Nuvo-5000E&P Data Sheet
Nuvo-5000E&P Data Sheet
(Size: 720.3 KB)
PDF Document - MezIO Compatibility Chart
MezIO Compatibility Chart
(Size: 791.1 KB)
Specifications
ManufacturerNeousys
ProcessorIntel® Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz)|Intel® Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz)|Intel® Core™ i3-6100TE (4M Cache, 2.7 GHz)|Intel® Pentium® G4400TE (3M Cache, 2.4 GHz)
MemoryUp to 32 GB DDR4-2133 SDRAM by two SODIMM sockets
ChipsetIntel®Q170 Platform Controller Hub
PoEOptional IEEE 802.3at PoE+ PSE for GbE Port 3 ~ Port 6, 80 W total power budget
Audio1x Mic-in and 1x Speaker-out
DC Input1x 3-pin pluggable terminal block for 8~35VDC DC input
Dimension240 mm (W) x 225 mm (D) x 90 mm (H)
MountingWall-mounting (standard) or DIN-Rail mounting (optional)
Operating Temperature-25C ~ 60C
Humidity10%~90% , non-condensing
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64)
ShockOperating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
EMCCE/FCC Class A, according to EN 55022 & EN 55024
CPU Cores4
CPU FamilyIntel Core
Base CPU Speed2.1 to 3.0 GHz, 3.1 to 3.5 GHz
Video OutputDisplay Port, DVI-D, VGA
LAN Ports5-8
Serial Ports3-4
USB 2.05-6
USB 3.03-4
Max Memory32 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed2400 MHz
Form FactorFanless
Native Storage Type2.5" SSD, mSATA Full
On/IgnitionRemote On/Off
