Nuvo-5000LP Neousys 6th Generation Intel Skylake Core i7/i5 Fanless Controller

Nuvo-5000LP

Starting at $1,300.00

The Nuvo-5000LP series are rugged, wide-temperature PCs capable of withstanding most industrial environments. It’s powered by Intel 6th-Gen Core i7/i5/i3 Processors, and can handle up to 32GB of RAM. The versatile Nuvo-5000LP is capable of operating at wide range temperatures between -25°C to 70°C, due to its fanless design.

Main Features:

  • Intel® 6th Gen Core™ i7/i5/i3 35W/65W socket-type CPU
  • MezIO™ interface for easy function expansion
  • Rugged, wide temperature range from -25°C to 70°C fanless operation
  • Up to 6x GigE ports, supporting 9.5 KB jumbo frame
  • Up to 32 GB, DDR4-2133 SODIMM

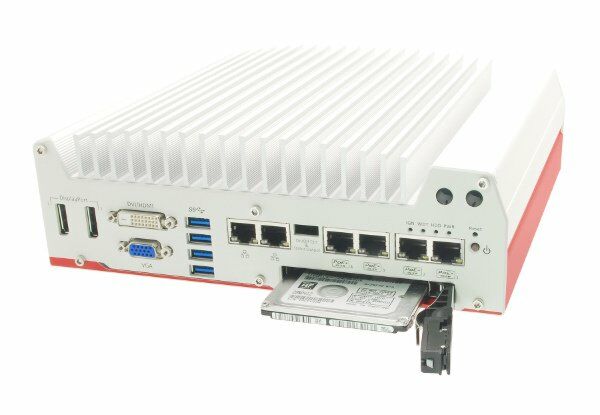

  • One hot-swappable 2.5" HDD/SSD and one fixed 2.5" HDD/SSD, supporting RAID 0/1
  • Accommodates two 2.5" SATA HDD/SSD with RAID 0/1
  • VGA/DVI/DP triple independent display, supporting 4K/2K
  • 77 mm low-profile design
PDF Document - Nuvo-5000LP Data Sheet
Nuvo-5000LP Data Sheet
(Size: 801 KB)

System Configuration


* Selection required

Your Configuration
fanless pc for rugged environments
Nuvo-5000LP Neousys 6th Generation Intel Skylake Core i7/i5 Fanless Controller

In stock

$1,300.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

Nuvo-5002LP/ 5006LP are low-profile systems in the Nuvo-5000 family. They feature a 77mm low-profile chassis and yet retain extraordinary -25°C to 70°C wide operating temperature capability. Neousys Nuvo-5002LP/ 5006LP supports LGA1151 socket-type CPUs so one can choose an Intel® 6th-Gen Core™ i7/i5/i3, from 35W to 65W TDP CPU according to application performance and operation needs. Nuvo-5002LP/ 5006LP has plentiful I/Os such as GbE, USB3.0/ USB2.0, COM and VGA/ DVI/ DP. It also incorporates Neousys’ MezIO™ interface for additional or application-oriented I/O expansion. By installing an optional MezIO™ module, Nuvo-5002LP/ 5006LP transforms from a typical embedded controller to a ruggedized application platform that may include up to 11x COM ports, 32 DIO channels, ignition power control or customized application-specific I/Os.
Specifications
ManufacturerNeousys
Short Description The Nuvo-5000LP series are rugged, wide-temperature PCs capable of withstanding most industrial environments. It’s powered by Intel 6th-Gen Core i7/i5/i3 Processors, and can handle up to 32GB of RAM. The versatile Nuvo-5000LP is capable of operating at wide range temperatures between -25°C to 70°C, due to its fanless design.
ProcessorIntel® Core™ i7-6700 (8M Cache, 3.4/4.0 GHz, 65W TDP)|Intel® Core™ i5-6500 (6M Cache, 3.2/3.6 GHz, 65W TDP)|Intel® Core™ i3-6100 (3M Cache, 3.7 GHz, 51W TDP)|Intel® Pentium®G4400 (3M Cache, 2.4 GHz, 54W TDP)|Intel® Celeron®G3900 (2M Cache, 2.8 GHz, 51TDP)|Intel® Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP)|Intel® Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP)|Intel® Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP)|Intel® Pentium®G4400TE (3M Cache, 2.4 GHz, 35W TDP)|Intel® Celeron®G3900TE (2M Cache, 2.3 GHz, 35W TDP)
GraphicsIntegrated Intel® HD Graphics 530 (Core™ i7/i5/i3)|Integrated Intel® HD Graphics 510 (Pentium®)
MemoryUp to 32GB DDR4-2133 SDRAM (two SO-DIMM slots)
ChipsetIntel®Q170 Platform Controller Hub
PoEOptional IEEE 802.3at PoE+ PSE for GbE Port 3 - 6, 80 W total power budget
Video Port1x stacked VGA + DVI-D connector|2x DisplayPort connectors, supporting 4K/2K resolution (triple-independent display support)
Audio1x Mic-in1x Speaker-out|1x Mic-in|1x Speaker-out
mSATA1x full-size mSATA port (mux with mini-PCIe)
DC Input1x 3-pin pluggable terminal block for 8~35VDC DC input
Dimension240 mm (W) x 225 mm (D) x 77 mm (H)
MountingWall-mounting (standard) or DIN-Rail mounting (optional)
Operating Temperaturewith i7-6700, i5-6500, i3-6100 (65W/51W TDP)|-25°C ~ 70°C (Configured as 35W mode)|-25°C ~ 50°C (Configured as 65W/51W mode)
Storage Temperature-40°C ~ 85°C
Humidity10%~90% , non-condensing
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
ShockOperating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
EMCCE/FCC Class A, according to EN 55022, EN 55024 & EN 55032
