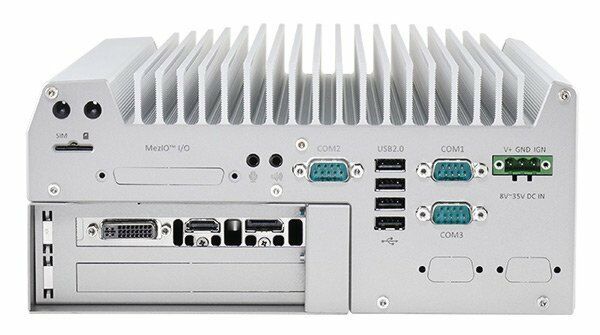

Nuvo-5095GC: Neousys Compact and Wide-Temperature GPU Computing Platform with PoE
Nuvo-5095GC SeriesStarting at $1,540.00
The Nuvo-5095 GC is a rugged, wide temperature PC that is designed for many industrial environments. It’s powered by the Intel 6th CPUs and can accept up to 32GB of DDR4-2133/2400 SODIMM RAM. This pioneering industrial PC is designed for AI-related computing with its support for a variety of 75W NVIDIA GPU cards.
Main Features:
- Patent-pending thermal design to allow -25°C to 60°C wide temperature system operation
- Includes 6th-Gen Intel Core i7 or i5 LGA1151 CPU
- 6x GigE ports, supporting 9.5 KB jumbo frame
- Up to 32 GB, DDR4-2133 SODIMM
- 240 mm x 225 mm x 111 mm compact footprint
- Compatible with MezIO interface for function expansion
- Accommodates two 2.5" SATA HDD/SSD with RAID 0/1 support
Frequently Asked Questions
What MezIO expansion modules are compatible with the Nuvo-5095GC?
The Nuvo-5095GC supports several MezIO expansion modules, including MezIO-C180-50 and MezIO-C181-50 (8-port RS-232/422/485), MezIO-V20-EP (16-mode ignition power control), MezIO-D230-50 and MezIO-D220-50 (32/16-channel isolated digital I/O), MezIO-G4P (PoE+ ports), MezIO-G4 (GigE ports), and MezIO-U4-50 (USB 3.0 ports).
Does the Nuvo-5095GC support serial port expansion?
Yes. The Nuvo-5095GC is compatible with the MezIO-C180-50 and MezIO-C181-50 modules, which each add an 8-port RS-232/422/485 interface.
Does the Nuvo-5095GC support isolated digital I/O expansion?
Yes. The Nuvo-5095GC is compatible with the MezIO-D230-50 and MezIO-D220-50 modules, which provide 32/16-channel isolated digital I/O.
Can the Nuvo-5095GC be equipped with PoE+ ports?
Yes, via the MezIO-G4P module. Note that when using MezIO-G4P on Nuvo-5000 series systems (including the Nuvo-5095GC), you must confirm your system has PoE functionality; contact CoastIPC if you are unsure.
Can the Nuvo-5095GC be equipped with additional GigE ports?
Yes. The MezIO-G4 module adds GigE ports and is compatible with the Nuvo-5095GC.
Does the Nuvo-5095GC support USB 3.0 expansion?
Yes, through the MezIO-U4-50 module, which adds USB 3.0 ports.
Does the Nuvo-5095GC support ignition power control?
Yes. The Nuvo-5095GC is compatible with the MezIO-V20-EP module, which provides 16-mode ignition power control.
Can the Nuvo-5095GC use a MezIO module to add a SATA port for a 2.5" HDD/SSD?
No. According to the MezIO compatibility table, the SATA-port modules (MezIO-R10, MezIO-R11, MezIO-R12) are not listed as compatible with the Nuvo-5095GC.
Nuvo-5095GC opens a new chapter for industrial computers. As the first embedded controller targeted at emerging applications of CUDA computing, autopilot, deep learning and virtual reality, Nuvo-5095GC integrates all features required for a compact, reliable and powerful GPU computing platform. Supporting 75W NVIDIA® GPU (e.g. GTX 1050 Ti), Nuvo-5095GC possesses 768 CUDA cores to deliver tremendous computing power for arithmetic/ graphics operations. Neousys’ patented Cassette technology and innovative thermal design help to effectively dissipate the heat generated by the GPU, thus making this compact system capable of operating reliably at 60°C with 100% GPU loading. Nuvo-5095GC is based on Intel® Skylake platform that supports 35W/ 65W 6th-Gen Core™ processors and up to 32GB DDR4 memory. It offers rich I/O functions, such as GbE, USB 3.0 and COM ports to connect to external devices. All these extraordinary features are integrated into a very compact, 240 x 225 x 111 mm footprint. For fast-growing GPU-computing applications, Nuvo-5095GC presents the first industrial-grade, compact and rugged platform incorporating CPU and GPU to offer performance far beyond traditional industrial computers.
| Manufacturer | Neousys |
|---|---|
| Short Description | The Nuvo-5095 GC is a rugged, wide temperature PC that is designed for many industrial environments. It’s powered by the Intel 6th CPUs and can accept up to 32GB of DDR4-2133/2400 SODIMM RAM. This pioneering industrial PC is designed for AI-related computing with its support for a variety of 75W NVIDIA GPU cards. |
| Processor | Supports 6th-Gen Intel® Core™ LGA1151 CPU|- Intel® Core™ i7-6700 (8M Cache,3.4/4.0 GHz, 65W TDP)|- Intel® Core™ i5-6500 (6M Cache, 3.2/3.6 GHz, 65W TDP)|- Intel® Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP)|- Intel® Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP) |
| Graphics | Independent nVidia® GPU (75W TDP) or Integrated Intel¬¨√Ü HD 530/510 Controller |
| Memory | Up to 32 GB DDR4-2133 SDRAM (dual SO-DIMM sockets) |
| Chipset | Intel® Q170 Platform Controller Hub |
| AMT | Supports AMT 11.0 |
| PoE | Optional IEEE 802.3at PoE+ PSE for GbE Port 3 ~ Port 6, 80 W total power budget |
| Video Port | 1x stacked VGA + DVI-D connector|2x DisplayPort connectors, supporting 4K2K resolution |
| Audio | 1x Mic-in and 1x Speaker-out |
| Mini PCI-E | 1x internal mini PCI Express socket with front-accessible SIM socket|1x internal mini PCI Express socket with internal SIM socket (mux with mSATA) |
| SATA HDD | 2x internal SATA port fors 2.5" HDD/SSD installation, supporting RAID 0/1 |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| DC Input | 1x 3-pin pluggable terminal block for 8~35VDC DC input |
| Remote Ctrl. & Status Output | 1x 10-pin (2x5) wafer connector for remote on/off control and status LED output |
| Dimension | 240 mm (W) x 225 mm (D) x 111 mm (H) |
| Weight | 4.8 kg (including CPU, GPU, memory and HDD) |
| Mounting | Wall-mount by mounting bracket |
| Operating Temperature | with i7-6700TE, i5-6500TE (35W TDP)|-25°C ~ 60°C **|with i7-6700, i5-6500 (65W TDP)|-25°C ~ 60°C **/*** (configured as 35W CPU mode)|-25°C ~ 50°C **/*** (configured as 65W CPU mode) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| EMC | CE/ FCC Class A, according to EN 55022, EN 55024 & EN 55032 |
| CPU Cores | 4 |
| CPU Family | Intel Core |
| Base CPU Speed | 2.1 to 3.0 GHz, 3.1 to 3.5 GHz |
| Video Output | Display Port, DVI-D, VGA |
| PoE Ports | 4 |
| LAN Ports | 5-8 |
| Serial Ports | 3-4 |
| USB 2.0 | 5-6 |
| USB 3.0 | 3-4 |
| Max Memory | 32 GB |
| Operating System | Windows 7, Windows 10, Linux |
| Effective Memory Speed | 2400 MHz |
| Form Factor | Fanless |
| Native Storage Type | 2.5" SSD, mSATA Full |
| On/Ignition | Remote On/Off |
