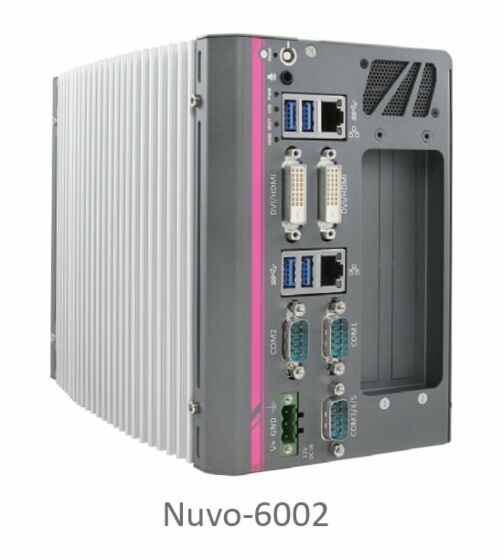

Nuvo-6002 Neousys Intel 6th-Gen Skylake Core i7/i5 Fanless Box-PC
Nuvo-6002An Alternative Product May Be Available!
Contact us for more information at 866-412-6278 or enter your information below.
Main Features:
- Supports 6th-Gen Intel Core i7/i5/i3, Pentium and Cereron LGA1151 CPU
- Up to five expansion slots
- x16 PCIe and x8 PCIe slots
- Rugged, -25 C° to 60 C° fanless operation
- 2x GbE, 4x USB 3.0 and 5x COM ports
- Dual DVI display outputs
- Up to 3x 2.5" SATA accommodation and 1x mSATA socket
- Wall-mounting, DIN-rail mounting and rack-mounting available
- Automatic temperature sensing and fan control (optional)
Nuvo-6000 series is the perfect replacement for your bulky rack-mount or wall-mount IPC systems. Leveraging Intel® 6th-Gen Skylake platform, it delivers the same computing power as traditional IPCs, but in a compact fanless form-factor. Nuvo-6000 series supports LGA1151 socket-type CPU, you can choose from Core™ i7 to Celeron® depending on your budget/ application needs. Its’ 5-slot capacity offer the same level of expandability as most IPCs. The front-accessible I/O design includes 2x GbE, 4x USB3.0 and 5x COM ports, making it easier to access your Nuvo-6000 when it’s placed inside a cabinet or a rack. Neousys’ proven fanless design on Nuvo-6000 translates to extraordinary reliability in rugged industrial conditions while its versatile mounting options make it fit for desktop, cabinet or a 19” rack. With similar performance, cost, compact form-factor and reliability, Nuvo-6000 series speaks for itself.
| Manufacturer | Neousys |
|---|---|
| Processor | Supports 6th-Gen Intel Core, Pentium and Cereron LGA1151 CPU|Intel Core i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP)|Intel Core i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP)|Intel Core i3-6100TE (4M Cache, 2.7 GHz, 35W TDP)|Intel Pentium G4400TE (3M Cache, 2.4 GHz, 35W TDP)|Intel Celeron G3900TE (2M Cache, 2.3 GHz, 35W TDP) |
| Graphics | Integrated Intel HD 530/510 Controller |
| Memory | Up to 16 GB DDR4-2133 by one SODIMM socket |
| Chipset | Intel H110 Platform Controller Hub |
| Video Port | 2x DVI-D connectors for DVI/HDMI outputs, supporting 1920 x1200 resolution |
| Audio | 1x Speaker-out |
| PCI Express | 1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals|1x PCIe x8 slot @ Gen2, 4-lanes PCIE signals |
| SATA | 3x SATA ports for 2.5|HDD/SSD installation (Nuvo-6032)|1x SATA port for 2.5" HDD/SSD installation (Nuvo-6002) |
| mSATA | 1x full-size mSATA socket |
| DC Input | 1x 3-pin pluggable terminal block for 12V DC input |
| Mounting | Wall-mounting (standard), DIN-Rail mounting (optional), rack-mounting (optional) |
| Operating Temperature | -25 C ~ 60 C *** |
| Storage Temperature | -40 C ~ 85 C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, w/o add-on card, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration(w/ SSD, w/o add-on card, according to IEC60068-2-27) |
| EMC | CE/FCC Class A, according to EN 55022 & EN 55024 |
| CPU Cores | 4 |
| CPU Family | Intel Core |
| Base CPU Speed | 2.1 to 3.0 GHz |
| Video Output | DVI-D |
| LAN Ports | 1-4 |
| Serial Ports | 5-6 |
| USB 3.0 | 3-4 |
| Max Memory | 16 GB |
| Operating System | Windows 7, Windows 10, Linux |
| Effective Memory Speed | 2400 MHz |
| Form Factor | Shoebox |
| Native Storage Type | 2.5" SSD, mSATA Full |
| On/Ignition | Remote On/Off |
