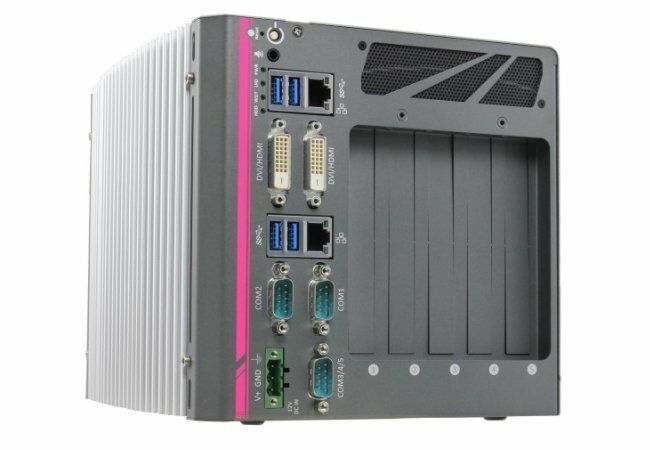

Nuvo-6032 Neousys Intel 6th-Gen Skylake Core i7/i5 Fanless Box-PC


This product is no longer available.

Main Features:

  • Supports 6th-Gen Intel Core i7/i5/i3, Pentium and Cereron LGA1151 CPU
  • Up to five expansion slots
  • x16 PCIe, x8 PCIe and three PCI slots
  • Rugged, -25 C° to 60 C° fanless operation
  • 2x GbE, 4x USB 3.0 and 5x COM ports
  • Dual DVI display outputs
  • Up to 3x 2.5" SATA accommodation and 1x mSATA socket
  • Wall-mounting, DIN-rail mounting and rack-mounting available
  • Automatic temperature sensing and fan control (optional)
PDF Document - Nuvo-6032 User Manual
Nuvo-6032 User Manual
(Size: 3.6 MB)
PDF Document - Nuvo-6032 Data Sheet
Nuvo-6032 Data Sheet
(Size: 443 KB)
Nuvo-6000 series is the perfect replacement for your bulky rack-mount or wall-mount IPC systems. Leveraging Intel® 6th-Gen Skylake platform, it delivers the same computing power as traditional IPCs, but in a compact fanless form-factor. Nuvo-6000 series supports LGA1151 socket-type CPU, you can choose from Core™ i7 to Celeron® depending on your budget/ application needs. Its’ 5-slot capacity offer the same level of expandability as most IPCs. The front-accessible I/O design includes 2x GbE, 4x USB3.0 and 5x COM ports, making it easier to access your Nuvo-6000 when it’s placed inside a cabinet or a rack. Neousys’ proven fanless design on Nuvo-6000 translates to extraordinary reliability in rugged industrial conditions while its versatile mounting options make it fit for desktop, cabinet or a 19” rack. With similar performance, cost, compact form-factor and reliability, Nuvo-6000 series speaks for itself.
ProcessorSupports 6th-Gen Intel Core, Pentium and Cereron LGA1151 CPU|Intel Core i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP)|Intel Core i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP)|Intel Core i3-6100TE (4M Cache, 2.7 GHz, 35W TDP)|Intel Pentium G4400TE (3M Cache, 2.4 GHz, 35W TDP)|Intel Celeron G3900TE (2M Cache, 2.3 GHz, 35W TDP)
GraphicsIntegrated Intel HD 530/510 Controller
MemoryUp to 16 GB DDR4-2133 by one SODIMM socket
ChipsetIntel H110 Platform Controller Hub
Video Port2x DVI-D connectors for DVI/HDMI outputs, supporting 1920 x1200 resolution
Audio1x Speaker-out
PCI Express1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals|1x PCIe x8 slot @ Gen2, 4-lanes PCIE signals
SATA3x SATA ports for 2.5|HDD/SSD installation (Nuvo-6032)|1x SATA port for 2.5" HDD/SSD installation (Nuvo-6002)
mSATA1x full-size mSATA socket
DC Input1x 3-pin pluggable terminal block for 12V DC input
MountingWall-mounting (standard), DIN-Rail mounting (optional), rack-mounting (optional)
Operating Temperature-25 C ~ 60 C ***
Storage Temperature-40 C ~ 85 C
Humidity10%~90% , non-condensing
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, w/o add-on card, according to IEC60068-2-64)
ShockOperating, 50 Grms, Half-sine 11 ms Duration(w/ SSD, w/o add-on card, according to IEC60068-2-27)
EMCCE/FCC Class A, according to EN 55022 & EN 55024
CPU Cores4
CPU FamilyIntel Core
Base CPU Speed2.1 to 3.0 GHz
Video OutputDVI-D
LAN Ports1-4
Serial Ports5-6
USB 3.03-4
Max Memory16 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed2400 MHz
Form FactorShoebox
Native Storage Type2.5" SSD, mSATA Full
On/IgnitionRemote On/Off
