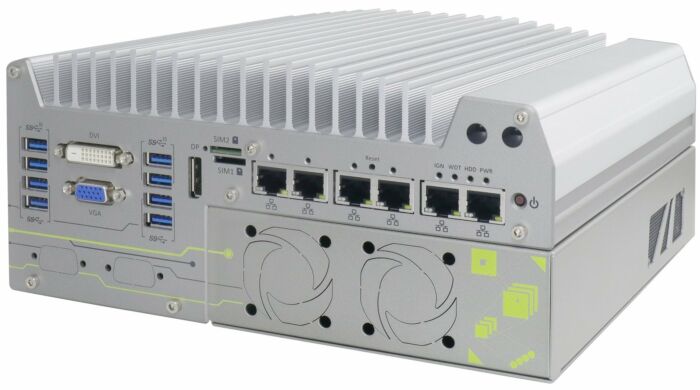

Nuvo-7160GC: Neousys Ruggedized GPU-Computing Platform Supporting NVIDIA
Nuvo-7160 GC SeriesStarting at $1,710.00
- Supports NVIDIA® GPU graphics card up to 120W TDP
- Patented thermal design to allow -25°C to 60°C wide temperature range operation
- Intel® 8th-Gen Core™ hexa-core 35W/65W LGA1151 CPU
- 6x GigE ports, supporting 9.5KB jumbo frame
- M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
- 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
- Accommodates two 2.5" SATA HDD/ SSD with RAID 0/1 support
- Compatible with MezIO™ interface for function expansion
- Patented ventilation design for graphics card
Frequently Asked Questions
The Nuvo-7160GC has 1x PCIe x16 slot @ Gen3 (16-lane PCIe signals) inside a Cassette design for installing an NVIDIA® graphics card up to 120W TDP. Maximum graphics card dimensions are 188 mm (L) x 121 mm (W), with dual slot allocation.
The system provides:
- 6x Gigabit Ethernet ports (I219 and I210 controllers), with optional IEEE 802.3at PoE+ on ports 3-6 (100W total power budget)
- 4x USB 3.1 Gen2 (10 Gbps) ports
- 4x USB 3.1 Gen1 (5 Gbps) ports
- 1x VGA port (up to 1920x1200)
- 1x DVI-D port (up to 1920x1200)
- 1x DisplayPort (up to 4096x2304)
- 2x software-programmable RS-232/422/485 ports (COM1/COM2)
- 2x RS-232 ports (COM3/COM4)
- 1x 3.5 mm audio jack for mic-in and speaker-out
The Nuvo-7160GC accepts 8~35VDC DC input through a 3-pin pluggable terminal block. An optional 280W AC/DC power adapter (PA-280W-ET2, 24V/11.67A) is also available, rated for -30°C to 60°C operation.
Operating temperature depends on CPU/GPU configuration:
- -25°C to 60°C with 35W CPU and 120W GPU
- -25°C to 60°C with 65W CPU and 120W GPU, configured as 35W TDP
- -25°C to 50°C with 65W CPU and 120W GPU, configured as 65W TDP
For i7-9700E and i7-8700 running at 65W mode, maximum operating temperature is limited to 50°C, and thermal throttling may occur under sustained full load. A wide temperature HDD or SSD is required for sub-zero operation. Storage temperature range is -40°C to 85°C, and humidity range is 10%~90% non-condensing.
The system is tested to MIL-STD-810G Method 514.6 Category 4 for vibration and MIL-STD-810G Method 516.6 Procedure I, Table 516.6-II for shock. Safety certification is EN62368-1, and EMC certification is CE/FCC Class A according to EN 55032 and EN 55024.
The system supports up to 64 GB DDR4 2666/2400 SDRAM across two SODIMM slots. Storage options include:
- 2x internal SATA ports for 2.5" HDD/SSD, supporting RAID 0/1
- 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory
- 1x full-size mSATA port (mux with mini-PCIe)
Yes. It has 1x full-size mini PCI Express socket with an internal SIM socket (mux with mSATA), and 1x M.2 2242 B key socket with dual front-accessible SIM sockets supporting dual SIM mode with a selected M.2 LTE module.
The Nuvo-7160GC measures 240 mm (W) x 225 mm (D) x 111 mm (H) and weighs 4.5 Kg. It supports wall-mount (standard) or DIN-rail mount (optional).
Yes, it has a MezIO™ expansion port compatible with Neousys MezIO™ modules, including options for additional serial ports (MezIO™-C180/C181), digital I/O (MezIO™-D220/D230), ignition power control (MezIO™-V20-EP), additional USB 3.1 ports (MezIO™-U4), and additional GigE or PoE+ ports (MezIO™-G4/G4P). Note that only the Nuvo-7160-PoE model supports MezIO™-G4P.
How-to Guides
- Locate the 1x PCIe x16 slot @ Gen3 (16-lane PCIe signals) inside the system's Cassette design.
- Select an NVIDIA® graphics card with TDP up to 120W and dimensions not exceeding 188 mm (L) x 121 mm (W).
- Install the card into the dual-slot allocation within the Cassette, ensuring proper seating in the PCIe x16 slot.
- Locate the 2x internal SATA ports designed for 2.5" HDD/SSD installation.
- Install up to two 2.5" drives into the internal SATA ports.
- Configure RAID 0 or RAID 1 as needed, since the SATA ports support RAID 0/1.
- Locate the M.2 2280 M key socket (PCIe Gen3 x4).
- Insert the M.2 NVMe SSD or Intel® Optane™ memory module into the socket.
- Secure the module according to the M.2 2280 form factor.
- Locate the 3-pin pluggable terminal block for DC input.
- Connect a power source within the 8~35VDC range to the terminal block.
- Alternatively, use the optional PA-280W-ET2 280W AC/DC power adapter (24V/11.67A) with cord end terminals for the terminal block.
- Choose standard wall-mount or optional DIN-rail mount, both of which are supported by the system.
- For added shock/vibration protection, consider the optional Neousys damping bracket assembly designed for the Nuvo-7160GC/Nuvo-7164GC.
- Secure the unit using the chosen mounting method per its footprint of 240 mm (W) x 225 mm (D) x 111 mm (H).
Introduction
Nuvo-7160GC is a ruggedized GPU-aided edge computing platform designed for modern machine learning applications such as autonomous driving, facial recognition and machine vision. It supports up to a 120W GPU, delivering 4~6 TFLOPS computing power for inference, as well as Intel® 9th/ 8th-Gen Coffee Lake Core™ 8/ 6-core CPU, offering up to 50% CPU performance enhancement over previous generations.
Thanks to Neousys' patented Cassette design and ingenious ventilation mechanism, Nuvo-7160GC can effectively dissipate the heat generated by the GPU. By introducing the guided airflow from intake to exhaust with powerful fans featuring smart fan control, it allows a 120W GPU to operate at 60°C ambient temperature under 100% GPU loading.
Nuvo-7160GC incorporates rich I/O functions such as USB 3.1 Gen2/ Gen1, GbE, COM and MezIO™ interface in its restricted footprint. It also leverages cutting-edge M.2 NVMe SSD technology for over 2000MB/s disk read/ write speed or Intel® Optane™ memory for the ultimate system acceleration. Neousys Nuvo-7160GC is the ideal solution for emerging edge computing by combining exceptional CPU and GPU performances.
| Manufacturer | Neousys |
|---|---|
| Processor | Supporting Intel® 8th-Gen Coffee Lake 6-core CPU (LGA1151 socket, 35W/ 65W TDP)|- Intel® Core™ i7-8700/ i7-8700T|- Intel® Core™ i5-8500/ i5-8500T|- Intel® Core™ i3-8100/ i3-8100T|- Intel® Pentium® G5400/ G5400T|- Intel® Celeron® G4900/ G4900T |
| Graphics | Integrated Intel® UHD Graphics 630 |
| Memory | Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots) |
| Chipset | Intel® Q370 Platform Controller Hub |
| AMT | Supports AMT 12.0 |
| PoE | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget USB |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution|1x DVI-D connector, supporting 1920 x 1200 resolution|1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| PCI Express | 1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette for installing an NVIDIA® graphics card up to 120W TDP (Max. graphics card dimension is 188 mm(L) x 121 mm(W), dual slot allocation) |
| M.2 | 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module|1x M.2 2280 M key socket (PCIe Gen3/ x4) for NVMe SSD or Intel® Optane™ memory installation |
| SATA HDD | 2x internal SATA port for 2.5" HDD/SSD installation, supporting RAID 0/ 1 |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| DC Input | 1x 3-pin pluggable terminal block for 8~35VDC DC input |
| Remote Ctrl. & Status Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Dimension | 240 mm (W) x 225 mm (D) x 111 mm (H) |
| Weight | 4.5 Kg (including CPU, GPU, memory and HDD) |
| Mounting | Wall-mount mounting bracket |
| Operating Temperature | With 35W CPU and 120W GPU|-25°C ~ 60°C **|With 65W CPU and 120W GPU|-25°C ~ 60°C */** (configured as 35W TDP)|-25°C ~ 50°C */** (configured as 65W TDP) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
| CPU Cores | 6, 8 |
| CPU Family | Intel Core |
| Base CPU Speed | 2.1 to 3.0 GHz |
| Video Output | Display Port, DVI-D, VGA |
| LAN Ports | 5-8 |
| Serial Ports | 3-4 |
| USB 3.1 | 5-8 |
| Max Memory | 64 GB |
| Operating System | Windows 10, Linux |
| Effective Memory Speed | 2400 MHz, 2666 MHz |
| Form Factor | Fanless |
| Native Storage Type | 2.5" SSD, mSATA Full, M.2 NVMe SSD |
| On/Ignition | Remote On/Off |
