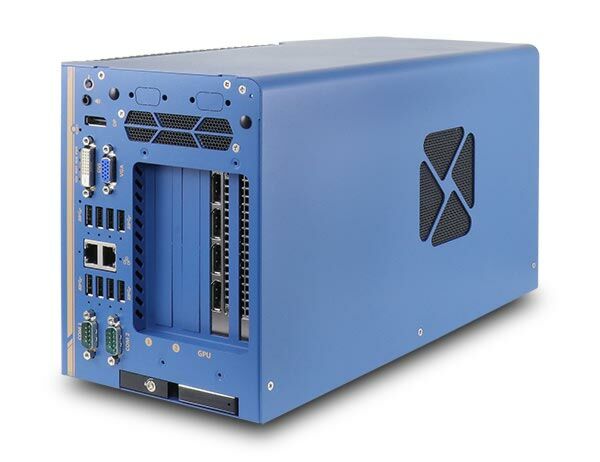

Nuvo-8108GC-QD: Industrial-grade Edge AI Platform Supporting NVIDIA RTX A6000/A4500 GPUs
Nuvo-8108GC-QD SeriesStarting at $1,960.00
Main Features
- Supports NVIDIA® RTX A6000/ A4500 GPU cards
- Supports Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5 LGA1151 CPU
- Up to 128GB ECC/ non-ECC DDR4 2133 (4x SODIMM)
- One x16 (8-lanes), one x8 (4-lanes), Gen3 PCIe slots for add-on cards
- Dedicated GPU card bracket
- 8~48V wide-range DC input with built-in ignition power control
- Patented thermal design for -25°C to 60°C rugged operation*
- Patented damping brackets* to withstand 3 Grms vibratio
Frequently Asked Questions
The system uses an LGA1151 socket and supports Intel® Xeon® E and 9th/8th-Gen Core™ processors, including Xeon E 2176G, 2278GE, 2278GEL, i7-9700E, i7-9700TE, i7-8700, i7-8700T, i5-9500E, i5-9500TE, i5-8500, i5-8500T, i3-9100E, i3-9100TE, i3-8100, and i3-8100T. It uses the Intel® C246 Platform Controller Hub chipset.
The platform is designed for NVIDIA® RTX A6000 and RTX A4500 GPU cards, connected via an x16 PEG PCIe port. It includes a dedicated GPU card bracket and Neousys' patented damping brackets to secure the card under shock and vibration.
The Nuvo-8108GC-QD supports up to 128 GB of ECC or non-ECC DDR4 2133 SDRAM across four SODIMM slots.
The system accepts an 8~48V wide-range DC input through two 4-pin pluggable terminal blocks, with built-in ignition power control.
Operating temperature depends on CPU TDP configuration and GPU installation: -25°C to 60°C with a 35W CPU and one NVIDIA® RTX A6000/A4500 GPU, -25°C to 60°C when a 65W+ CPU is configured in 35W TDP mode, and -25°C to 50°C when configured in 65W TDP mode. Storage temperature is -40°C to 85°C. For i7-9700/8700 running at 65W mode, the highest operating temperature is limited to 50°C and thermal throttling may occur under sustained full load; CPU power mode can be configured in the BIOS. For high-temperature operation, a wide-temperature HDD or SSD is required.
The system provides one hot-swappable HDD tray for 2.5" HDD/SSD installation, one internal SATA port for a 2.5" HDD/SSD supporting RAID 0/1, one M.2 2280 M key socket (PCIe Gen3 x4) for an NVMe SSD or Intel® Optane™ memory, and two full-size mSATA ports (muxed with mini-PCIe).
Expansion options include one PCIe x16 slot (8 lanes, Gen3), one PCIe x8 slot (4 lanes, Gen3), one M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE modules, and two full-size mini-PCIe sockets.
The system includes 1x Gigabit Ethernet port (Intel® I219-LM), 1x VGA port (up to 1920x1200), 1x DVI-D port (up to 1920x1200), 1x DisplayPort (up to 4096x2304), 2x software-programmable RS-232/422/485 serial ports (COM1/COM2), 4x USB 3.1 Gen2 ports, 1x USB 2.0 port (internal, for dongle use), and 1x 3.5mm audio jack for mic-in and speaker-out.
The Nuvo-8108GC-QD measures 170.2 mm (W) x 360 mm (D) x 201.8 mm (H) and weighs 5.8 kg.
The system is rated for operating vibration per MIL-STD-810G Method 514.6 Category 4, operating shock per MIL-STD-810G Method 516.6 Procedure I Table 516.6-II, humidity of 10%~90% non-condensing, and EMC compliance with CE/FCC Class A according to EN 55024 & EN 55032.
How-to Guides
- Locate the hot-swappable HDD tray on the front of the unit.
- Remove the tray from the chassis.
- Install a 2.5" HDD or SSD into the tray.
- Re-insert the tray into the hot-swap bay.
Note: An internal SATA port is also available for a 2.5" HDD/SSD, and it can be configured with the tray-mounted drive for RAID 0/1.
- Confirm the power source is within the supported 8~48V DC wide-range input.
- Connect the DC supply leads to one of the two 4-pin pluggable terminal blocks located on the rear panel.
- The system includes built-in ignition power control for automotive/vehicle power scenarios.
- Enter the system BIOS at startup.
- Locate the CPU power configuration setting.
- Select either 35W or 65W TDP mode depending on the CPU installed and the operating environment.
- Note that selecting 65W mode limits the highest guaranteed operating temperature to 50°C, and thermal throttling may occur under sustained full-load conditions for i7-9700/8700 processors.
- Install the NVIDIA® RTX A6000 or A4500 GPU card into the x16 PEG PCIe slot.
- Attach the dedicated GPU card bracket to hold the card firmly in place.
- Use Neousys' patented damping brackets to secure the assembly against shock and vibration.
Nuvo-8108GC-QD, the latest member of the well-received Nuvo-8108GC series, is a rugged edge AI platform specially designed for NVIDIA® RTX A6000 and RTX A4500 Ampere GPU cards. The GPUs offer tremendous computing power and product longevity, to take GPU-accelerated edge AI applications such as autonomous driving, vision inspection and intelligent video analytics to the next level of reliability and availability.
Powered by an Intel® Xeon® E or 9th/ 8th-Gen Core™ (up to 8-core/ 16-thread) CPU with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory, it has a strong foundation for building a powerful AI edge computing platform. It has a refined thermal dissipation design to optimize GPU performance in high-temperature environments. Additionally, Nuvo-8108GC-QD comes with a dedicated mounting bracket for RTX A6000/ A4500 to keep the GPU card firmly secured in the PCIe slot. Along with Neousys’ patented damping brackets*, it ensures rock-solid operation in intensive shock and vibration conditions.
The addition of RTX A6000/ A4500 to Neousys’ GPU computer portfolio realizes an edge AI platform with system-level longevity and up to 28 TFLOPS computing power. Combining proven power design, guaranteed thermal performance, and superior mechanical ruggedness, Nuvo-8108GC-QD brings unprecedented longevity, computing power, flexibility and reliability to edge AI computing.
| Manufacturer | Neousys |
|---|---|
| Processor | Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) Xeon E 2176G/ 2278GE (8C/16T) / 2278GEL (8C/16T)
i7-9700E, i7-9700TE, i7-8700, i7-8700T
i5-9500E, i5-9500TE, i5-8500, i5-8500T
Independent NVIDIA® RTX A6000/ A4500 GPU via x16 PEG port, or integrated Intel® UHD graphics 630i3-9100E, i3-9100TE, i3-8100, i3-8100T |
| Graphics | Independent NVIDIA® RTX A6000/ A4500 GPU via x16 PEG port, or integrated Intel® UHD graphics 630 |
| Memory | Up to 128 GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots) |
| Chipset | Intel® C246 Platform Controller Hub |
| AMT | Supports AMT 12.0 |
| Video Port | 1x VGA , supporting 1920 x 1200 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| PCI Express | 2x PCIe x16 slot@Gen3, 8-lanes 2x PCIe x8 slots@Gen3, 4-lanes |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation |
| Mini PCI-E | 2x full-size mini PCI Express socket |
| SATA | 1x hot-swappable HDD tray for 2.5” HDD/ SSD installation 1x Internal SATA port for 2.5” HDD/ SSD installation, |
| mSATA | 2x full-size mSATA port (mux with mini-PCIe) |
| DC Input | 2x 4-pin pluggable terminal block for 8~48V DC input with ignition control |
| Dimension | 170.2 mm (W) x 360 mm (D) x 201.8 mm (H) |
| Weight | 5.8 kg |
| Mounting | Neousys’ patented damping brackets |
| Operating Temperature | with 35W CPU and one NVIDIA® RTX A6000/ A4500 GPU - 25°C ~ 60°C *** with >= 65W CPU and one NVIDIA® RTX A6000/ A4500 GPU - 25°C ~ 60°C **/ *** (configured as 35W TDP mode) - 25°C ~ 50°C **/ *** (configured as 65W TDP mode) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/ FCC Class A, according to EN 55024 & EN 55032 |
| CPU Family | Intel Xeon |
| Video Output | Display Port, DVI-D, VGA |
| Serial Ports | 1-2 |
| USB 2.0 | 1-2 |
| USB 3.1 | 1-4, 5-8 |
| Max Memory | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB |
| Native Storage Type | mSATA Full, M.2 SATA S80 |
