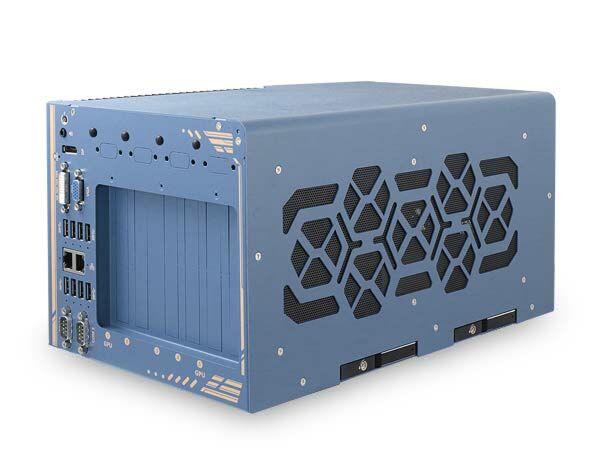

Nuvo-8208GC: Ruggedized Edge AI GPU Computing Platform Supporting Dual 250W NVIDIA Graphics Cards

Nuvo-8208GC Series

Starting at $2,695.00

The Nuvo-8208GC is a rugged industrial PC designed for various AI applications. It is powered by Intel® Xeon® E or 8th/ 9th-Gen Core™ 8-core/ 16-thread CPUs and is equipped with a Intel C246 chipset offering support for 128 GB ECC or non-ECC DDR4 RAM. The Nuvo-8208GC is capable of running off a vehicle battery for autonomous driving or other sources for security and vision inspection.

Main Features:

  • Supports dual 250W NVIDIA® graphics cards up to 28 TFLOPS in FP32
  • Supports Intel® Xeon® E or 8th-Gen Core™ i7/i5 LGA1151 CPU
  • Up to 128GB ECC/non-ECC DDR4 2133 (4x SODIMM)
  • Two x8, one x4, Gen3 PCIe slots for add-on cards
  • Two hot-swappable 2.5” SATA HDD/ SSD with RAID 0/ 1 support
  • 8~35V wide-range DC input with built-in ignition power control
  • Patented thermal design for -25°C to 60°C rugged operation
  • Patented damping brackets to withstand 1 Grms vibration



PDF Document - Nuvo-8208GC Data Sheet
Nuvo-8208GC Data Sheet
(Size: 875.9 KB)

System Configuration


* Selection required

Your Configuration
Nuvo industrial PC
Nuvo-8208GC: Ruggedized Edge AI GPU Computing Platform Supporting Dual 250W NVIDIA Graphics Cards

In stock

$2,695.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

Nuvo-8208GC is the world’s first dual GPU platform with industrial-grade design and in-vehicle features. Designed specifically to support two highend 250W NVIDIA® graphics cards, it offers tremendous GPU power up to 28 TFLOPS in FP32 for emerging GPU-accelerated edge computing, such as autonomous driving, vision inspection and surveillance/ security. Nuvo-8208GC is powered by Intel® Xeon® E or 8th/ 9th-Gen Core™ 8-core/ 16-thread CPUs coupled with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory. The system incorporates two hot-swappable 2.5" trays for easy HDD/ SSD replacement and an M.2 2280 NVMe socket for the ultimate disk performance. Its front-accessible GbE and USB 3.1 Gen1/ Gen2 ports feature screw-lock mechanisms for securing cable connections. In addition to the dual x16 PCIe slots for GPU installation, Nuvo-8208GC has two other x8 PCIe slots and one x4 PCIe slot for expansion cards to extend function sets like data collection, analytics and communication. Nuvo-8208GC has a brand new power delivery design to accept 8~35V wide-range DC input and to handle heavy power requirements from dual 250W GPUs. Along with built-in ignition control, it’s feasible to deploy it on a vehicle and directly power it via the car's power system. Mechanical wise, Nuvo-8208GC incorporates Neousys’ patented heat dissipation design*, damping brackets* and patent-pending GPU press bar, making it steady and rock-solid in various conditions. The Nuvo-8208GC is Neousys' response to the never-ending demand of TFLOPS in industrial GPU platforms. With industrial-grade power, thermal and mechanical design, it pushes versatile AI inference applications from laboratories to field applications, where reliability matters.
Specifications
ManufacturerNeousys
Short Description The Nuvo-8208GC is a rugged industrial PC designed for various AI applications. It is powered by Intel® Xeon® E or 8th/ 9th-Gen Core™ 8-core/ 16-thread CPUs and is equipped with a Intel C246 chipset offering support for 128 GB ECC or non-ECC DDR4 RAM. The Nuvo-8208GC is capable of running off a vehicle battery for autonomous driving or other sources for security and vision inspection.
ProcessorSupporting Intel® Xeon® E and 8th-Gen CPU (LGA1151 socket)|Intel® Xeon® Processor E-2176G|Intel® Xeon® Processor E-2124G|Intel® Core™ i7-8700/i7-8700T|Intel® Core™ i5-8500/ i5-8500T
GraphicsIndependent GPU via x16 PEG port, or integrated Intel® UHD Graphics 630
MemoryUp to 128 GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots)
ChipsetIntel® C246 platform controller hub
AMTSupports AMT 12.0
Ethernet StandardIntel I219-LM I210-IT
Video Port1x VGA connector, supporting 1920 x 1200 resolution|1x DVI-D connector, supporting 1920 x 1200 resolution|1x DisplayPort connector, supporting 4096 x 2304 resolution
Audio1x Speaker Out
PCI Express2x PCIe x16 slot@Gen3, 8-lanes|2x PCIe x8 slots@Gen3, 4-lanes|1x PCIe x4 slot@Gen3, 1-lane
M.21x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module|1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSDor Intel® memory installation
Mini PCI-E2x full-size mini PCI Express socket
SATA2x hot-swappable HDD trays for 2.5" HDD/ SSD installation
mSATA2x full-size mSATA port (mux with mini-PCIe)
DC Input2x 4-pin pluggable terminal block for 8~35V DC input and 1x 3-pinignition control
Dimension235 mm (W) x 360 mm (D) x 186 mm (H)
MountingWall-mount with damping brackets
Operating Temperature-25°C ~ 60°C with 100% CPU/ GPU loading
Storage Temperature-40°C ~ 85°C
Humidity10%~90%, non-condensing
VibrationOperating, MIL-STD-810G, Method 514.6, Category 4
ShockOperating, MIL-STD-810G, Method 516.6, Procedure I,Table 516.6-II
EMCCE/ FCC Class A, according to EN 55024 & EN 55032
CPU Cores6, 8
CPU FamilyIntel Core, Intel Xeon
Base CPU Speed2.1 to 3.0 GHz, 3.1 to 3.5 GHz
Video OutputDisplay Port, DVI-D, VGA
LAN Ports1-4
Serial Ports1-2
USB 3.15-8
Max Memory128 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed2400 MHz
Form FactorShoebox
Native Storage Type2.5" SSD, M.2 NVMe SSD, Hot Swap Capable
