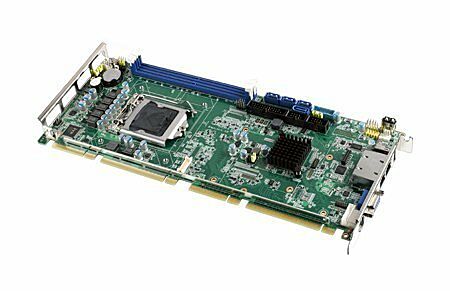

LGA1151 H110 FSHB DDR4/dual LAN/dual di
PCE-5029G2-00A1E $415.00
Main Features:
- Supports Intel Core i7/i5/i3 LGA1151 processors with H110
- Dual Channel (Non-ECC) DDR4 1866/2133 MHz up to 32 GB
- Supports PCIE 3.0, USB 3.0, SATA 3.0
- Supports CRT and DVI-D/DP (cable optional) display
- Supports Advantech LPC modules
- Supports SUSIAccess and Embedded Software APIs
LGA1151 Intel Core i series SHB DDR4/SATA 3.0/USB3.0/Dual GbE/Dual Displays
| Manufacturer | Advantech |
|---|---|
| CPU Cores | 4 |
| CPU Family | Intel Core |
| Base CPU Speed | 2.1 to 3.0 GHz, 3.1 to 3.5 GHz, Over 3.5 GHz |
| Video Output | Display Port, DVI-D, VGA |
| LAN Ports | 1-4 |
| Serial Ports | 1-2 |
| USB 3.0 | 1-2 |
| Max Memory | 32 GB |
| Operating System | Windows 7, Windows 10, Linux |
| Effective Memory Speed | 1866 MHz, 2400 MHz |
