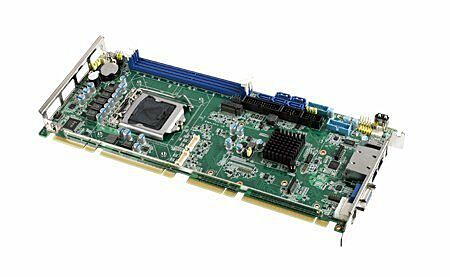

PCE-7129G2-00A1E Advantech PCE-7129G2 6th Generation Intel Core‚ processor-based Single Board Computer

Starting at $650.00

Main Features:

  • Supports Intel Xeon E3-1200v5 series, Core i7/i5/i3 LGA1151 processors with C236
  • Dual Channel (ECC/Non-ECC) DDR4 2133/1600 up to 16 GB
  • Supports PCIE 3.0, M.2, USB 3.0, SATA3.0, SW Raid 0, 1, 5, 10
  • Supports CRT and 2 x DVI-D/DP(cable optional) display
  • Supports out-of-band remote management with AMT10 and IPMI
  • Supports Advantech LPC modules
  • Supports SUSIAccess and Embedded Software APIs
PCE-7129G2-00A1E Datasheet
(Size: 771.6 KB)
Core System Configuration
PCE-7129G2-00A1E

* Required Fields

Your Configuration
PCE-7129G2-00A1E Advantech PCE-7129G2 6th Generation Intel Core‚ processor-based Single Board Computer
Advantech PCE-7129G2 6th Generation Intel Core‚ processor-based Single Board Computer

In stock

Add to Favorites

$650.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

Specifications
Processor Intel® Xeon® E3-1200 v5|Core™ i3/i5/i7 (LGA1151)
GraphicsIntel HD graphics Integrated
Memory2 x 288-pin DDR4 1866/2133 MHz up to 32 GB
ChipsetC236
PCI Express 1 (or 2 X PCIe x 8) X PCI Express x 16 |1 X PCI Express x 4 | 4 XPCI,ethernet:LAN1: Intel® I219LM 10/100/1000 Mbps RJ45,| LAN 2 Intel® I210 10/100/1000 Mbps RJ45
SATA5 x SATAIII (RAID 0, 1, 5, 10)
Dimension338mm x 122 mm (13.3" x 4.8")
Weight0.5 kg
Storage Temperature-40°C ~ 85°C,vibration-2 Grms
EMCCE, FCC
CPU Cores2, 4
CPU FamilyIntel Core, Intel Pentium, Intel Xeon
Base CPU Speed2.1 to 3.0 GHz, 3.1 to 3.5 GHz, Over 3.5 GHz
Video OutputDisplay Port, DVI-D, VGA
LAN Ports1-4
Serial Ports1-2
USB 2.07+
USB 3.03-4
Max Memory32 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed1866 MHz, 2400 MHz
ManufacturerAdvantech
