PCIe-2221BP Dual Port Fiber 10GbE PCIe Server Adapter with Intel C710-BM2
PCIe-2221BP-00A1EAn Alternative Product May Be Available!
Contact us for more information at 866-412-6278 or enter your information below.
- Intel® X710 Controller
- 2 10GbE SFP+ ports
- PCIe Gen.3 x8 host interface
- Supports LAN Bypass
- Low profile (half length) form factors
- Supports 10GBASE-SR and 10GBASE-LR modules
- Supports SR-IOV based virtualization

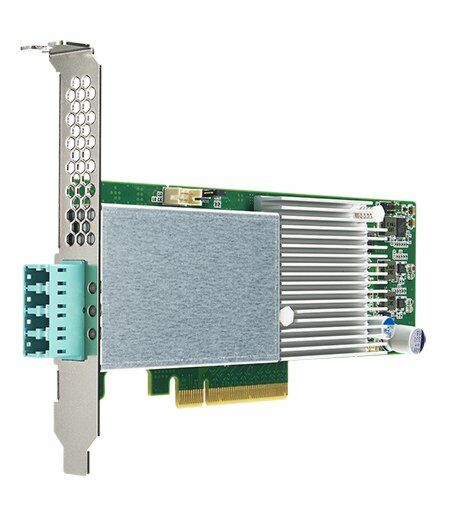

Advantech’s PCIE-2221BP is a low-profile dual port 10GbE PCI Express server adapter based on the Intel® X710-BM2 Ethernet controller. By supporting a PCI Express gen. 3 x8 host interface, this adapter supports fiber interfaces with advanced LAN bypass. PCIE-2221BP is compliant with PCIe card form factor and can be used on Advantech network appliance platforms. Improved support for virtualization, including VMDq, SR-IOV, and VEB, makes the PCIE-2221BP a perfect fit for virtualized environments and applications with network overlays. PCIE-2221BP can be used to achieve high densities of network interfaces on servers and platforms for networking as well as industrial applications.
