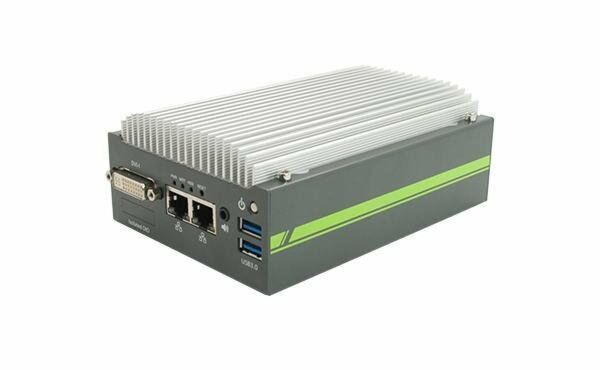

Neousys Ultra-compact Atom Bay Trail-I Fanless Embedded Controller with PoE and USB 3.0

POC-200

This product is no longer available.

An Alternative Product May Be Available!

Contact us for more information at 866-412-6278 or enter your information below.

Main Features:

  • Ultra-compact 150 mm x 100 mm foot-print
  • Intel Atom E3845 1.91GHz Quad-core processor
  • Rugged, -20 C° to 70 C° fanless operation
  • Two 802.3at (25.5W) Gigabit PoE ports
  • Three USB 3.0 ports
  • Standard 2.5 inch SATA HDD/SSD accommodation
  • Up to two RS-232/422/485 ports and two RS-232 ports
  • Isolated 4DI/4DO included



PDF Document - POC-200 Series Data Sheet
POC-200 Series Data Sheet
(Size: 1.2 MB)
POC-200 is Neousys’ breakthrough ultra-compact controller series. Inheriting the concept of favorable POC-100, POC-200 series features greater computing power and more versatile functions in its 3.5” HDD footprint. The new Intel® Atom™ Bay Trail processor offers dramatic arithmetic and graphics performance improvement. With Atom™ E3845 quad-core processor, POC-200 can deliver more than 200% performance over previous D525/ D2550 platforms. It also features comprehensive I/O interfaces to make use of the advanced computing power. Two Gigabit Ethernet and three USB3.0 ports are integrated so you can connect GigE/ USB3.0 cameras for vision applications. Its IEEE 802.3at PoE+ option is capable of supplying 25.5W each port to power IP cameras for surveillance applications. POC200 also features up to four COM ports and digital I/O for general-purpose industrial applications. Its’ compact size is another attractive feature of POC-200. The 15 x 10 cm (6”x4”) footprint allows installation of POC-200 in confined spaces. While its -25°C to 70°C wide temperature operating capability eliminates the restriction for deployment environment. Neousys provides derivative models with different CPU and I/O configurations so you can always find a POC-200 that is ideal for your application.
Specifications
ManufacturerNeousys
ProcessorIntel Atom Bay Trail-I E3845 Quad-core processor
GraphicsIntegrated Intel HD Graphics
Memory1x SO-DIMM socket for DDR3L-1333
PoEIEEE 802.3at (25.5W PSE) (POC-200 only)
Video Port1x DVI-I connector for both analog RGB and DVI/HDMI outputs
Audio1x Speaker-out
DIOOptional 4-CH isolated DI + 4-CH isolated DO
SATA HDD1x SATA ports with 2.5" HDD/SSD bracket
DC InputBuilt-in 8~35V DC input
Dimension149mm (W) x 105 mm (H) x 57 mm (D)
Input Connector1x 2-pin pluggable terminal block for DC input
MountingWall-mounting (standard) or DIN-Rail mounting (optional)
Operating Temperature-25 C ~ 70 C with SSD , 100% CPU loading * / **-10 C ~ 50 C with HDD, 100% CPU loading * / **|-25 C ~ 70 C with SSD , 100% CPU loading * / **|-10 C ~ 50 C with HDD, 100% CPU loading * / **
Storage Temperature-40 C ~ 85 C
Humidity10%~90% , non-condensing
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64)
ShockOperating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
EMCCE/FCC Class A, according to EN 55022 & EN 55024
CPU Cores4
CPU FamilyIntel Atom
Base CPU SpeedUnder 2.0 Ghz
Video OutputDVI-I
PoE Ports2
LAN Ports1-4
Serial Ports3-4
USB 2.01-2
USB 3.03-4
Max Memory8 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed< 1600 HHz
Form FactorFanless
Native Storage Type2.5" SSD
