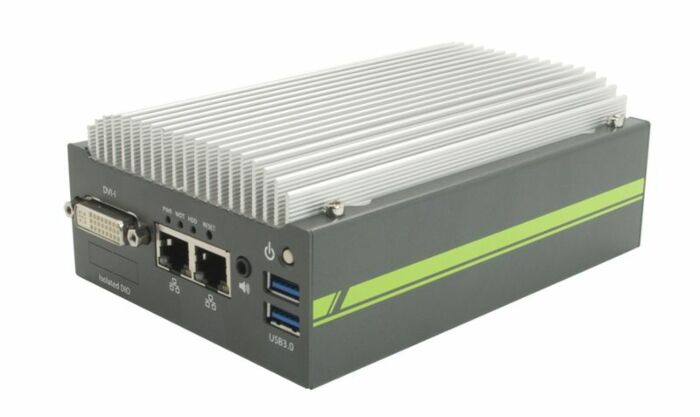

Neousys Intel Atom E3825 Dual-Core fan-less Embedded Controller with 2x GigE ports, 2x COM Port
POC-222An Alternative Product May Be Available!
Contact us for more information at 866-412-6278 or enter your information below.
Main Features:
- Ultra-compact 150 mm x 100 mm foot-print
- Intel Atom E3845 1.91GHz Dual-core processor
- Rugged, -20 C° to 70 C° fanless operation
- Two 802.3at (25.5W) Gigabit PoE ports
- Three USB 3.0 ports and 1x USB 2.0 port
- Standard 2.5 inch SATA HDD/SSD accommodation
- Two RS-232 ports
POC-200 is Neousys’ breakthrough ultra-compact controller series. Inheriting the concept of favorable POC-100, POC-200 series features greater computing power and more versatile functions in its 3.5” HDD footprint. The new Intel® Atom™ Bay Trail processor offers dramatic arithmetic and graphics performance improvement. With Atom™ E3845 quad-core processor, POC-200 can deliver more than 200% performance over previous D525/ D2550 platforms. It also features comprehensive I/O interfaces to make use of the advanced computing power. Two Gigabit Ethernet and three USB3.0 ports are integrated so you can connect GigE/ USB3.0 cameras for vision applications. Its IEEE 802.3at PoE+ option is capable of supplying 25.5W each port to power IP cameras for surveillance applications. POC200 also features up to four COM ports and digital I/O for general-purpose industrial applications. Its’ compact size is another attractive feature of POC-200. The 15 x 10 cm (6”x4”) footprint allows installation of POC-200 in confined spaces. While its -25°C to 70°C wide temperature operating capability eliminates the restriction for deployment environment. Neousys provides derivative models with different CPU and I/O configurations so you can always find a POC-200 that is ideal for your application.
Manufacturer | Neousys |
---|---|
Processor | Intel Atom Bay Trail-I E3845 Quad-core processor |
Graphics | Integrated Intel HD Graphics |
Memory | 1x SO-DIMM socket for DDR3L-1333 |
PoE | IEEE 802.3at (25.5W PSE) (POC-200 only) |
Video Port | 1x DVI-I connector for both analog RGB and DVI/HDMI outputs |
Audio | 1x Speaker-out |
DIO | Optional 4-CH isolated DI + 4-CH isolated DO |
SATA HDD | 1x SATA ports with 2.5" HDD/SSD bracket |
DC Input | Built-in 8~35V DC input |
Dimension | 149mm (W) x 105 mm (H) x 57 mm (D) |
Input Connector | 1x 2-pin pluggable terminal block for DC input |
Mounting | Wall-mounting (standard) or DIN-Rail mounting (optional) |
Operating Temperature | -25 C ~ 70 C with SSD , 100% CPU loading-10 C ~ 50 C with HDD, 100% CPU loading|-25 C ~ 70 C with SSD , 100% CPU loading|-10 C ~ 50 C with HDD, 100% CPU loading |
Storage Temperature | -40 C ~ 85 C |
Humidity | 10%~90% , non-condensing |
Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64) |
Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
EMC | CE/FCC Class A, according to EN 55022 & EN 55024 |
CPU Cores | 2 |
CPU Family | Intel Atom |
Base CPU Speed | Under 2.0 Ghz |
Video Output | DVI-I |
LAN Ports | 1-4 |
Serial Ports | 1-2 |
USB 2.0 | 1-2 |
USB 3.0 | 3-4 |
Max Memory | 8 GB |
Operating System | Windows 7, Windows 10, Linux |
Effective Memory Speed | < 1600 HHz |
Form Factor | Fanless |
Native Storage Type | 2.5" SSD, Hot Swap Capable |
