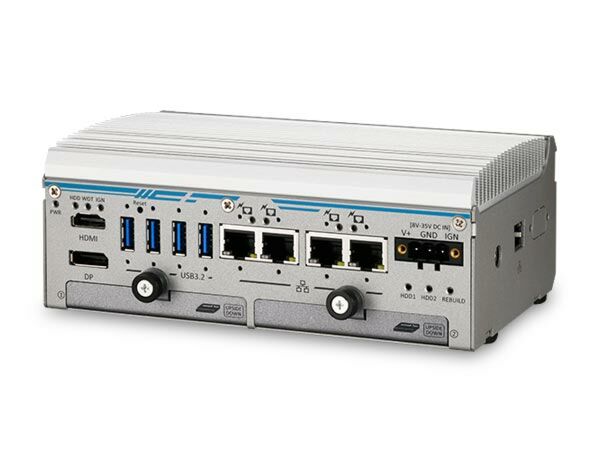

POC-764VR: Intel Core i3-N305 Fanless Surveillance System with 4x PoE+ and 2x 2.5” SSD Supporting RAID 0/1
POC-764VR SeriesStarting at $1,125.00
- Intel Alder Lake Core i3-N305 processor 15W with 8 E-Cores
- Up to 16GB DDR5-4800 SODIMM
- 4x GbE ports PoE+ and 1x 2.5GbE LAN Port
- 4x USB 3.2 Gen2 ports with screw-lock
- 1x M.2 2280 M key socket & 2x MiniPCIe socket with micro SIM card
- 2x 2.5” SSD support RAID 0/1/JBOD
- -10 °C to 70 °C temperature operation
- 8-35V DC input with built-in ignition power control
The POC-764VR is Neousys' new ultra-compact surveillance computer platform. Built on the foundation of the POC-700 series, it offers advanced RAID storage and enhanced networking capabilities, making it ideal for surveillance, security, and smart-city applications. The system ensures data redundancy, reliability, and seamless connectivity in critical environments.
Featuring four Gigabit PoE+ ports and an ignition function, the POC-764VR can connect up to four IP cameras for both mobile and stationary surveillance applications. Its RJ45 locking mechanism guarantees reliable Ethernet connectivity in dynamic environments. It has a built-in hardware RAID controller for video recording that supports dual 2.5" HDD/SSDs in RAID 0/1 configuration, enhancing data redundancy or providing extensive storage capacity. A 2.5 GbE port also offers flexible data exchange with backbone infrastructure, while two mini-PCIe sockets support wireless WiFi, LTE/5G, or CAN bus devices.
The POC-764VR is powered by an Intel® Alder Lake CoreTM i3-N305 8-core/8-thread processor with 32EUs UHD Graphics. This processor delivers significant computing performance and enables real-time AI inference through Intel OpenVINO. Its compact size, PoE+ capabilities, and RAID storage make the POC-764VR an ideal platform for surveillance, public safety monitoring, and asset management applications.
| Manufacturer | Neousys |
|---|---|
| Short Description | The POC-764VR is Neousys' new ultra-compact surveillance computer platform. Built on the foundation of the POC-700 series, it offers advanced RAID storage and enhanced networking capabilities, making it ideal for surveillance, security, and smart-city applications. The system ensures data redundancy, reliability, and seamless connectivity in critical environments. |
| Processor | Intel Alder Lake CoreTM i3-N305 processor(8C/8T, 1.8/3.8 GHz, 15W TDP) |
| Graphics | Integrated Intel UHD Graphics with 32EUs |
| Memory | Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket) |
| PoE | IEEE 802.3at PoE+ on port #1~ 4 |
| Video Port | 1x DP++, Supporting 4096 x 2160 resolution 1x HDMI1.4b, Supporting 3840 x 2160 30Hz |
| DIO | 4-CH isolated DI and 4-CH isolated DO |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x1) for NVMe SSD storage (supports SATA signal) |
| Mini PCI-E | 2x full-size mini PCI Express socket with internal micro SIM socket |
| SATA | 2x internal SATA port for 2.5” SSD installation, supporting hardware RAID 0/ 1/ JBOD (with hot-swappable functionality in RAID1 mode only) |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 35V DC input with built-in ignition power control |
| Dimension | 175.8mm (W) x 115.5mm (D) x 67.9mm (H) |
| Weight | 1.45 kg |
| Mounting | DIN-rail mount (standard) or wall-mount (optional) |
| Operating Temperature | With FAN Kit: -10°C ~ 70°C 1 2 1 For sub-zero and over 55°C operating temperature, a wide temperature Solid State Disk (SSD) is required. |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
