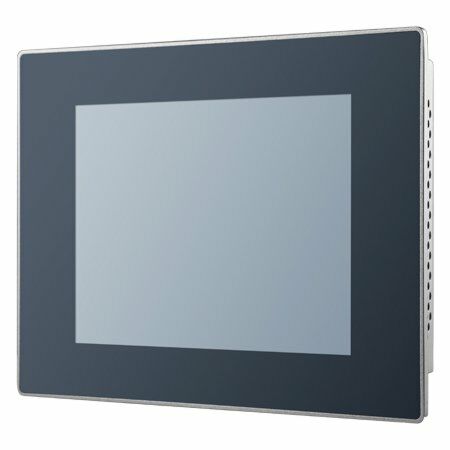

Intel Celeron N2807 fanless 6.5" Panel

PPC-3060S-N80AU

Starting at $815.00

The PPC-3060S is a fanless panel pc capable of various industrial applications. It has an IP-65 certified panel and a durable 5-wire resistive touch screen. The compact fanless design allows it to perform in many industrial environments without any disruption. This panel pc is extremely responsive with its quick Celeron processor and 4GB of DDR3L RAM.

Main Features:

  • Industrial 6.5" TFT VGA LCD (LED Backlight)
  • Durable 5-wire Resistive Touch Screen
  • Embedded Intel Celeron processor, dual core N2807 1.58 GHz on board
  • System memory up to 4 GB DDR3L SDRAM
  • Compact Fanless Design
  • True-flat with IP65 certified front panel protection
  • Supports Full-size Mini PCIe Expansion
  • Supports USB 3.0
  • Supports Windows Embedded and Android
  • Supports VESA 75
PDF Document - PPC-3060S-N80AU Datasheet
PPC-3060S-N80AU Datasheet
(Size: 474.6 KB)

System Configuration


* Selection required

Your Configuration
PPC-3060S-N80AU Intel Celeron N2807 fanless 6.5" Panel
Intel Celeron N2807 fanless 6.5" Panel

In stock

Add to Favorites

$815.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

PDF Document - PPC-3060S-N80AU Datasheet
PPC-3060S-N80AU Datasheet
(Size: 474.6 KB)
Specifications
ManufacturerAdvantech
Short Description The PPC-3060S is a fanless panel pc capable of various industrial applications. It has an IP-65 certified panel and a durable 5-wire resistive touch screen. The compact fanless design allows it to perform in many industrial environments without any disruption. This panel pc is extremely responsive with its quick Celeron processor and 4GB of DDR3L RAM.
ProcessorIntel® Celeron® N2807, Dual core 1.58 GHz
PCI Express1 x Full size Mini PCIe slot
Mini PCI-E1 x Full size Mini PCIe slot
SATA1 x 2.5" SATA Bay (Optional)
mSATA1 x mSATA Bay (default)
2.5" Drive1 x 2.5" SATA bay (optional; requires a bracket module for installation)
LCD LifespanGreater than 35 million touches in one location without failure
Vibration Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64
CPU Cores2
CPU FamilyIntel Celeron
Base CPU SpeedUnder 2.0 Ghz
Brightness400+ nit
Resolution640 x 480
Screen Size5-7"
LAN Ports1-4
Serial Ports1-2
USB 2.01-2
USB 3.01-2
Max Memory4 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed< 1600 HHz
Form FactorPanel PC
Native Storage Type2.5" SSD, mSATA Full
Memory1 x SO-DIMM, DDR3L 1333, Max 4 GB
Watchdog TImer255 timer levels; setup by software
Display Type6.5" TFT LCD (LED Backlight)
Max Resolution640 x 480
Backlight Lifetime50,000 hours (typical)
Light Transmission

80±5% at 550 nm wavelength

Humidity10 ~ 95% RH @ 40°C, non-condensing
Operating Temperature0°C ~ 50°C (32°F ~ 122°F) with SSD|0°C ~ 40°C (32°F ~ 104°F) with HDD
Storage Temperature-40 ~ 60°C (-40~140°F)
EMCBSMI, CE, FCC Class B
Weight1.5 kg ( 3.30 lb)
Dimension197.6mm x 150.6mm x 41mm (7.8" x 5.9" x 1.6")
