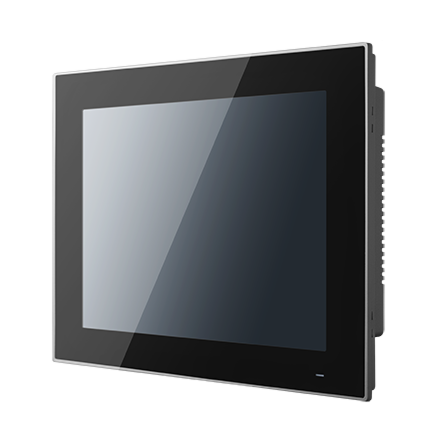

PPC-3120S: Fanless 12.1" Panel PC with Intel Celeron N2930 Processor
PPC-3120SStarting at $1,235.00
The PPC-3120S is a high-value, ultra-slim panel PC equipped with a 12.1" XGA TFT LCD, and low-power Intel Celeron N2930, 1.83 GHz, processor to provide high-performance computing in a compact and fanless system.
- Industrial-grade 12.1" XGA TFT LCD with 30K backlight lifetime
- Durable true-flat touchscreen with 5-wire resistive touch control
- Intel Celeron N2930 quad-core, 1.83 GHz, processor
- Up to 8 GB DDR3L SDRAM
- 1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 1 x USB 3.0
- Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel
- Supports E-Eye monitoring and protection
- Supports expansion via full-size mini PCIe
- Supports Windows Embedded and Android OS
- Supports VESA 75 x 75 mounting holes
The PPC-3120S is a high-value, ultra-slim panel PC equipped with a 12.1" XGA TFT LCD, and low-power Intel Celeron N2930, 1.83 GHz, processor to provide high-performance computing in a compact and fanless system. For high durability and functionality, the PPC-3120S features an IP66-rated front panel, true-flat 5-wire resistive touchscreen, two serial ports, three USB ports, and two GbE LAN ports, making it suitable for diverse industrial applications. To provide further system monitoring and protection capabilities, e-Eye technology is provided at the rear of the panel PC for indicating the system operating status to facilitate detection and analysis.
| Manufacturer | Advantech |
|---|---|
| Short Description | The PPC-3120S is a high-value, ultra-slim panel PC equipped with a 12.1" XGA TFT LCD, and low-power Intel Celeron N2930, 1.83 GHz, processor to provide high-performance computing in a compact and fanless system. |
| CPU Cores | 4 |
| CPU Family | Intel Celeron |
| Base CPU Speed | Under 2.0 Ghz |
| Screen Size | 10.1-15" |
| LAN Ports | 1-4 |
| Serial Ports | 1-2 |
| USB 2.0 | 1-2 |
| USB 3.0 | 1-2 |
| Max Memory | 2 GB, 4 GB, 8 GB |
| Operating System | Windows 7, Windows 10, Linux |
| Effective Memory Speed | < 1600 HHz |
| Form Factor | Panel PC |
| CPU | Intel® Celeron® N2930 quad core |
| Frequency | 1.83 GHz |
| L2 Cache | 2 MB |
| Memory | 1 x SODIMM DDR3L 1333 MHz (max. 8 GB) |
| Storage | 1 x 2.5" SATA bay (optional; requires a bracket module for installation) 1 x mSATA bay (default) |
| Network (LAN) | 2 x 10/100/1000 Mbps Ethernet (Intel I211-AT) |
| I/O | 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS) 2 x USB 2.0, 1 x USB 3.0 |
| Expansion Slots | 1 x Full-size mini PCIe slot |
| Watchdog TImer | 255 timer levels, set up by software |
| Display Type | 12.1" TFT LCD (LED backlight) |
| Luminance | 500 |
| Viewing Angle | 80 (left), 80 (right), 70 (up), 70 (down) |
| Backlight Lifetime | 30,000 hr (min.) |
| Contrast Ratio | 700 |
| Light Transmission | 80±5% at 550 nm wavelength |
| Resolution | 1024 x 768 |
| Type | ELO 5-wire resistive touch |
| Controller | RS232 interface |
| Durability | Greater than 35 million touches in one location without failure |
| Humidity | 10 ~ 95% @ 40 °C (non-condensing) |
| Operating Temperature | 0 ~ 50 °C (32 ~ 122 °F) with SSD 0 ~ 40 °C (32 ~ 104 °F) with HDD |
| Storage Temperature | -40 ~ 60 °C (-40 ~ 140 °F) |
| Shock | Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27 |
| Vibration Protection | Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64 |
| EMC | CE, FCC Class B, BSMI |
| Safety | CB, CCC, BSMI, UL |
| Front Panel Protection | IP65 compliant |
| Power Input Voltage | 12 ~ 24 VDC |
| Power Consumption | 18W (Burn-in test 7.0 in Windows 7, 32-bit) |
| OS Support | Microsoft® Windows 7/8.1/10 (32/64-bit), WES7, WEC7, Linux, Android 4.4 |
| Weight | 2.1 kg (4.63 lb) |
| Dimension | 317 x 246 x 49 mm (12.5 x 9.7 x 1.9 in) |
