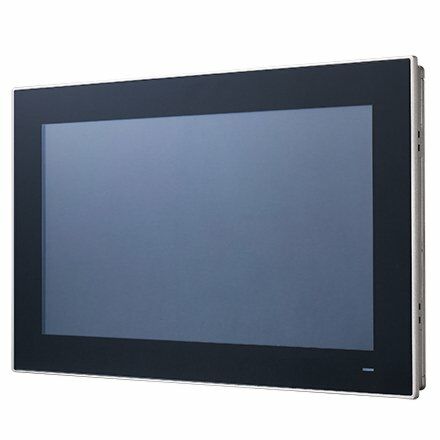

Intel PENTIUM APL N4200 Fanless15.6" Pa
PPC-3150SW-PN4AUStarting at $1,530.00
Main Features:
- 15.6" true-flat WXGA TFT LCD with projected capacitive touch control
- Fanless design with low power consumption
- Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
- Configurable RS-232/422/485 ports via BIOS
- Automatic data flow control over RS-485
- Wide range DC support (12 ~ 24 VDC)
- Supports dual displays
- IP65-rated front panel
Frequently Asked Questions
The PPC-3150SW provides the following I/O:
- 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485 (configurable via BIOS)
- 2 x USB 3.0 and 2 x USB 2.0
- 2 x GbE LAN (Intel I211-AT)
- 1 x HDMI
- 1 x Line-out
- 1 x DC-In and 1 x Power Switch
The unit accepts a wide-range DC input of 12 ~ 24 V and has a power consumption of 33W.
The operating temperature range is 0 ~ 50 °C (32 ~ 122 °F) when configured with an SSD, or 0 ~ 40 °C (32 ~ 104 °F) when configured with an HDD. Storage temperature is -20 ~ 60 °C (-4 ~ 140 °F).
The system carries EMC certifications of CE, FCC Class B, BSMI, and EN 60601-1-2, and safety certifications of CE, UL, CCC, and BSMI. The front panel is IP65 compliant.
The PPC-3150SW supports 1 x SODIMM DDR3L 1600/1866 memory, up to a maximum of 8 GB. For storage, it supports 1 x internal 2.5" SATA HDD (optional, requires a bracket module for installation) and 1 x mSATA bay.
The PPC-3150SW supports Microsoft Windows 10 (64-bit), Windows 10 IoT LTSC, Linux, and Android 8.1.
The unit measures 419.7 x 269 x 58.6 mm (16.52 x 10.59 x 2.3 in) and weighs 4.7 kg (10.36 lb). The panel cutout dimensions are 413 x 262 mm (16.25 x 10.31 in).
Wireless connectivity is available as an accessory: the PPC-WLAN-C1E is an M.2 Wi-Fi module with antenna cable that supports 2T2R, installed via the internal Mini PCIe expansion slot.
Optional mounting accessories include the PPC-174T-WL-MTE wall mount kit, PPC-STAND-A1E stand, and PPC-ARM-A03 VESA standard arm mount, all designed for the PPC series.
Both models feature a 15.6" widescreen PPC with PCT multi-touch and an Intel Pentium N4200 quad-core processor. The PPC-3150SW-PN4AU variant is designated "for U.S. only."
How-to Guides
- Obtain the PPC-HDD-N4200 HDD bracket module, which is required for installing the 2.5" SATA HDD in the PPC-3150SW.
- Mount the 2.5" SATA drive into the bracket module.
- Install the bracket module with the drive into the internal 2.5" SATA bay of the unit.
- Obtain the PPC-WLAN-C1E M.2 Wi-Fi module with antenna cable (supports 2T2R).
- Install the module into the internal Mini PCIe expansion slot.
- Connect the antenna cable as provided with the module kit.
- Enter the system BIOS setup.
- Locate the serial port configuration settings.
- Set COM2 to the desired mode: RS-232, RS-422, or RS-485, as this port is configurable via BIOS. COM1 is fixed as RS-232.
- Select the appropriate accessory: PPC-174T-WL-MTE (wall mount kit), PPC-STAND-A1E (stand), or PPC-ARM-A03 (VESA standard arm), all designed for the PPC series.
- Attach the chosen mounting accessory to the rear of the unit using the mounting points provided.
- Secure the unit to the wall, stand base, or VESA arm as appropriate for the accessory chosen.
| Manufacturer | Advantech |
|---|---|
| CPU Cores | 4 |
| CPU Family | Intel Pentium |
| Base CPU Speed | Under 2.0 Ghz |
| Brightness | 400+ nit |
| Resolution | 1366 x 768 |
| Screen Size | 15.1-19" |
| Video Output | HDMI |
| LAN Ports | 1-4 |
| Serial Ports | 1-2 |
| USB 2.0 | 1-2 |
| USB 3.0 | 1-2 |
| Max Memory | 8 GB |
| Operating System | Windows 7, Windows 10, Linux |
| Effective Memory Speed | 1600 MHz, 1866 MHz |
| Form Factor | Panel PC |
| Native Storage Type | 2.5" SSD, mSATA Full |
| Mounting | Wall Vesa |
| Memory | 1x DDR3L 1600/1866MHz SODIMM |
| Display Type | 15" TFT LCD (LED Backlight) |
| Display Size | 15.6" |
| Max Resolution | 1366 x 768 |
| Luminance | 400 |
| Viewing Angle | 85(left), 85 (right), 80(up), 80(down) |
| Backlight Lifetime | 50,000 hrs |
| Contrast Ratio | 500 |
| Light Transmission | 90% +-2% |
| Humidity | 10-95% @ 40C |
| Operating Temperature | 0-50C with SSD 0-40C with HDD |
| Storage Temperature | -40-60C |
| Shock | see manual |
| EMC | CE, FCC Class B, BSMI, EN 60601-1-2 |
| Weight | 4.7KG unboxed |
| Dimension | 419.7 x 269 x 58.6mm |
