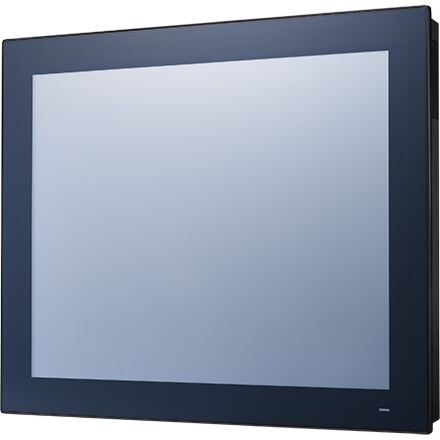

PPC-3190: 19" Fanless Panel PC with Intel Atom Quad-Core Processor
PPC-3190Starting at $1,830.00
- 19" SXGA TFT LCD with resistive touchscreen
- Intel Atom E3845 quad-core, 1.91 GHz processor
- Fanless, slim design
- Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
- 1 x PCI/PCIe x1 expansion slot
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
- Optional GPIO (8 channels, TTL level)
Frequently Asked Questions
The PPC-3190 provides the following I/O:
- 1 x isolated RS-422/485 (terminal block) with automatic flow control
- 4 x RS-232 (two external, two via internal pin header requiring an optional module)
- 1 x USB 3.0 and 3 x USB 2.0
- 1 x VGA
- 1 x DisplayPort (DP1.1a)
- 1 x Line-out, 1 x Mic-in
- 2 x Intel Gigabit Ethernet (Intel I210)
- Optional GPIO (8 channels, TTL level) via internal pin header, requiring an optional module
The PPC-3190 accepts a wide-range DC input of 9 ~ 32 VDC. Power consumption is 27W, based on a burn-in test running Windows 7 32-bit.
The PPC-3190 operates from -20 to 60 °C (-4 to 140 °F) and can be stored from -40 to 60 °C (-40 to 140 °F). Relative humidity tolerance is 95% at 40 °C, non-condensing. It carries CE, FCC Class A, BSMI, VCCI, and UKCA EMC certifications, and CB, UL, CCC, and UKCA safety certifications. The front panel is IP66 compliant.
The unit supports 1 x SODIMM DDR3L 1333 MHz memory, up to a maximum of 8 GB. For storage, it supports 1 x internal 2.5" SATA HDD bay and 1 x mSATA bay.
The PPC-3190 supports Microsoft Windows 7 (32/64-bit), WES7P, WEC7, Windows 10 IoT LTSC (64-bit), Linux, and Android 6.0.
The unit measures 454.0 x 379.8 x 62.1 mm (17.8 x 14.9 x 2.4 in) and weighs 7.0 kg (15.4 lb). The panel cutout dimensions for mounting are 444 x 370 mm (17.48 x 14.56 in).
Wireless connectivity is available as an accessory rather than a built-in feature. The optional PPC-WLAN-D1 adapter provides M.2 WiFi 6 + BT5.2 (2T2R) with antenna, connected via the Mini PCIe slot.
The PPC-3190 includes 1 x Mini PCIe slot, plus an expansion slot that ships as 1 x PCI by default (a 1 x PCIe x1 riser is included in the accessory box). Optional add-ons include an internal USB dongle or an additional ports module (2 x RS-232, or 1 x RS-232 + 1 x GPIO).
How-to Guides
- Choose a mounting method based on available accessories: the
PPC-174T-WL-MTEwall mount kit, thePPC-ARM-A03VESA standard arm, or thePPC-STAND-A1Estand. - For wall mounting, use the wall mount kit hardware to secure the unit to the wall.
- For VESA arm mounting, attach the VESA standard arm bracket to the rear of the panel PC.
- For panel/cutout mounting, use the panel cutout dimensions of 444 x 370 mm (17.48 x 14.56 in) when preparing the mounting surface.
- Locate the DC inlet and AT/ATX switch, labeled
Ion the I/O view. - Connect a compatible DC power source within the 9 ~ 32 VDC input range, such as the
96PSA-A90W19OT-3power adapter. - Use the appropriate regional power cord (e.g. UL, Europe, PSE, or CCC variants) to connect the adapter to mains power.
- Set the AT/ATX switch as required before powering on the unit.
- Locate the expansion slot, labeled
Aon the I/O view, which accepts a PCI card by default. - If a PCIe x1 card is needed, use the PCIe x1 riser included in the accessory box.
- Insert the card into the slot and secure it per the expansion slot's physical mounting.
- Order the
98R3C31530Eadditional ports module, which provides either two RS-232 ports or one RS-232 plus one GPIO port. - Install the module using the internal pin header locations reserved for the additional RS-232 and GPIO ports, labeled
L(Optional modules) on the I/O view.
The PPC-3190 is a 19" fanless panel PC equipped with a high-performance Intel Atom E3845 quad-core, 1.91 GHz processor that supports both a wide operating temperature range (-20 ~ 60 °C) and wide power input range (9 ~ 32 VDC). Providing multiple I/O, including 4 x COM, 1 x USB 3.0, 1 x isolated RS-422/485, and dual Intel Gigabit Ethernet ensures easy integration and connectivity. Including 1 x PCI/PCIe expansion slot, the PPC-3190 can be integrated with fieldbus protocols or proprietary cards for increased application potential.
| Manufacturer | Advantech |
|---|---|
| Short Description | The PPC-3190 is a 19" fanless panel PC equipped with a high-performance Intel Atom E3845 quad-core, 1.91 GHz processor that supports both a wide operating temperature range (-20 ~ 60 °C) and wide power input range (9 ~ 32 VDC). Providing multiple I/O, including 4 x COM, 1 x USB 3.0, 1 x isolated RS-422/485, and dual Intel Gigabit Ethernet ensures easy integration and connectivity. Including 1 x PCI/PCIe expansion slot, the PPC-3190 can be integrated with fieldbus protocols or proprietary cards for increased application potential. |
| CPU Cores | 4 |
| CPU Family | Intel Atom |
| Base CPU Speed | Under 2.0 Ghz |
| Brightness | 300-399 nit |
| Resolution | 1280 x 1024 |
| Screen Size | 15.1-19" |
| Video Output | Display Port, VGA |
| LAN Ports | 1-4 |
| Serial Ports | 3-4 |
| USB 2.0 | 3-4 |
| USB 3.0 | 1-2 |
| Max Memory | 8 GB |
| Operating System | Windows 7, Windows 10, Linux |
| Effective Memory Speed | < 1600 HHz |
| Form Factor | Panel PC |
| Native Storage Type | 2.5" SSD, mSATA Full |
| Mounting | Wall Vesa |
| Memory | 1x SODIMM DDR3L 1333MHz |
| Display Type | 19" TFT LED panel |
| Display Size | 19" |
| Max Resolution | 1280 x 1024 |
| Luminance | 350 |
| Viewing Angle | 85 left 85 right 80 up 80 down |
| Backlight Lifetime | 50,000 hrs |
| Contrast Ratio | 1000 |
| Light Transmission | 81+-3% |
| Humidity | 10-95% @40C non condensing |
| Operating Temperature | 0-50C with 2.5" SATA -20-60C with wide temp mSATA or 2.5" drive |
| Storage Temperature | -40 ~ 60°C (-40~140°F) |
| Shock | see manual |
| EMC | CE, BSMI, FCC Class A |
| Weight | 7.9Kg unboxed |
| Dimension | 458.2 x 384 x 67.3mm |
