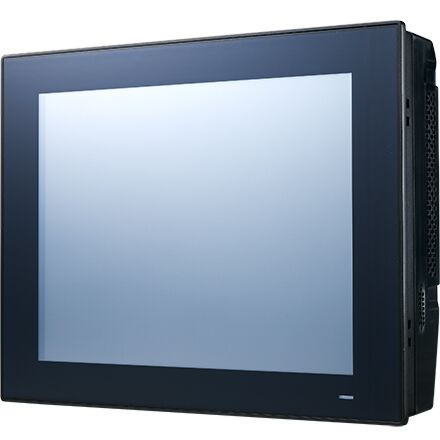

12.1" 8th Gen Intel Core i/Celeron CPU
PPC-6121-R8IAUStarting at $1,825.00
Main Features:
- 12.1" TFT XGA LED Panel with resistive touch control
- 8th Generation Intel Core i/Celeron Options (35W)
- System memory supports dual channel DDR4 2666 MHz upt to 32GB
- 1x M.2 2230 E-Key Expansion Slot
- 1x mSATA Bay
Frequently Asked Questions
The PPC-6121 provides the following ports:
- 4 x RS-232
- 1 x RS-422/485 with 1K VDC isolation (terminal block)
- 4 x USB 3.1
- 1 x DB15 VGA
- 1 x HDMI 1.4
- 1 x Mic in, 1 x Line out
- 1 x GPIO (TTL, 8 pin programmable)
- 2 x Gigabit Ethernet (Intel I219-LM + Intel I211)
The PPC-6121 accepts an input voltage of 12 ~ 30VDC. Power consumption is 120W, as measured in a burn-in test (Windows 10 64bit, i7-8700T CPU, 16GB RAM, 500GB HDD).
The operating temperature range is 0 ~ 50 °C (32 ~ 122 °F), with a storage temperature range of -40 ~ 90 °C (-40 ~ 194 °F). Relative humidity is rated at 10 ~ 95% @ 40 °C (non-condensing). The unit carries EMC certifications CE, FCC Class A, and BSMI, and safety certifications CB, UL, CCC, and BSMI. The front panel is IP65 compliant.
The system supports 2 x 260-pin SO-DIMM DDR4 2666 MHz slots (max. 32GB total). Storage options include 1 x 2.5" SATA bay and 1 x mSATA bay (SATA SSD + mSATA support RAID 0 & 1). Expansion slots include 1 x M.2 2230 (E key) and an optional PCIe x4 or PCI expansion slot.
The PPC-6121 supports Microsoft Windows 10 64bit and Linux (Ubuntu; Fedora 28).
The unit measures 317 x 246 x 73mm (12.48 x 9.69 x 2.87 in) and weighs 3.8 kg (8.38 lb). Panel cutout dimensions for mounting are 311 x 240 mm (12.24 x 9.44 in).
Available mounting accessories include a wall mount kit (PPC-174T-WL-MTE), an ARM VESA Standard mount (PPC-ARM-A03), and a stand (PPC-STAND-A1E).
The PPC-6121 has 1 x M.2 2230 (E key) expansion slot. An optional M.2 Wi-Fi module with antenna cable supporting 2T2R (PPC-WLAN-C1E) is available for this slot.
Both are 12.1" 8th/9th Gen Intel Core i/Celeron panel PCs with resistive touchscreen. The PPC-6121-R8IAU is specifically designated for U.S. only.
The display is a 12.1" TFT LCD panel with a maximum resolution of 1024 x 768, viewing angles of 89° on all four sides, luminance of 600 cd/m2, contrast ratio of 1000, and a backlight lifetime of 50,000 hours (minimum). The touchscreen is a 5-wire resistive type with a USB interface controller, light transmission of 80±5% at 550nm wavelength, and durability rated at greater than 35 million touches in one location without failure.
How-to Guides
- Obtain the optional add-on box for PCI or PCIe expansion (part number 98R36121000), which includes a PCI/PCIe riser card.
- Install the riser card into the PPC-6121's optional PCIe x4 or PCI expansion slot as provided by the add-on box kit.
- Confirm the expansion card is properly seated before closing the enclosure.
- Obtain the PPC-WLAN-C1E M.2 Wi-Fi module with antenna cable (supports 2T2R).
- Insert the module into the 1 x M.2 2230 (E key) expansion slot on the PPC-6121.
- Connect the antenna cable as provided with the module kit.
- Select a mounting method: wall mount kit (PPC-174T-WL-MTE), ARM VESA Standard mount (PPC-ARM-A03), or stand (PPC-STAND-A1E).
- If mounting into a panel cutout, ensure the cutout measures 311 x 240 mm (12.24 x 9.44 in).
- Attach the chosen mounting accessory to the PPC-6121 following the accessory's mounting points.
- Obtain the optional TPM module for PPC-6121 (part number 98R3P612100).
- Install the module into the system's optional TPM2.0 slot.
The PPC-6121 is a 12.1" color TFT LCD panel PC that supports 8th/9th generation Intel® Core™ i/Celeron® processors for high-performance computing. Featuring various connectors, PPC-6121 can be easily installed to support diverse application. Additionally, the system’s user-friendly interface makes it ideal for information-based applications. The provision of 4 x RS-232, 1 x isolated RS422/485, and dual Intel® Gigabit Ethernet connectors with Intel® AMT support, as well as 1 x expansion slot, makes PPC-6121 a highly reliable and versatile display platform.
| Manufacturer | Advantech |
|---|---|
| CPU Cores | 2, 4, 6 |
| CPU Family | Intel Celeron, Intel Core, Intel Pentium |
| Base CPU Speed | Over 3.5 GHz |
| Brightness | 400+ nit |
| Resolution | 1024 x 768 |
| Screen Size | 10.1-15" |
| Video Output | VGA, HDMI |
| LAN Ports | 1-4 |
| Serial Ports | 3-4 |
| USB 3.1 | 1-4 |
| Max Memory | 32 GB |
| Operating System | Windows 10, Linux |
| Effective Memory Speed | 2666 MHz |
| Form Factor | Panel PC |
| Native Storage Type | 2.5" SSD, mSATA Full |
| Mounting | Vesa Wall Stand |
| Memory | 2 slots DDR4 2666MHz SO-DIMM 32 GB Max |
| Watchdog TImer | 255 levels, software setup |
| Display Type | 12.1" TFT LED Panel |
| Display Size | 12.1" |
| Max Resolution | 1024 x 768 |
| Luminance | 600 |
| Viewing Angle | 89°(left), 89°(right), 89°(up), 89°(down) |
| Backlight Lifetime | 50,000 hrs |
| Contrast Ratio | 1000 |
| Operating Temperature | see manual to match with CPU |
| Power Input Voltage | 12-30VDC |
| Weight | 3.8 KG / 8.38 lbs unboxed |
| Dimension | 317mm x 246mm x 73mm |
