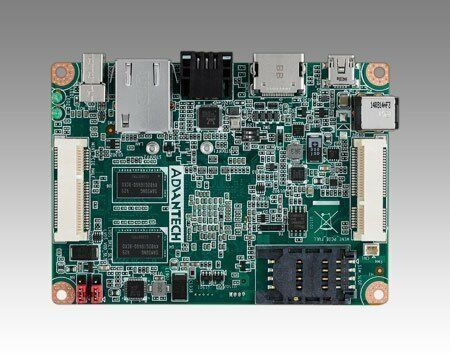

Advantech NXP i.MX6 2.5" Single Board Computer
RSB-3410DL-MDA1EAn Alternative Product May Be Available!
Contact us for more information at 866-412-6278 or enter your information below.
Main Features:
- NXP ARM Cortex-A9 i.MX6 Dual Lite 1 GHz high performance processor
- Onboard DDR3 1 GB, 4 GB eMMC Flash
- Supports OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators, full HD 1080p video codecHDMI 1920x1080
- Single Channel 18/24 bit LVDS
- Dual mini-PCIe for WIFI/3G support
- 1 USB 2.0, 1 USB OTG client
- Multiple OS support in Linux/Android
| Manufacturer | Advantech |
|---|---|
| Memory | 1 GB (max. capacity as 2 GB) DDR3 800 |
| Watchdog TImer | Yes |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) |
| EMC | CE/FCC Class B |
| Power Input Voltage | 12 VDC |
| Dimension | 100mm x 72 mm (3.9" x 2.8") |
