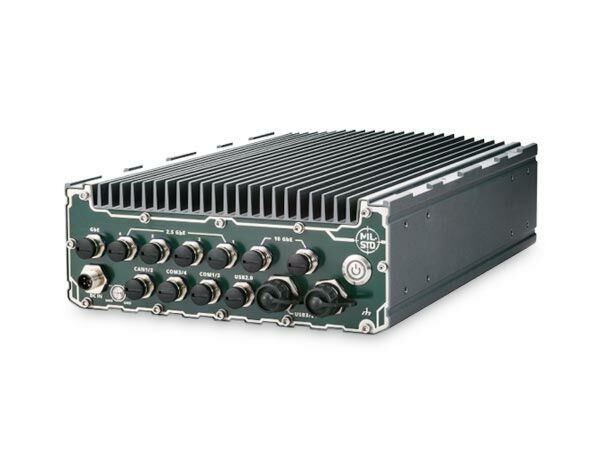

SEMIL-2200 Series: 2U 19“/2 Rack Mount IP69K Mission Critical Computer Supporting Intel 14th/13th/12th-Gen Core CPU
SEMIL-2200 SeriesThe SEMIL-2200 series is a cutting-edge, AI-enabled mission-critical computer engineered for demanding environments. Housed in a 2U 19"/2 rackmount chassis, this IP69K-rated system is impervious to dust and water and capable of flawless operations in -40°C to 70°C environments. The
The SEMIL-2200 series is powered by Intel's 14th, 13th, or 12th generation processors and supports up to 128GB ECC/ non-ECC DDR5 memory to offer
exceptional computing power and efficiency.
- 2U IP69K mission-critical computer
- Up to 128 GB ECC/non-ECC DDR5 4800 SDRAM
- -40°C to 70°C wide-temperature fanless operation
- 2x 10GbE, 4x 2.5GbE, 1x GbE via M12 X-coded connectors
- 2x SocketCAN and 2x USB3.2 Gen1 Type-C w/ DP alternative mode
- 9V to 36V wide-range DC input with built-in ignition power control
- MIL-STD-810H, MIL-STD-461G, MIL-STD-1275D compliant
Frequently Asked Questions
The SEMIL-2200 series provides the following I/O, all via ruggedized M12 connectors unless noted:
- 2x 10GbE Ethernet (Intel X550-AT2, with WoL, M12 X-coded)
- 4x 2.5GbE Ethernet (Intel I226-IT, M12 X-coded)
- 1x GbE Ethernet (Intel I219-LM, with WoL, M12 X-coded)
- 2x isolated CAN 2.0 ports, supporting SocketCAN in Linux
- 2x Type-C USB 3.2 Gen1x1 (5Gbps) ports, shared DisplayPort
- 2x USB 2.0 ports (M12 A-coded)
- 2x isolated 3-wire RS-232 ports (COM1/COM2)
- 1x isolated 3-wire RS-232 (COM3) and 1x RS-422/485 port (COM4)
The system accepts 9V to 36V DC input with reverse polarity protection via an M12 L-coded connector, and includes built-in ignition power control using an IGN/GND signal through the same M12 L-coded connector.
The unit operates from -40°C to 70°C and can be stored from -40°C to 85°C, with humidity tolerance of 10%~90% non-condensing. It carries an IP69K rating and complies with MIL-STD-810H (vibration: 514.8C-VII Category 4; shock: 516.8 Procedure I), MIL-STD-461G (CE102, RE102, RS103 EMC tests), and MIL-STD-1275D (electrical systems, normal operating mode).
The system supports up to 128GB ECC/non-ECC DDR5 4800 SDRAM across two SODIMM slots. For storage, it has 2x internal SATA ports for 2.5" HDD/SSD installation supporting RAID 0/1, plus 1x M.2 2280 M-key NVMe socket (PCIe Gen4x4).
The system provides 3x full-size mini PCI Express sockets with SIM slots, 1x M.2 2242/3052 B-key socket with dual SIM slot for a 5G/4G module, and 1x M.2 2230 E-key socket for Wi-Fi.
Yes. It has 2x isolated CAN 2.0 ports that support SocketCAN in Linux.
The SEMIL-2200 series includes an M.2 2242/3052 B-key socket with dual SIM slot for a 5G/4G module, and an M.2 2230 E-key socket for Wi-Fi. It also has 3x mini PCI Express sockets with SIM slots for additional wireless/cellular modules.
The system supports 2U 19"/2 rack mount and wall mount configurations. Dimensions shown are 310mm and 220mm for the rack-mount and wall-mount configurations respectively, with a height of 90.5mm.
It supports Intel 14th, 13th, or 12th-Gen Core processors (LGA1700 socket, 35W TDP), including options ranging from Core i3 to Core i9 T/TE series, with an Intel R680E chipset and integrated Intel UHD Graphics 770 (32EU).
How-to Guides
- Locate the M12 L-coded DC input connector, which accepts 9V to 36V DC with reverse polarity protection.
- Connect the IGN/GND signal wires through the same M12 L-coded connector to enable built-in ignition power control.
- Optionally use the PA-280W-CW6P-2P 280W AC-DC power adapter (24V, 11.67A) with wafer FML6P to 2P end terminal cable for bench or fixed power setups.
- Open the chassis to access the 2x internal SATA ports for 2.5" HDD/SSD installation.
- Install one or two 2.5" SATA drives; configure RAID 0/1 if redundancy or performance striping is needed.
- For NVMe storage, install a compatible M.2 2280 M-key NVMe SSD (PCIe Gen4x4) into the M.2 socket.
- Identify the appropriate expansion socket: mini PCI Express (3x full-size, with SIM slot), M.2 2242/3052 B-key (with dual SIM slot) for 5G/4G modules, or M.2 2230 E-key for Wi-Fi.
- Insert the applicable module into its socket.
- Insert a SIM card into the corresponding SIM slot if installing a cellular module.
- Choose a mounting configuration: 2U 19"/2 rack mount or wall mount.
- For rack mounting, use the Rmkit-SL rack mount kit (for SEMIL-2000 series).
- For dual-unit assemblies, use the JPlate-SL joint plate to join two SEMIL units together.
- Secure the chassis according to the dimensional drawings (310mm rack-mount length, 220mm wall-mount length, 90.5mm height).
- Use Cbl-M12X8M-RJ45-500CM or Cbl-M12X8M-RJ45-CAT6A-500CM cables to convert M12 X-coded Ethernet ports to standard RJ45.
- Use Cbl-M12A8M-2U2TA-180CM to break out the M12 A-coded USB port to two USB 2.0 Type-A female connectors.
- Use Cbl-M12A8M-2DB9M-180CM or Cbl-M12A8M-2DB9M_OW2-180CM1 to break out serial (COM) and CAN signals to DB9 connectors or open wire.
- Use Cbl-M12L5F-CordEnd5-180CM to wire the DC power/ignition input to open cord-end terminals.
- For a complete set, order the Cblkit-M12-SEMIL2007 cable kit, which bundles the Ethernet, USB, COM/CAN, and power cables needed for a SEMIL-2207 unit.
The SEMIL-2200 series is a cutting-edge, AI-enabled mission-critical computer engineered for demanding environments. Housed in a 2U 19"/2 rackmount chassis, this IP69K-rated system is impervious to dust and water and capable of flawless operations in -40°C to 70°C environments. The
The SEMIL-2200 series is powered by Intel's 14th, 13th, or 12th generation processors and supports up to 128GB ECC/ non-ECC DDR5 memory to offer
exceptional computing power and efficiency.
The system employs a corrosion-resistant stainless-steel and aluminum chassis to safeguard against moisture and salt. Its ruggedized M12 connectors can withstand shock and vibration, making it ideal for harsh industrial and field applications. Its comprehensive connectivity options include dual CAN 2.0 buses, multiple USB 3.2 ports, and seven Ethernet ports, including two 10GbE ports for high-speed devices.
The SEMIL-2200 series is MIL-STD-810H-compliant and has been proven to withstand extreme temperatures, humidity, vibration, and shock. Additionally, it complies with MIL-STD-461G standards, ensuring immunity to electromagnetic interference. For applications in mobile or vehicular environments, this platform meets the requirements of MIL-STD-1275D. With its exceptional performance, rugged construction, and adherence to stringent military standards, the SEMIL-2200 series is the ideal solution for critical applications demanding reliability and durability in mission-critical environments.
