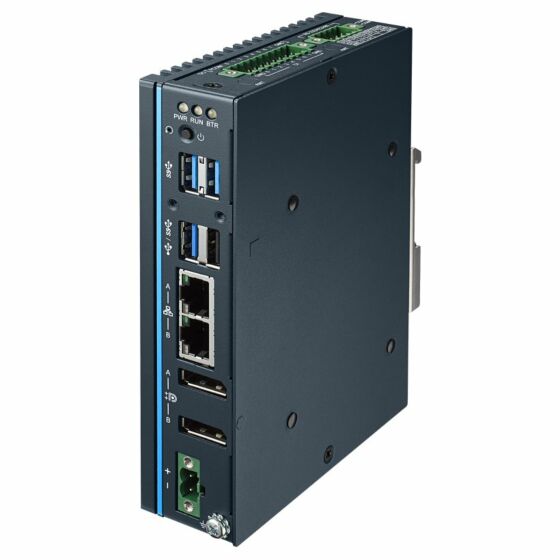

Advantech UNO-137 Compact Controller
UNO-137Starting at $1,550.00
Main Features:
- Intel Apollo Lake Atom E3940 1.6GHz processor with built in 8GB DDR3L memory
- Wide range power input 10-36V
- Wide operating temperature range -40-70C
- 2x DP++ features high resolution and enables compatibility to HDMI/DVI via economy priced passive adapter
- On board TMP 2.0 to provide hardware based security
- Modular design for optional iDoor extension kit
- DIN Rail power supplies and backups
- Proven by UL/IEC 61010 to meet industrial controller standard
Frequently Asked Questions
The UNO-137 provides:
- 2 x 10/100/1000 Mbps LAN (RJ45)
- 2 x RS-232/422/485 isolated serial ports (terminal block)
- 3 x USB 3.2 Gen 1 and 1 x USB 2.0 (Type A)
- 2 x DisplayPort 1.2, up to 4096 x 2306 @ 60 Hz
- 8 x isolated digital input channels and 8 x isolated digital output channels
The UNO-137 accepts 10 ~ 36 VDC power via a 1 x 2-pin terminal block. Typical power consumption is 21W, with a maximum of 47W. When using a USB iDoor module (PCM-24U2U3-BE), maximum power draw rises to 56W, and with a PoE iDoor module (PCM-24R2PE-AE), maximum power draw rises to 77W.
The UNO-137 operates from -40 to 70 °C (-40 to 158 °F) with 0.7 m/s airflow, and can support -40 to 85 °C (-40 to 185 °F) with wide-temperature peripherals such as SSDs and wireless modules. Note that operating temperature with M.2 SSDs must be kept under 60 °C (140 °F). Storage temperature range is -40 to 85 °C (-40 to 185 °F). The unit is certified to CE, FCC, UL 61010-2-201, CCC, and BSMI, and is compliant with IEC 61010-1 safety requirements for industrial use. It is also Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified, and has an IP40 ingress protection rating.
The UNO-137 has built-in 8 GB DDR3L RAM (1600 MHz, up to 8 GB). Storage options include 1 x 2.5" SSD/HDD (up to 9.5 mm height) and 1 x M.2 B-key 2242 SSD. Expansion options include 1 x full-size mini PCIe slot (PCIe/USB signal), 1 x M.2 (B-key) 2242 slot (SATA signal, or supports a 3042/3052 cellular module via USB signal), and 1 x nano SIM card slot.
The UNO-137 supports Windows 10 2019 LTSC and AdvLinux (Ubuntu 20.04). Advantech also provides embedded OS images: WIN10LTSC x64 v6.06 B010 for the UNO-137/410 Entry, and AdvLinuxTu V3.2.2 for the UNO series.
The UNO-137 measures 35 x 105 x 150 mm (1.4 x 4.1 x 5.9 in) and weighs 0.8 kg (1.7 lb) net. It has an aluminum housing and is DIN-rail mounted.
The UNO-137 uses an Intel® Atom® E3940 processor running at 1.6 GHz (up to 1.8 GHz), paired with an Intel® HD Graphics engine.
The UNO-137 supports cellular connectivity through its M.2 (B-key) 2242 slot, which can accept a 3042/3052 cellular module (USB signal), along with a nano SIM card slot. Optional 5G(Sub-6G)/LTE/WCDMA modules with GNSS (AIW-355DQ series) are available as accessories, along with matching antennas and cables.
Yes. The UNO-137 supports an optional second-stack extension kit (UNO-137-ID1EA) that adds 1 x iDoor slot. This slot accepts a wide range of iDoor modules for industrial Fieldbus communication (e.g., CANBus, PROFIBUS, PROFINET, EtherCAT, EtherNet/IP, Sercos III, POWERLINK), smart digital/analog I/O, wired/wireless communication (Wi-Fi, LTE/GPS, cellular), and core functions (MRAM, CFast, USB dongle slot, USB 3.0, audio).
How-to Guides
- Obtain the UNO-137-ID1EA second-stack extension kit, which provides 1 x iDoor slot and is designed for the UNO-137-E13BA.
- Select a compatible iDoor module from the supported list (Industrial Fieldbus, Smart Digital/Analog I/O, iDoor CORE, or Wired/Wireless Communication categories).
- Install the extension kit onto the UNO-137 chassis; the assembled unit with the extension kit has dimensions of 35 x 105 x 150 mm.
- Note that system operating temperature with most iDoor modules (excluding PoE and USB 3.0 modules) can be maintained at 60 °C/140 °F.
- Confirm the mounting method: the UNO-137 uses DIN-rail mounting with an aluminum housing.
- Position the unit according to the dimensional drawing (35 x 105 x 150 mm), allowing clearance for front I/O, top I/O, and DisplayPort connectors.
- Attach the unit to the DIN rail, ensuring the chassis ground connection is accessible.
- Install the cellular module (e.g., AIW-355DQ series, 5G/LTE/WCDMA with GNSS) into the M.2 (B-key) 2242 slot, which carries a USB signal for cellular use.
- Insert a nano SIM card into the dedicated nano SIM card slot.
- Connect the antenna cable (e.g., 1750008569-01 or 1750008879-01) between the module and the reserved antenna hole on the chassis.
- Attach the dipole antenna (e.g., 1750009372-01) to complete the connection.
| Manufacturer | Advantech |
|---|---|
| CPU Cores | 4 |
| CPU Family | Intel Atom |
| Base CPU Speed | Under 2.0 Ghz |
| Video Output | Display Port |
| LAN Ports | 1-4 |
| Serial Ports | 1-2 |
| USB 2.0 | 1-2 |
| USB 3.1 | 1-4 |
| Max Memory | 8 GB |
| Operating System | Linux |
| Effective Memory Speed | 1866 MHz |
| Form Factor | Fanless |
| Native Storage Type | 2.5" SSD |
| Memory | 8GB DDR3L built in |
| Watchdog TImer | 255 levels 1-255 seconds |
| Humidity | 95% @ 40C non condensing |
| Operating Temperature | see specifications sheet for configuration variables |
| Storage Temperature | -40 ~ 85°C (-40~185°F) |
| Shock | IEC 60068-2-27, 50G, half sine, 11ms |
| EMC | CE, FCC, UL, CCC, BSMI |
| Weight | 0.8kg |
| Dimension | 35 x 105 x 150 |
