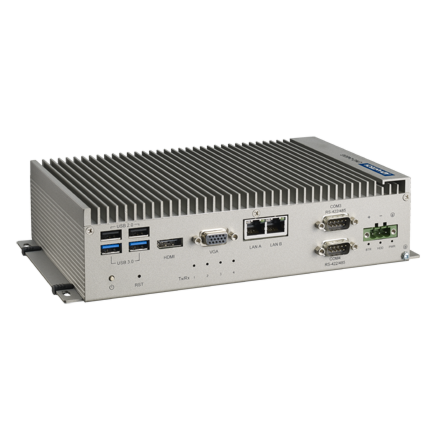

UNO-2483G-434AE Advantech Intel Core i3-4010U ULT 1.7GHz, 8GB, 4xLANs, 3xmPCIe
Starting at $1,280.00
Main Features:
- 4th Generation Intel Core i3 Processors up to 1.9GHz with 8GB DDR3L Memory
- 4 x GbE, 4 x USB 2.0/3.0, 2 x RS-232, 2 x RS-422/485, 1 x VGA, 1 x HDMI, Audio
- Comprehensive Palm, Small, Regular-size form-factor
- Compact with Fanless Design
- Rubber Stopper Design with Captive Screw
- Dual HDD/SSD support with RAID 0/1 in regular-size
- Diverse system IO and Isolated Digital IO by iDoor Technology
- Supports Fieldbus Protocol by iDoor Technology
- 3G/GPS/GPRS/WiFi Communication by iDoor Technology
- Supports MRAM by iDoor Technology
- Chassis Grounding Protection
- LAN Redundancy (Teaming)
- Fault-Protected RS-485 Transceivers With Extended Common-Mode Range
| Processor | Advantech Intel Celeron J1900 2.42GHz |
|---|---|
| Graphics | Intel® HD Graphics: Gen7 with 4EU |
| Memory | On-board 4GB DDR3L 1600 MHz |
| Audio | Line-In, Line-Out |
| Mini PCI-E | 3 x Full-size mPCIe slot, mPCIe 2.0 |
| mSATA | 1 x mSATA |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Storage Temperature | -40 ~ 85°C (-40~185°F) |
| Vibration | Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA) | Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD) |
| EMC | CE, FCC, UL, CCC, BSMI |
| Manufacturer | Advantech |
