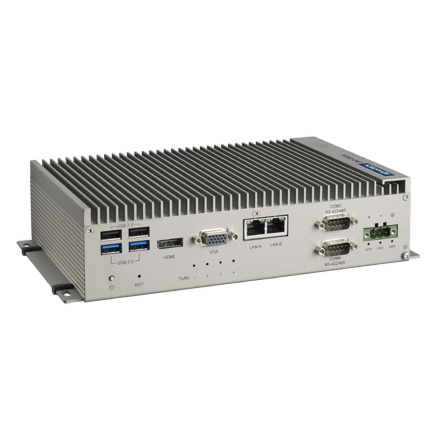

Advantech Intel Core Celeron Regular-Size Automation Computer w/ 4 x GbE,3 x mPCIe

UNO-2483G-4C3AE

Starting at $980.00

Main Features:

  • 4th Generation Intel Core Celeron Processor up to 1.9GHz with 4GB DDR3L Memory
  • 4 x GbE, 4 x USB 2.0/3.0, 2 x RS-232, 2 x RS-422/485, 1 x VGA, 1 x HDMI, Audio
  • Comprehensive Palm, Small, Regular-size form-factor
  • Compact with Fanless Design
  • Rubber Stopper Design with Captive Screw
  • Dual HDD/SSD support with RAID 0/1 in regular-size
  • Diverse system IO and Isolated Digital IO by iDoor Technology
  • Supports Fieldbus Protocol by iDoor Technology
  • 3G/GPS/GPRS/WiFi Communication by iDoor Technology
  • Supports MRAM by iDoor Technology
  • Chassis Grounding Protection
  • LAN Redundancy (Teaming)
  • Fault-Protected RS-485 Transceivers With Extended Common-Mode Range
PDF Document - UNO-2483G-4C3AE Datasheet
UNO-2483G-4C3AE Datasheet
(Size: 638.6 KB)

System Configuration


* Selection required

Your Configuration
UNO-2483G-4C3AE Advantech Intel Core Celeron Regular-Size Automation Computer w/ 4 x GbE,3 x mPCIe
Advantech Intel Core Celeron Regular-Size Automation Computer w/ 4 x GbE,3 x mPCIe

In stock

Add to Favorites

$980.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

PDF Document - UNO-2483G-4C3AE Datasheet
UNO-2483G-4C3AE Datasheet
(Size: 638.6 KB)
Specifications
ManufacturerAdvantech
ProcessorIntel® 4th Gen Celeron® 2980U ULT 1.6 GHz Dual Core, 2MB L2
GraphicsIntel® HD Graphics 5000/4400
ChipsetIntegrated Intel 8 Series Chipset
Video Port1 x VGA, supports [email protected] 24bpp|1 x HDMI 1.4a, supports [email protected] 24bpp
AudioLine-In, Line-Out
Mini PCI-E4 x Full-size mPCIe slot, mPCIe 2.0 (3 x Full-size and 1 x half-size)
VibrationOperating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)
Humidity10 ~ 95% @ 40°C (non-condensing)
Operating Temperature-40°C ~ 60°C (-40°F ~ 140°F)
Storage Temperature-40 ~ 85°C (-40~185°F)
ShockOperating, IEC 60068-2-27, 50G, half sine, 11ms
EMCCE, FCC, UL, CCC, BSMI
