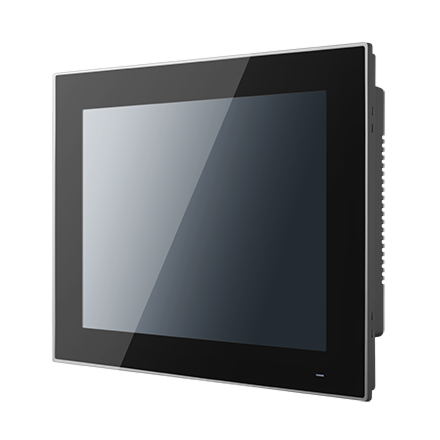

10.4" Fanless Panel PC with Intel® Celeron® N2930 Processor

PPC-3100S

Starting at $1,075.00

The PPC-3100S is a fanless panel pc powered by the Intel® Celeron® N2930 Processor. The true-flat touchscreen is extremely durable and can withstand years of use. Memory comes in the form of 8GB DDR3L SDRAM, providing plenty of memory for most industrial applications. Most impressive is its design, as it’s constructed from rugged solid aluminum alloy chassis and IP65 rated front panel. Resistive or Capacitive options available.

Main Features

  • ƒIndustrial-grade 10.4" SVGA/XGA TFT LCD with 30K backlight lifetime
  • ƒDurable true-flat touchscreen with 5-wire resistive/projected capacitive touch control
  • ƒIntel® Celeron® N2930 quad-core, 1.83 GHz, processor
  • ƒUp to 8 GB DDR3L SDRAM
  • ƒ1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 1 x USB 3.0
  • ƒCompact, fanless design with solid aluminum alloy enclosure and IP65-rated front panel
  • ƒSupports E-Eye monitoring and protection
  • ƒSupports expansion via full-size mini PCIe
  • ƒSupports Windows Embedded and Android OS
  • ƒSupports VESA 75 x 75 mounting holes
PDF Document - Data Sheet PPC-3100S
Data Sheet PPC-3100S
(Size: 655.4 KB)

System Configuration


* Selection required

Your Configuration
PPC-3100S 10.4" Fanless Panel PC with Intel® Celeron® N2930 Processor
10.4" Fanless Panel PC with Intel® Celeron® N2930 Processor

In stock

Add to Favorites

$1,075.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

The PPC-3100S is a high-value, ultra-slim panel PC equipped with a 10.4" SVGA/XGA TFT LCD, and low-power Intel® Celeron® N2930, 1.83 GHz, processor to provide highperformance computing in a compact and fanless system. For high durability and functionality, the PPC-3100S features an IP65-rated front panel, true-flat touchscreen with 5-wire resistive/projected capacitive touch, two serial ports, three USB ports, and two GbE LAN ports, making it suitable for diverse industrial applications. To provide further system monitoring and protection capabilities, e-Eye technology is provided at the rear of the panel PC for indicating the system operating status to facilitate detection and analysis.

PDF Document - Data Sheet PPC-3100S
Data Sheet PPC-3100S
(Size: 655.4 KB)
Specifications
ManufacturerAdvantech
Short Description The PPC-3100S is a fanless panel pc powered by the Intel® Celeron® N2930 Processor. The true-flat touchscreen is extremely durable and can withstand years of use. Memory comes in the form of 8GB DDR3L SDRAM, providing plenty of memory for most industrial applications. Most impressive is its design, as it’s constructed from rugged solid aluminum alloy chassis and IP65 rated front panel. Resistive or Capacitive options available.
CPU Cores4
CPU FamilyIntel Celeron
Base CPU SpeedUnder 2.0 Ghz
Resolution800 x 600
Screen Size10.1-15"
Serial Ports1-2
USB 2.01-2
Max Memory2 GB, 4 GB, 8 GB
Operating SystemWindows 7, Windows 10, Linux
Effective Memory Speed< 1600 HHz
CPUIntel® Celeron® N2930 quad core
Frequency1.83 GHz
L2 Cache2 MB
Memory1 x SODIMM DDR3L 1333 MHz (max. 8 GB)
Storage

1 x 2.5" SATA Bay bay (optional; requires a bracket module for installation)

1 x mSATA Bay (default)

Network (LAN)2 x 10/100/1000 Mbps Ethernet (Intel 211)
I/O

2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)

2 x USB 2.0, 1 x USB 3.0 (for PPC-3100S-RAE)

1 x USB 2.0, 1 x USB 3.0 (for PPC-3100S-PBE)

Expansion Slots 1 x Full-size mini PCIe slot
Watchdog TImer255 timer levels, set up by software
Display Type

PPC-3100S-RAE

PPC-3100S-PBE

10.4" TFT LCD (LED backlight)

10.4" TFT LCD (LED backlight)

Luminance

400

1200

Viewing Angle

80 (left), 80 (right), 70 (up), 70 (down)

88 (left), 88 (right), 88 (up), 88 (down)

Backlight Lifetime
30,000 hr (min.) 30,000 hr (min.)
Contrast Ratio
700 1200
Light Transmission
80±5% at 550nm wavelength 88±2%
Resolution
800 x 600 1024 x 768
Type
ELO 5-wire resistive 5-point multi-touch projected capacitive
Controller
RS232 interface USB interface
Durability
Greater than 35million touches in one location without failure Cover glass > 7H
Humidity10 ~ 95% @ 40 °C (non-condensing)
Operating Temperature

0 ~ 50 °C (32 ~ 122 °F) with SSD

0 ~ 40 °C (32 ~ 104 °F) with HDD

Storage Temperature-40 ~ 60 °C (-40 ~ 140 °F)
ShockOperating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration ProtectionOperating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64
EMCCE, FCC Class B, BSMI
SafetyCB, CCC, BSMI, UL
Front Panel ProtectionIP65 compliant
Power Input Voltage12 ~ 24 VDC
Power Consumption16W (Burn-in test 7.0 in Windows 7, 32-bit)
OS SupportMicrosoft® Windows 7/8.1/10 (32/64-bit), WES7, WEC7, Linux, Android 4.4
Weight1.9 kg (4.18 lb)
Dimension272 x 217 x 46 mm (10.7 x 8.5 x 1.8 in)
