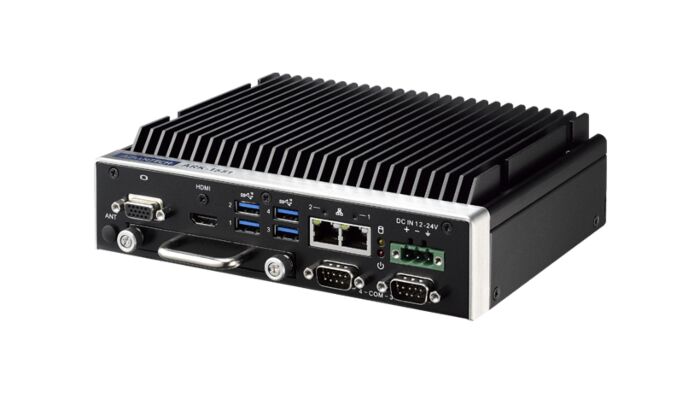

ARK-1551: Intel 8th Generation Core i5/Celeron Slim Fanless Computer

ARK-1551

Starting at $875.00

ARK-1551 fanless embedded box PC is an application ready system platform solution. Its electronics are protected in a compact sealed aluminum case for easy integration into a specific housing, or as a stand-alone application.
  • 8th Gen Intel Core i5/Celeron
  • Dual DDR4 2400MHz SO-DIMM memory up to 32G
  • 1 x swappable 2.5" SATA HDD drive bay and 1 x mSATA slot, supports Intel software RAID 0/1
  • 4 x USB 3.1 Gen 2, 2 x Intel GbE LAN, 4 x RS-232/422/485, 8 bit GPIO
  • 4K2K HDMI and VGA dual independent displays
  • 1 x full-size mPCIe with SIM holder and 1 x M.2 2230 E Key
  • Support Advantech SQF PCIex2 NVMe storage
  • 12V - 24V @ -10%/+20% wide range power input
  • Advantech DeviceOn built-in for easy manageability
  • RED for WiFi/BT/LTE are ready
PDF Document - ARK-1551 Data Sheet
ARK-1551 Data Sheet
(Size: 1.3 MB)
PDF Document - ARK-1551 User Manual
ARK-1551 User Manual
(Size: 9 MB)

System Configuration


* Selection required

Your Configuration
ARK-1551: Intel 8th Generation Core i5/Celeron Slim Fanless Computer
ARK-1551: Intel 8th Generation Core i5/Celeron Slim Fanless Computer

In stock

$875.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

ARK-1551 fanless embedded box PC is an application ready system platform solution. Its electronics are protected in a compact sealed aluminum case for easy integration into a specific housing, or as a stand-alone application. ARK-1551 is suitable for applications with limited space in hazardous environments.
PDF Document - ARK-1551 Data Sheet
ARK-1551 Data Sheet
(Size: 1.3 MB)
PDF Document - ARK-1551 User Manual
ARK-1551 User Manual
(Size: 9 MB)
Specifications
ManufacturerAdvantech
Short Description ARK-1551 fanless embedded box PC is an application ready system platform solution. Its electronics are protected in a compact sealed aluminum case for easy integration into a specific housing, or as a stand-alone application.
EnclosureAluminum housing
MountingWall Mounting (Default); VESA & DIN-Rail Mounting (Optional)
CPUARK-1551-S6A1: Intel Core i5-8365UE
ARK-1551-U2A1: Intel Core i3-8145UE
ARK-1551-U0A1: Celeron 4305UE
FrequencyARK-1551-S6A1: 1.6 GHz, turbo burst up to 4.1 GHz
ARK-1551-U2A1: 2.1 GHz, turbo burst up to 3.9 GHz
ARK-1551-U0A1: 2.0 GHz
L3 CacheARK-1551-S6A1: 6MB
ARK-1551-U2A1: 4MB
ARK-1551-U0A1: 2MB
Memory32GB DDR4 2400MHz (each memory slot support up to 16GB)
StorageSSD/HDD: 1 x Swappable 2.5" SATAIII drive bay (compatible with 7mm height)
mSATA: 1 x full-size mSATA (share with mPCIe slot)
PCIe Support: 2x Advantech SQF PCIex2 NVMe storage (1 x M.2 2230 E Key + 1 x mPCIe)
Network (LAN)LAN1: 10/100/1000 Mbps Intel i210GbE, support Wake On LAN
LAN2: 10/100/1000 Mbps Intel i219GbE, support Wake On LAN
I/OSeriel Ports: 4 x RS-232/422/485 support from 50 bps to 921.6 kbps, with auto flow control. COM3 with 5V/12V power, by jumper setting
USB Ports: 4 x USB 3.1 Gen2, Type A connector
GPIO: 8-bit programmable DIO
Expansion Slots Mini PCIe: 1 x full-size mPCIe with 1x nano SIM holder (PCIe x2, USB 2.0x1, UIM, SATA x1)
M.2: 1 x M.2 2230 E key for WiFi module (PCIe x2, USB 2.0x1)
Humidity95% @ 40 °C (non-condensing)
Operating TemperatureWith extended temp. peripherals: -20 ~ 55 °C (-4 ~ 131 °F) with 0.7 m/s air flow
With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104 °F) with 0.7 m/s air flow
Storage Temperature-40 ~ 85 °C (-40 ~ 185°F)
ShockWith SSD: 30 G, IEC-60068-2-27, half sine, 11 ms duration
Vibration ProtectionWith SSD: 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
EMCCE/FCC Class B, CCC, BSMI
SafetyUL, CB, CCC and BSMI
Power Input Voltage12 ~ 24 VDC @ -10%/+20%
OS SupportMicrosoft Windows: Windows 10 Enterprise
Linux: Ubuntu Desktop 20.04 LTS 64bit
