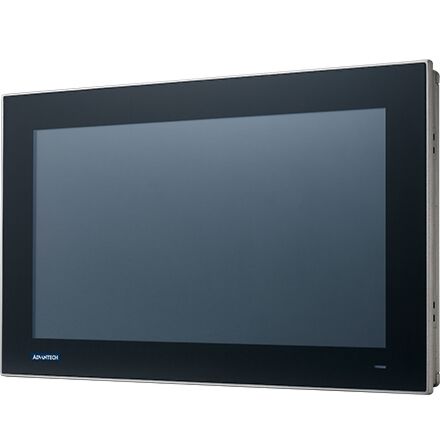

FPM-221W 21.5" Full HD Industrial Monitor
FPM-221WStarting at $1,250.00
- 21.5" Full HD TFT LED LCD with true flat touchscreen
- 16:9 wide screen aspect ratio, increase viewing area by 40%
- Supports 10 point multi touch control via USB interface in Windows 7/8/10 OS
- Slim design enables easy installation
- Supports various mount options: panel, desktop, and VESA ARM
- Touchscreen with reliable glass surface and P-CAP touch control
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy frot bezel
- Lockable I/O connections
Frequently Asked Questions
The FPM-221W has an HDMI video port for connecting a video source, and a USB interface for the P-CAP touchscreen. It also has a DC jack for power input.
The FPM-221W is powered by an included external 60 W power adapter. The adapter accepts AC 100 V ~ 240 V input and outputs DC +12 V @ 5 A.
The FPM-221W operates from 0 ~ 50°C (32 ~ 122°F) and can be stored from -20 ~ 60°C (-4 ~ 140°F), with storage humidity of 10 ~ 95% non-condensing. It is certified to BSMI, CCC, CE, FCC Class A, UL, and CB standards. The front panel is IP66 compliant for waterproofing.
The P-CAP touchscreen supports Windows 7, 8, 10, XPe, CE, and Linux. 10-point multi-touch is supported via USB interface in Windows 7/8/10 and Linux.
The FPM-221W supports panel mounting and VESA arm mounting. A desktop mounting kit (FPM-1000T-SMKE) is available as an optional accessory.
The FPM-221W measures 558.4 x 349.8 x 56.2 mm (21.98 x 13.77 x 2.21 in) and weighs 6 kg (13.23 lb) net. The cut-out dimensions for panel mounting are 550.30 x 341.8 mm (21.67 x 13.46 in).
The FPM-221W features a 21.5" Full HD TFT LED LCD with a maximum resolution of 1920 x 1080 and 16.7M colors. It has a 178/178° viewing angle (H/V) and a 1000:1 contrast ratio.
The FPM-221W-P4AE has a direct HDMI input, while the FPM-221W-P1AE has a direct VGA input. Both include a power adapter.
How-to Guides
- Use the included external 60 W power adapter, which accepts AC 100 V ~ 240 V input.
- Connect the adapter output (DC +12 V @ 5 A) to the DC jack (12VDC/GND) on the monitor.
- Secure the adapter connection using the cable lock for adapter (plug bracket and screws) included in the packing list.
- For panel mounting, prepare a cut-out of 550.30 x 341.8 mm (21.67 x 13.46 in).
- Insert the monitor into the panel cut-out.
- Use the included clampers (12x) and clamper screws (12x, M6*21L) to secure the monitor to the panel from the rear.
- Alternatively, use the VESA mount points on the rear of the unit to attach a VESA arm.
- Connect the included HDMI cable (19P male/19P male, 2M) from the video source to the HDMI port on the rear of the monitor.
- Connect the included USB touch cable (USB-A 4P male/USB-B 4P male, 169CM) from the host computer to the USB touchscreen interface on the monitor.
- Secure the HDMI connector using the included cable lock (fixed rail and fixed ring) if desired for a locked, industrial-grade connection.
| Manufacturer | Advantech |
|---|---|
| Video Port | HDMI |
| DC Input | Included AC/DC Adapter |
| Power Adapter | Included |
| Dimension | 558.4 x 349.8 mm |
| Weight | 6 Kg / 13.23 lbs |
| Mounting | per order selection |
| Operating Temperature | 0-50C (32-122F) |
| Storage Temperature | -2--60C (-4-140F) |
| Humidity | 10-95% non-condensing |
| Vibration | 5500 Hz 1 Grms random operation |
| Viewing Angle | 178/178 |
| Luminance | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Max Colors | 16.7M |
| Display Size | 21.5" |
| Backlight Lifetime | 50,000 hrs |
| Max Resolution | 1920 x 1080 |
| Display Type | Full HD TFT LED LCD |
| Touchscreen Interface | P-CAP |
| Brightness | 200-299 nit |
| Resolution | 1920 x 1080 |
| Screen Size | 20" and up |
| Video Output | HDMI |
