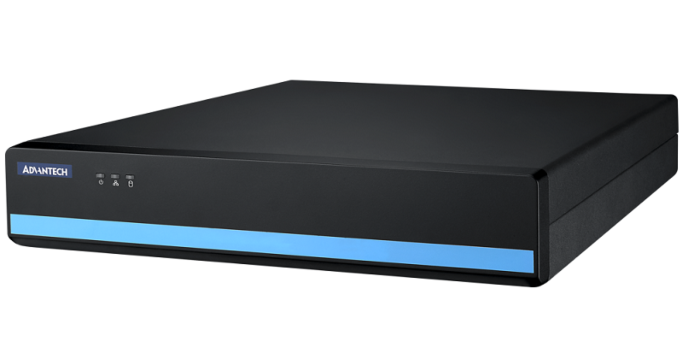

MIC-710IVA 8CH Video system with NVIDIA Jetson NANO
MIC-710IVAStarting at $865.00
- NVIDIA Jetson NANO embedded
- Support 8CH PoE video Input
- Bundled with Linux Ubuntu 18.04 with BSP
- Low power consumption
- H.264/H.265 camera supported
Frequently Asked Questions
The MIC-710IVA is built around the NVIDIA Jetson NANO System-on-Module, which includes a Quad Core ARM Cortex A57 CPU (max operating frequency 1.43GHz) and a Maxwell GPU with 128 CUDA cores (performance up to 512 GFLOPS FP16, max frequency 921MHz). It has 4GB of LPDDR4 memory and 16GB of eMMC flash storage.
The MIC-710IVA provides the following I/O:
- 1x HDMI display output (max resolution 3840x2160 @ 60Hz)
- 1x USB 3.0 port
- 1x USB 2.0 port
- 1x internal USB 2.0 OTG port
- 1x RS-485 COM port
- 8-bit DI/DO
- 1x Power ON/OFF switch
- 1x RJ45 Ethernet port (10/100/1000 Mbps, Intel i211AT controller)
Yes. The MIC-710IVA supports 8 channels of PoE video input, compliant with IEEE 802.3af, with a PoE power output of 15.4W per channel. The PoE bandwidth is 10/100 Mbps, and the system supports H.264 / H.265 camera streams. The PoE controller is a MICROSEMI PD69104B1ILQ with a Realtek RTL8316SI LAN switch.
The MIC-710IVA uses an AC100-240V, 250W ATX power supply.
The MIC-710IVA operates from 0 to 40 °C with 0.7 m/s air flow. Operating humidity is rated up to 95% at 40 °C (non-condensing). It has a vibration rating of 0.5 Grms @ 5~500 Hz, random, 1 hr/axis. Certifications include CE/FCC/BSMI/CCC, and it is RoHS compliant (2002/95/EC).
The system has 2 internal 3.5" HDD bays. Using the optional 989K008734 module, each 3.5" bay can instead hold two 2.5" HDDs, allowing up to 4 x 2.5" drives. There are 2 SATA ports available for these drives.
The MIC-710IVA is bundled with Linux Ubuntu 18.04 with BSP (Board Support Package).
The MIC-710IVA measures 300 x 330 x 57mm (11.8" x 13" x 2.24", W x D x H) and weighs 3 kg. It is designed for desktop installation.
How-to Guides
- Locate the 2 internal 3.5" HDD bays on the MIC-710IVA.
- To install 3.5" HDDs, mount the drives directly into the bays using the included 3.5" HDD Bay bracket (1960091140N000).
- To install 2.5" HDDs instead, use the optional 989K008734 module, which securely fixes two 2.5" HDDs into one 3.5" HDD bay, allowing up to 4 x 2.5" HDDs total.
- Connect each drive using the included HDD SATA Cable (1700017161-21). There are 2 SATA ports available.
- Identify the PoE CH1-CH8 ports on the rear view of the unit.
- Connect each H.264 or H.265 PoE camera to one of the 8 PoE channels using standard Ethernet cabling.
- Each PoE channel supplies up to 15.4W and is IEEE 802.3af compliant, so no external camera power injector is required.
- Check the PoE LED indicators on the rear panel to confirm each camera connection is active.
- Connect an AC100-240V power source to the ATX 250W power supply input on the rear of the unit.
- Use the appropriate power cord for your region: UL Power Cord (1700027928-01, 125V/15A), BSMI Power Cord (1700027909-02, 125V/15A), or EU Power Cord (1702002605, 250V/10A).
- Use the Power ON/OFF switch on the front panel to power the unit on.
MIC-710IVA is the ARM based system which integrated NVIDIA® Jetson™ NANO System-on-Module processor, providing 128 CUDA® cores. It is designed for the edge AI video system which supports rich I/O with low power consumption. The system has 4GB LPDDR4 memory, 4K video decode/encode, 8ch POE and 2 x 3.5" HDD expansion.
| Manufacturer | Advantech |
|---|---|
| Short Description | The MIC-710IVA is a rugged PC capable of performing many AI applications. It includes the NVIDIA Jetson NANO embedded system, providing plenty of power in a small form factor. Its low power consumption and support for 8CH PoE video input make it well-equipped for many industrial tasks. It has 4GB LPDDR4 memory and is capable of 4K video decode/encode. |
| Processor | Quad Core ARM Cortex A57 |
| Graphics | Maxwell GPU, 128 CUSA Core, up to 512GFLOPS (FP16) |
| Memory | 4GB LPDDR4 |
| PoE | 8x RJ45 |
| Ethernet Standard | IEEE 802.3af |
| Video Port | HDMI |
| DIO | 4ch IN 4ch OUT |
| 2.5" Drive | in 3.5" bays |
| DC Input | built in |
| Power Adapter | built in |
| Power Type | 250W ATX DC built in |
| Dimension | 300 x 330x x57 mm |
| Weight | 3 kg unboxed |
| Humidity | see manual |
| Vibration | see manual |
| Shock | see manual |
| CPU Cores | 4 |
| Base CPU Speed | Under 2.0 Ghz |
| Video Output | HDMI |
| LAN Ports | 1-4 |
| Serial Ports | 1-2 |
| USB 2.0 | 1-2 |
| USB 3.0 | 1-2 |
| Max Memory | 4 GB |
| Operating System | Linux |
| Native Storage Type | 2.5" SSD, 3.5" HDD |
