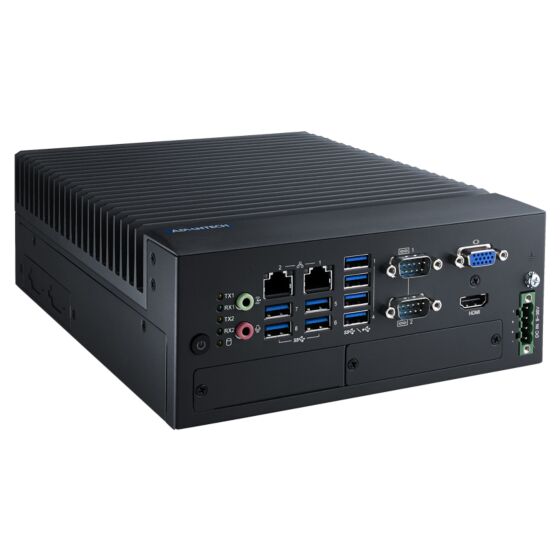

MIC-770 V3 Compact Fanless System with 12th/13th Gen Intel Core i CPU Socket (LGA 1700)

MIC-770 V3

Starting at $1,275.00

  • Intel® 12th Gen Core™ i CPU socket-type (LGA1700) with Intel® R680E/H610E chipset
  • Wide operating temperature (-20 ~ 60 °C)
  • VGA and HDMI output
  • 2 x GigaLAN, 2 x USB 3.2 (Gen2) and 6 x USB 3.2 (Gen1)
  • 2 x RS-232/422/485 and 4 x RS232 serial ports (Optional)
  • 1 x 2.5" HDD/SSD, 1 x mSATA, and 1 x NVMe M.2
  • 9 ~ 36 VDC input power range
  • IP40 dust proof for deployment in harsh environment
  • Supports FlexIO and iDoor technology, flexible configure additional HDMI, DP, DVI, COM port, DIO, Remote switch IO
  • Supports Advantech i-Modules
  • Supports Advantech SUSIAPI and embedded software APIs
  • Supports Intel® vPro™/AMT and TPM technologies
  • Supports Advantech iBMC 1.2 remote out-of-band power management solution on DeviceOn
PDF Document - MIC-770 V3 Data Sheet
MIC-770 V3 Data Sheet
(Size: 2.2 MB)
PDF Document - MIC-770 V3 User Manual
MIC-770 V3 User Manual
(Size: 9.1 MB)

System Configuration


* Selection required

Your Configuration
MIC-770 V3 Compact Fanless System with 12th/13th Gen Intel Core i CPU Socket (LGA 1700)
MIC-770 V3 Compact Fanless System with 12th/13th Gen Intel Core i CPU Socket (LGA 1700)

In stock

$1,275.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

Compact Fanless System with 12th Gen Intel® Core™ i CPU Socket (LGA 1700)
PDF Document - MIC-770 V3 Data Sheet
MIC-770 V3 Data Sheet
(Size: 2.2 MB)
PDF Document - MIC-770 V3 User Manual
MIC-770 V3 User Manual
(Size: 9.1 MB)
Specifications
Product Available OnAug 23, 2023
ManufacturerAdvantech
CPU FamilyIntel Celeron, Intel Core, Intel Pentium
Base CPU SpeedUnder 2.0 Ghz, 2.1 to 3.0 GHz, 3.1 to 3.5 GHz, Over 3.5 GHz
Video OutputVGA, HDMI
USB 2.01-2, 3-4
USB 3.21 - 4, 5 - 8
Max Memory2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB
Form FactorFanless
BIOSAMI 256Mb/128Mb SPI Flash
Certification

EMC: CE/FCC Class A, CCC, BSMI
Safety: CB/UL, CCC, BSMI

CPU

12th Generation Processor (TDP 35W): i9-12900TE, i7-12700TE, i5-12500TE, i3-12100TE, Pentium G7400TE, Celeron G6900TE

12th Generation Processor (TDP 65W): i9-12900(E), i7-12700(E), i5-12500(E), i3-12100(E), G7400E (46W), G6900E (46W)

Memory

Technology Dual-channel DDR4 2933/2666 MHz (W480E SKU supports ECC)

Socket 2 x 260-pin DDR4 SODIMM (up to 32GB per socket)

Maximum Capacity 64GB

Storage

HDD: 1 x 2.5" HDD/SSD (up to 2 x 2.5" SSD by optional kit; 2 x 3.5" HDD by i-Module)

mSATA: 1

NVMe: M.2 1 x M Key 2280 with PCIe Gen 4 x 4 (R680E SKU, operating temp. -20 ~ 50 °C)

RAID: 0/1/5/10 (R680E SKU only)

I/O

USB: R680E: 2 x USB3.2 (Gen2), 6 x USB3.2 (Gen1), 1 x USB 2.0 (Internal) H610E: 4 x USB3.2 (Gen1), 4 x USB2.0

Serial Port: 2 x DB9, RS-232/422/485 support auto flow control; 4 x RS-232 (Optional)

Audio: 2 (1 x line out and 1 x mic in)

Expansion Slots

Module: Supports Advantech i-Modules

Mini PCIe/mSATA: R680E: 1 x mini PCIe, 1 x mini PCIe/mSATA H610E: 1 x mini PCIe, 1 x mSATA

Watchdog TImer

Output: System reset

Programmable: 1 ~ 255 sec/min

Humidity95% @ 40 °C (non-condensing)
Operating Temperature

65W CPU w/ industrial wide Temp. SSD: -20 ~ 50 °C with 0.7 m/s air flow

35W CPU w/ industrial wide Temp. SSD: -20 ~ 60 °C with 0.7 m/s air flow

Non-operating: -40 ~ 85 C

ShockWith SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration
Power Input Voltage9 ~ 36 VDC
Power Consumption

9~19VDC support total 140W, 19~36V support total 180W for system and Peripheral card

Weight2.8 kg (6.17 lbs)
Dimension77 x 192 x 230 mm (3.07" x 7.55" x 9.05")
