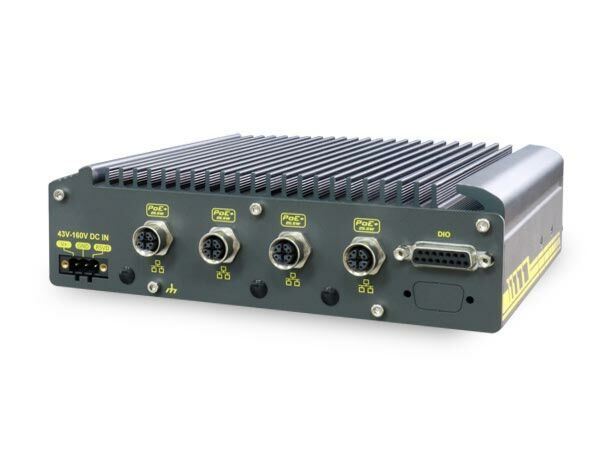

Nuvo-2615RL Series: EN50155 & EN45545 Intel Elkhart Lake Atom x6425E Railway Computer Supporting 110 VDC Input and 4x M12 PoE+
Nuvo-2615RL SeriesStarting at $1,500.00
- Compliant with EN 50155 mandatory tests and EN 45545-2
- Rugged -40°C to 70°C fanless operations, compliant with EN 50155 Class OT4
- 43V to 160V wide-range DC input with 1500Vdc insulation
- Intel Elkhart Lake Atom x6425E quad-core 2.0GHz/ 3.0GHz 12W processor
- 4x PoE+ GbE ports via M12 x-coded connectors
- Built-in SuperCAP UPS for power interruptions > 30 seconds
(Nuvo-2615RL only) - 1x front-accessible 2.5” 15mm HDD tray and 1x M.2 2280 SATA SSD
- 2x full-size mini-PCIe sockets and 1x M.2 3042/3052 B Key
Frequently Asked Questions
The Nuvo-2615RL provides:
- 4x Gigabit Ethernet PoE+ ports via M12 X-coded connectors (Intel I210 controller)
- 1x USB 3.1 Gen1 (5 Gbps) port with screw-lock
- 2x USB 2.0 ports with screw-lock
- 1x DVI-I port (supports both DVI and VGA signals, up to 1920x1080)
- 1x isolated RS-485 port with 15 kV ESD protection (COM1)
- 3x 3-wire RS-232 ports or 1x RS-422/485 port (COM2/3/4, configurable in BIOS)
- 1x 3.5 mm 4-pole audio jack for mic-in and speaker-out
- 4-channel isolated digital input and 4-channel isolated digital output
The system accepts an isolated 43V to 160V DC input via a 3-pin pluggable terminal block with 1500Vdc insulation. Supplying voltage over 160V will damage the system. Maximum power consumption is 32W at 35V under 100% CPU loading, or 135W at 35V when 4x PoE+ ports are also drawing 25.5W each.
Yes. The Nuvo-2615RL includes a built-in SuperCAP UPS module with 2500 watt-second capacity that can sustain the system through power interruptions greater than 30 seconds. If the outage exceeds the sustainable duration, the internal microcontroller triggers a software shutdown to protect the hardware and data. This feature is exclusive to the Nuvo-2615RL model (not the Nuvo-2610RL).
The Nuvo-2615RL operates fanless from -40°C to 70°C, compliant with EN50155 Class OT4. Storage temperature range is -40°C to 85°C. It carries EN50155 Class S3, EN50155 C2 compliance, all mandatory sections of EN 50155:2017, EN 45545-2 fire protection certification, EN 50155:2017 Clause 13.4.8 EMC compliance, and CE/FCC Class A per EN 55032 & EN 55035. Note: for sub-zero or over 60°C operation, a wide-temperature HDD or SSD is required.
The system supports up to 32GB DDR4-3200 SDRAM via one SODIMM socket. Storage options include one internal M.2 2280 M-key socket (SATA interface only) for an SSD, plus one front-accessible 2.5" HDD/SSD tray supporting drives up to 15mm in height and 5TB capacity.
The Nuvo-2615RL provides two full-size mini-PCIe sockets (one with PCIe and USB 2.0 signal, one with USB 2.0 signal only) for WiFi, GNSS, or CAN bus modules, and one M.2 3042/3052 B-key socket with USB 3.1 + USB 2.0 signal and dual internal micro-SIM sockets for 4G/5G mobile broadband modules.
Due to Intel's driver policy, the system officially supports Windows 10 64-bit (Professional and IoT Enterprise editions). For Linux, kernel versions no later than 5.8 are supported; Ubuntu 20.04.2 LTS (5.8 kernel) has been tested. For Linux, the Intel I210 GbE driver may need to be manually compiled if not embedded in the kernel.
The system ships standard with a damping bracket, intended for in-vehicle deployments. An optional wall-mount bracket is also available as an accessory. Dimensions are 205 mm (W) x 156 mm (D) x 86 mm (H), and weight is 2.7kg.
The Nuvo-2615RL adds a built-in SuperCAP UPS (2500 watt-second) module not present on the Nuvo-2610RL. The Nuvo-2615RL is also taller (86 mm vs. 58 mm) and heavier (2.7kg vs. 2.1kg). EN50155 certification also differs: Nuvo-2610RL is EN50155 Class S1, C1, while Nuvo-2615RL is EN50155 Class S3, C2.
How-to Guides
- Disassemble the system enclosure as described in the disassembly section for your model.
- Remove the screws securing the heatsink to expose the SODIMM slot on the motherboard.
- Insert the gold fingers of the memory module into the slot at a 45 degree angle.
- Push down on the edge of the module until the side clips secure it into position.
- Reinstall the system enclosure or panel when done.
- Disassemble the system enclosure as described in the disassembly section for your model.
- Remove the screws indicated and remove the heatsink to access the M.2 slot.
- Insert the M.2 2280 module at a 45 degree angle.
- Gently press down and secure the module with an M3 P-head screw.
- Reinstall the system enclosure or bottom panel when done.
- Place the system on a flat, sturdy surface and turn the thumb screws on the tray anti-clockwise.
- Gently pull out the 2.5" HDD/SSD tray. With the HDD/SSD label facing down, secure the drive using the provided screws (two on each side).
- Insert the tray back into the slot until you feel resistance, then secure it by tightening the thumb screws clockwise.
- Disassemble the system enclosure and remove the heatsink to access the M.2 B-key and SIM card slots.
- Slide the metallic SIM cover in the direction shown and lift it to expose the socket and gold fingers.
- Place the micro-SIM card in the correct orientation, lower the cover, and slide it to secure the SIM card.
- Insert the M.2 3042/3052 module at a 45 degree angle into the slot and secure it with the provided screw.
- Reinstall the system enclosure or bottom panel when done.
- Press F2 during boot to enter BIOS setup.
- Go to
Power>Wake on LANand set it toEnabled. - Press F10 to save changes and exit BIOS, allowing the system to boot into the operating system.
- In Windows, open Network Connections, right-click the Intel I210 Gigabit Network Connection adapter, and select Configure.
- On the Power Management tab, enable the option(s) to allow the device to wake the computer, then click OK.
The Nuvo-2615RL series is an EN50155 and EN45545-compliant, fanless Intel Atom-based railway computer for video-based rolling stock applications such as NVR (network video recorder) and video analytics.
Nuvo-2615RL has a dedicated thermal design to meet EN50155 OT4 class (-40°C to 70°C) fanless operation with max CPU performance and up to 50W PoE+ delivery. To overcome the challenging railway conditions, from voltage fluctuations to power outage interruptions, Nuvo-2615RL is equipped with an isolated wide 43V to 160V DC input design and a built-in SuperCAP UPS to sustain more than 30 seconds of operation time without power supply. If power outage time exceed the sustainable duration, the internal microcontroller (MCU) will trigger a software shutdown before running out of SuperCAP energy to protect the hardware, data, and minimize maintenance costs.
Powered by Intel Elkhart Lake Atom x6425E quad-core CPU, the Nuvo-2615RL series delivers 1.8x the CPU performance compared with Intel's previous Atom generation, Apollo Lake. The Nuvo-2615RL series features 4x PoE+ GbE ports with up to 50W total power budget for IP camera connectivity. In addition to the internal M.2 2280 SATA SSD for system storage, Nuvo-2615RL has one front-accessible 2.5" HDD tray accommodating a 2.5" SATA HDD/SSD up to 15mm in height and 5TB in capacity. For internal expansion, it provides two mini-PCIe sockets for WiFi, GNSS, and CAN modules. There is also an M.2 3042/3052 B Key socket for 4G/5G mobile broadband modules.
Integrating an Intel Atom quad-core x6425E, -40°C to 70°C fanless operations, M12 PoE+ connectivity, up to 5TB data storage capacity, 2500 wattsecond SuperCAP UPS, 43V to 160V wide-range DC input, and EN50155 and EN45545 compliance, the Nuvo-2615RL series is the ideal rugged transportation computer for vision-based rolling stock applications.
| Short Description | The Nuvo-2615RL series is an EN50155 and EN45545-compliant, fanless Intel Atom-based railway computer for video-based rolling stock applications such as NVR (network video recorder) and video analytics. |
|---|---|
| Processor | Intel Elkhart Lake Atom x6425E quad-core 2.0GHz/3.0GHz 12W processor |
| Graphics | Integrated Intel UHD Graphics |
| Memory | Up to 32 GB DDR4-3200 SDRAM by one SODIMM socket |
| PoE | 4x IEEE 802.3at Gigabit PoE+ ports by Intel I210 via M12 x-coded connectors Total PoE+ power budget: 50W (Nuvo-2615RL-H) |
| Video Port | VGA and DVI dual display outputs via DVI-I connector |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| DIO | 4-CH isolated DI and 4-CH isolated DO |
| M.2 | 1x M.2 3042/3052 B key (USB 3.1 + USB 2.0) for 4G/5G module with dual internal micro SIM socket |
| Mini PCI-E | 1x full-size mini PCI Express socket with PCIe and USB 2.0 signal 1x full-size mini PCI Express socket with USB 2.0 signal |
| SATA HDD | 1x front-accessible HDD tray for 2.5" HDD/ SSD installation (up to 15mm height) |
| mSATA | 1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation |
| DC Input | 1x 3-pin pluggable terminal block for isolated 43V to 160V DC input |
| Dimension | 205 mm (W) x 155 mm (D) x 58 mm (H) (Nuvo-2610RL) 205 mm (W) x 156 mm (D) x 86 mm (H) (Nuvo-2615RL) |
| Weight | 2.1kg (Nuvo-2610RL) 2.7kg (Nuvo-2615RL) |
| Mounting | Damping bracket (default) Wall-mount (optional) |
| Operating Temperature | -40°C to 70°C*, compliant with EN50155 Class OT4 |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90%, non-condensing |
| Vibration | IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) |
| Shock | IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) |
| EMC | EN 50155:2017, Clause 13.4.8 CE/FCC Class A, according to EN 55032 & EN 55035 |
| Capacity | 2500 watt-second (Nuvo-2615RL Only) |
