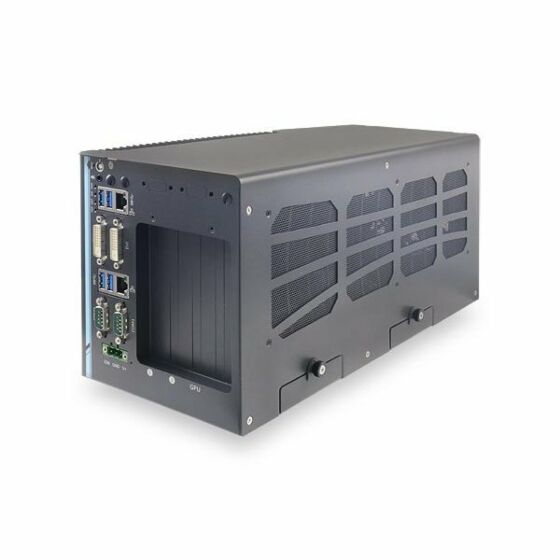

Nuvo-6108GC-IGN: Neousys Industrial-Grade GPU Computing Platform with built in Ignition Control
Nuvo-6108GC-IGNStarting at $1,940.00
- Supports Intel Xeon E3 v5 or 6th-Gen Core i7/i5 LGA1151 CPU
- Supports NVIDIA GPU (up to 250W TDP)
- Patented thermal design for -25 °C to 60 °C rugged operation
- Two x8, Gen3 PCIe slots for add-on cards
- Dual GbE ports and four USB 3.1 ports
- Four 2.5” SATA HDDs with RAID 0/1/5/10 support
- Three 2.5" SATA HDDs with RAID 0/1/5 support (Nuvo-6108GC-IGN)
- Patented easy-swap trays* for HDD replacement (Nuvo-6108GC-IGN)
- Automatic temperature sensing and fan control
- Patented damping brackets* to withstand 1 Grms vibration
- Built-in ignition control (Nuvo-6108GC-IGN)
Nuvo-6108GC series is the world’s first industrial-grade GPU computer supporting high-end graphics cards. It’s designed to fuel emerging GPU-accelerated applications, such as artificial intelligence, VR, autonomous driving, and CUDA computing by accommodating a 250W NVIDIA GPU. Leveraging the Intel C236 chipset, the Nuvo-6108GC series supports the Xeon E3 v5 or 6th-Gen Core i7/i5 CPU with up to 32 GB ECC/non-ECC DDR4 memory. It incorporates general computer I/O like Gigabit Ethernet, USB 3.1, and serial ports. In addition to the x16 PCIe port for GPU installation, the Nuvo-6108GC series has two x8 PCIe slots to install additional high-performance expansion cards with high bandwidths for data collection analytics and communication.
The Nuvo-6108GC series comes with a sophisticated power design that handles heavy power consumption and power transients of a 250W GPU. Furthermore, to have reliable GPU performance for industrial environments, the Nuvo-6108GC series utilizes Neousys’ patented design*, a tuned cold air intake to effectively dissipate the heat generated by GPU. This unique design guarantees operation at 60°C under 100% GPU loading, making the Nuvo-6108GC series extremely reliable for demanding field applications.
The new model Nuvo-6108GC-IGN features built-in ignition power control, and two of its three 2.5” drives come with Neousys’ patented easy-swap trays for simple HDD/ SSD replacement.
| Manufacturer | Neousys |
|---|---|
| Short Description | Nuvo-6108GC series is the world’s first industrial-grade GPU computer supporting high-end graphics cards. It’s designed to fuel emerging GPU-accelerated applications, such as artificial intelligence, VR, autonomous driving, and CUDA computing by accommodating a 250W NVIDIA GPU. |
| Processor | Intel Xeon E3 v5 or 6th-Gen Core LGA1151 CPU Intel Xeon Processor E3-1275 v5 (8M Cache, 3.6/ 4.0 GHz) Intel Xeon Processor E3-1268L v5 (8M Cache, 2.4/ 3.4 GHz) Intel Core i7-6700 (8M Cache, 3.4/ 4.0 GHz) Intel Core i5-6500 (6M Cache, 3.2/ 3.6 GHz) Intel Core i7-6700TE (8M Cache, 2.4/ 3.4 GHz) Intel Core i5-6500TE (6M Cache, 2.3/ 3.3 GHz) |
| Graphics | Independent GPU via x16 PEG port, or integrated Intel HD 530 controller |
| Memory | Up to 32 GB ECC/ non-ECC DDR4-2133 |
| Chipset | Intel C236 platform controller hub |
| Video Port | 2x DVI-D connectors for DVI outputs, supporting 1920x1200 resolution |
| Audio | 1x speaker-out |
| PCI Express | 1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals for GPU 2x PCIe x8 slot @ Gen3, 4-lanes PCIE signals |
| M.2 | 1x M.2 B key socket for 3G/4G options with SIM socket |
| Mini PCI-E | 1x full-size mini PCI Express socket |
| SATA | 4x SATA ports for 2.5” HDD/ SSD installation, supporting RAID 0/ 1/ 5/ 10 (Nuvo-6108GC) 2x easy-swap HDD trays for 2.5” HDD/ SSD installation (Nuvo-6108GC-IGN) 1x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1/ 5 (Nuvo-6108GC-IG |
| DC Input | 24 VDC |
| Remote Ctrl. & Status Output | 1x 2x6-pin 2.0mm pin-header connector for remote on/ off control and status LED output |
| Dimension | 178 mm (W) x 360 mm (D) x 174 mm (H) |
| Weight | 4.7 kg (incl. CPU, GPU, memory and HDD) |
| Input Connector | 3-pin pluggable terminal block for DC input (IGN/ GND/ V+) |
| Mounting | Wall-mount with damping brackets |
| Operating Temperature | -25°C ~ 60°C with 100% CPU/ GPU loading **/*** ** The CPU and GPU loading are applied using Passmark® BurnInTest 8.0 with 35 TDP CPU. Operating Temperature degrades with higher TDP CPU. For detail testing criteria, please contact Neousys Technology *** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required. |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ GPU, fan and HDD), according to IEC60068-2-64) |
| EMC | CE/ FCC Class A, according to EN 55022, EN 55024 & EN 55032 |
