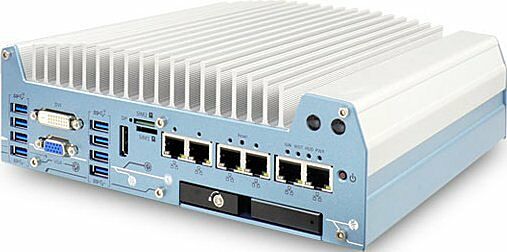

Nuvo-7000LP Neousys Intel 9th/ 8th-Gen Core™ i7/ i5 Fanless Controller with 6x GbE Ports, MezIO

Nuvo-7000LP

Starting at $1,275.00

Intel  9th/ 8th-Gen Core™ i7/ i5/ i3 Fanless Controller with 6x GbE Ports, MezIO™ Interface and Low-profile Chassis

Main Features

  • Intel® 9th/ 8th-Gen Core™ i hexa-core 35W/ 65W LGA1151 CPU
  • Low-profile chassis with hot-swappable 2.5” HDD/ SSD tray
  • MezIO™ interface for easy function expansion
  • Rugged, -25°C to 70°C fanless operation
  • Up to 6x GigE ports, supporting 9.5 KB jumbo frame
  • M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
  • 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
  • VGA/ DVI/ DP triple independent display, supporting 4K2K resolution



PDF Document - MezIO Compatibility Chart
MezIO Compatibility Chart
(Size: 799.9 KB)
PDF Document - Nuvo-7000LP Data Sheet
Nuvo-7000LP Data Sheet
(Size: 1.1 MB)

System Configuration


* Selection required

Your Configuration
Nuvo-7000LP Neousys Intel 9th/ 8th-Gen Core™ i7/ i5 Fanless Controller with 6x GbE Ports, MezIO
Nuvo-7000LP Neousys Intel 9th/ 8th-Gen Core™ i7/ i5 Fanless Controller with 6x GbE Ports, MezIO

In stock

$1,275.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

The Neousys Nuvo-7000LP series is powered by Intel® 9th/ 8th-Gen Core™ i processors with up to 6-core/ 8-core architecture that offer a significant performance improvement over previous 6th or 7th-Gen platforms.

Nuvo-7000LP series is a derivative of Nuvo-7000 series that features the same level of ruggedness and versatility in a 79 mm low-profile chassis. In addition to effective fanless design, proprietary MezIO™ interface and plethora of on-board I/O interfaces, Nuvo-7000LP series features one front-accessible, hot-swappable HDD/ SSD tray which can be configured as RAID 0/1 when combined with the internal SATA port. It also leverages cutting-edge M.2 NVMe SSD technology for over 2000MB/s disk read/ write speed, or install an Intel® Optane™ memory for the ultimate system acceleration.

Neousys Nuvo-7000LP series consolidates the latest Intel® hexa/octa-core CPU, high-speed I/O interfaces, super-fast disk access and flexible storage configuration to form a high-performance ruggedized embedded controller. In addition, you can also take advantage of the built-in MezIO™ interface to add on modules for application-specific I/Os.

Specifications
ManufacturerNeousys
Short Description Intel  9th/ 8th-Gen Core™ i7/ i5/ i3 Fanless Controller with 6x GbE Ports, MezIO™ Interface and Low-profile Chassis
Processor
Supporting Intel® 9th/ 8th-Gen CPU (LGA1151 socket, 65W/ 35W TDP)

Intel® Core™ i7-9700E/ i7-9700TE/ i7-8700/ i7-8700T
Intel® Core™ i5-9500E/ i5-9500TE/ i5-8500/ i5-8500T
Intel® Core™ i3-9100E/ i3-9100TE/ i3-8100/ i3-8100T
Intel® Pentium® G5400/ G5400T
Intel® Celeron® G4900/ G4900T
GraphicsIntegrated Intel® UHD graphics 630
MemoryUp to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
Chipset

Intel® Q370 platform controller hub

AMTSupports AMT 12.0
PoEOptional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget
Video Port

1x VGA, supporting 1920 x 1200 resolution
1x DVI-D, supporting 1920 x 1200 resolution
1x DisplayPort, supporting 4096 x 2304 resolution

Audio1x 3.5 mm jack for mic-in and speaker-out
M.21x M.2 2242 B key socket with dual front-accessible SIM sockets
Mini PCI-E1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
SATA HDD

1x front-accessible, hot-swappable 2.5” HDD/ SSD tray

1x internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1

mSATA1x full-size mSATA port (mux with mini-PCIe)
DC Input

1x 3-pin pluggable terminal block for 8 to 35V DC input

Dimension240 mm (W) x 225 mm (D) x 79 mm (H)
Weight3.1 kg
MountingWall-mounting (standard) or DIN-Rail mounting (optional)
Operating Temperature

With 35W CPU

- 25°C ~ 70°C */**

With 65W CPU

- 25°C ~ 70°C */** (configured as 35W TDP)
- 25°C ~ 50°C */** (configured as 65W TDP)



Storage Temperature-40°C ~ 85°C
Humidity10% ~ 90% , non-condensing
VibrationOperating, MIL-STD-810G, Method 514.6, Category 4
ShockOperating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC

CE/FCC Class A, according to EN 55032 & EN 55024

CPU Cores6, 8
CPU FamilyIntel Core
Base CPU Speed2.1 to 3.0 GHz, 3.1 to 3.5 GHz
Video OutputDisplay Port, DVI-D, VGA
LAN Ports5-8
Serial Ports3-4
USB 3.15-8
Max Memory64 GB
Operating SystemWindows 10, Linux
Effective Memory Speed2400 MHz, 2666 MHz
Form FactorFanless
Native Storage Type2.5" SSD, mSATA Full, M.2 NVMe SSD, Hot Swap Capable
On/IgnitionRemote On/Off
