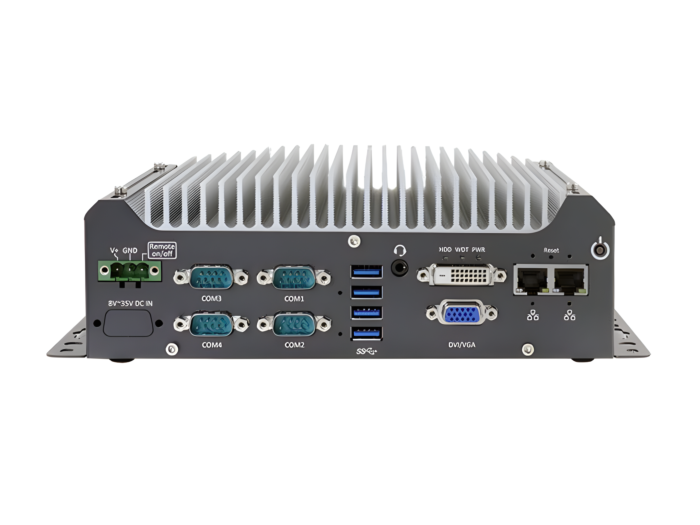

Nuvo-7501: Intel 9/8th-Gen Core i7/i5/i3 Compact Rugged Fanless Computer with 2x GbE and 6x COM

Nuvo-7501 Series

Starting at $1,000.00

The Nuvo-7501 series is a cost-effective, compact, and powerful fanless embedded computer with a footprint of 255 x 173 x 76 mm. Powered by an Intel 8th/9th-Gen Core hexa/octa core CPU, it offers more than 50% computation performance improvement over the previous generation.

  • Compact 255 x 173 x 76 mm footprint
  • Intel 9th/8th-Gen Core 35W LGA1151 CPU
  • Rugged, -25°C to 60°C fanless operation
  • 2x GbE and 4x USB3.0
  • 2x RS-232/422/485 and 2x RS-232 ports
  • VGA + DVI dual display outputs
  • Supports 1x M.2 2280 SSD (SATA signal)
  • Supports 1x 3.5" or 2.5" SATA HDD/ SSD
PDF Document - Nuvo-7501 User Manual
Nuvo-7501 User Manual
(Size: 4.3 MB)
PDF Document - Nuvo-7501 Data Sheet
Nuvo-7501 Data Sheet
(Size: 1.3 MB)

System Configuration


* Selection required

Your Configuration
Nuvo-7501: Intel 9/8th-Gen Core i7/i5/i3 Compact Rugged Fanless Computer with 2x GbE and 6x COM
Nuvo-7501: Intel 9/8th-Gen Core i7/i5/i3 Compact Rugged Fanless Computer with 2x GbE and 6x COM

In stock

$1,000.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

The Nuvo-7501 series is a cost-effective, compact, and powerful fanless embedded computer with a footprint of 255 x 173 x 76 mm. Powered by an Intel 8th/9th-Gen Core hexa/octa core CPU, it offers more than 50% computation performance improvement over the previous generation. The Nuvo-7501 series is designed to be compact and straightforward, while retaining the essential elements of a rugged, embedded, fanless solution. It features 2x GbE, 4x USB3.0, and 6x COM ports for industrial applications.

In addition to the M.2 2280 SATA SSD, it can also support a 2.5” SSD/HDD or a 3.5” HDD. For Nuvo-7505D, it offers isolated DIO and isolated COM, which can protect the controller against ground loops in harsh environments. The Nuvo-7501 series is a cost-effective solution that utilizes high-quality materials and stringent design flow and test procedures. The Nuvo-7501 series is an ideal fanless embedded solution that hits the sweet spot in terms of cost, size, and performance for industrial applications.

Specifications
ManufacturerNeousys
Short Description

The Nuvo-7501 series is a cost-effective, compact, and powerful fanless embedded computer with a footprint of 255 x 173 x 76 mm. Powered by an Intel 8th/9th-Gen Core hexa/octa core CPU, it offers more than 50% computation performance improvement over the previous generation.

Processori3, i5, i7 8th and 9th Gen
GraphicsIntegrated Intel UHD graphics 630
Memoryup to 32GB 2400/2666MHz
ChipsetIntel H310 platform controller hub
PoEno
Ethernet StandardI219 I210
Video Port1 VGA, 1 DVD-D
Audio1 mic in / speaker out
DIONuvo-7505D only 8-CH isolated DI 8-CH isolated DO
M.21x SATA III storage, 1x 2242 B key with internal SIM
Mini PCI-E1x expansion
2.5" Drive1x for 2.5" or 3.5" HDD/SSD
DC Input8-35V DC
Power Adapter120W or 160W AC/DC with US Cord
Power TypeDC
Remote Ctrl. & Status OutputOptional cord
Dimension255 x 76 x 173mm
MountingWall Standard, DIN Option
Operating Temperature-25-60C with 35W CPU
Storage Temperature-40-85C
Humidity10%-90% non condensing
VibrationMIL-STD-810G
ShockMIL-STD-810G
Ultracapacitor Configuration option
CPU Cores4, 6, 8
CPU FamilyIntel Core
Base CPU Speed2.1 to 3.0 GHz, 3.1 to 3.5 GHz
Video OutputDVI-D, VGA
LAN Ports1-4
Serial Ports3-4, 5-6
USB 3.11-4
Max Memory32 GB
Operating SystemWindows 10, Linux
Effective Memory Speed2400 MHz, 2666 MHz
Form FactorFanless
Native Storage Type2.5" SSD, 3.5" HDD, M.2 SATA S80
On/IgnitionRemote On/Off
