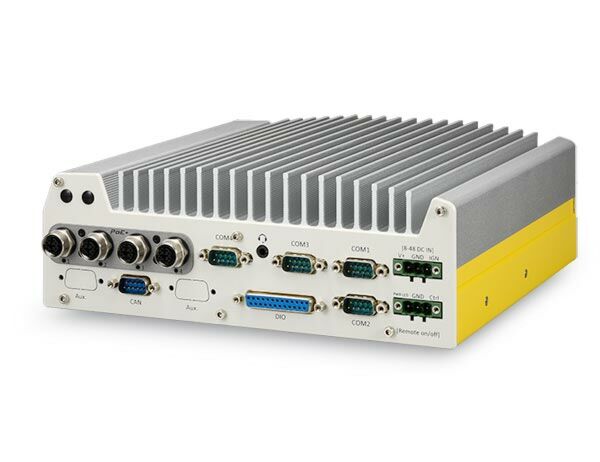

Nuvo-9100VTC: Intel 12/13/14th-Gen Core In-Vehicle Controller with 4x M12, 4x RJ45, and 8x RJ45 PoE+ Ports
Nuvo-9100VTC SeriesStarting at $2,100.00
- Supports Intel 12th/13th/14th-Gen Core 24C/32T 35W/65W CPU
- 4x or 8x 802.3at PoE+ ports via M12 or RJ45 connectors
- 1x USB 3.2 Gen2x2 type-C and 8x USB 3.2/ 2.0 type-A ports
- On-board isolated CAN bus for in-vehicle communication
- 4-CH isolated DI and 4-CH isolated DO
- M.2 Gen4 x4 NVMe SSD slot
- 8V to 48V wide-range DC input with built-in ignition power control
- 2x SATA ports with 1x hot-swappable HDD tray, supporting RAID 0/1
- E-Mark/EN 45545 certified and EN 50155 EMC compliant
Frequently Asked Questions
The Nuvo-9100VTC Series provides the following I/O:
- 1x 2.5GbE port and 1x GbE port
- 4x or 8x 802.3at PoE+ ports (via M12 X-coded connectors on Nuvo-9100VTC, or RJ45 on Nuvo-9104VTC/9108VTC)
- 1x USB 3.2 Gen2x2 (20Gbps) type-C port with screw-lock
- 4x USB 3.2 Gen2x1 (10Gbps) type-A ports
- 2x USB 3.2 Gen1x1 (5Gbps) type-A ports
- 2x USB 2.0 ports
- 1x isolated CAN 2.0 port
- 1x VGA, 1x DVI-D, and 1x DisplayPort video output
- 2x software-programmable RS-232/422/485 ports (COM1/COM2) and 2x RS-232 ports (COM3/COM4)
- 4-CH isolated DI and 4-CH isolated DO
- 1x 3.5mm audio jack for mic-in and speaker-out
The system accepts a wide-range 8V to 48V DC input via a 3-pin pluggable terminal block, which also supports ignition (IGN) signal input for in-vehicle deployment. There is also a separate 3-pin terminal block for remote control and PWR LED output. Supplying a voltage over 48V will damage the system.
With a 35W CPU, the system operates from -40°C to 70°C with one memory module installed, or -40°C to 60°C with two memory modules installed. With a 65W CPU, operating temperature is limited to -40°C to 50°C (with two memory modules). For sub-zero operation, a wide-temperature HDD or SSD is required. Storage temperature is -40°C to 85°C, and humidity range is 10% to 90% non-condensing.
The system is E-Mark certified, EN 45545-2 certified, and complies with EN 50155 EMC requirements (via EN 50121). It also meets CE/FCC Class A per EN 55032 and EN 55035, and is rated to EN 50155:2017/IEC 61373 Category I, Class B (Body mounted) for both vibration and shock.
The system supports up to 64GB DDR5 4800 SDRAM across two SODIMM slots. For storage, it has one M.2 2280 M-key slot (PCIe Gen4 x4) for an NVMe SSD, plus 2x SATA ports supporting one hot-swappable 2.5" HDD tray and one internal 2.5" SATA drive, with RAID 0/1 support when both drives are populated.
Yes. The system has 1x full-size mini-PCIe socket, 2x full-size mini-PCIe sockets (USB signal only, with internal SIM sockets), and 2x M.2 2242/3052 B-key sockets with SIM slots for M.2 5G/4G modules. These sockets, combined with SMA antenna apertures on the panel, allow installation of 5G/4G, WiFi, GPS, or CAN modules for wireless communication.
Neousys has tested the system with Microsoft Windows 10 LTSC 2021 (x64) and Ubuntu 20.04.5 LTS, 22.04 LTS, 22.04.1 LTS, or other distributions with kernel version 5.15 or later. On Linux, users may need to manually compile drivers for Intel graphics or the I225/I226 GbE controller if not embedded in the kernel.
The Nuvo-9100VTC measures 240mm (W) x 225mm (D) x 84mm (H) and weighs approximately 3.7kg. It is designed for wall-mount installation with a damping bracket (standard) for in-vehicle deployment.
All three models share the same core specifications. The difference is in the PoE+ port implementation: Nuvo-9100VTC uses 4x M12 X-coded PoE+ connectors, Nuvo-9104VTC uses 4x RJ45 PoE+ connectors, and Nuvo-9108VTC uses 8x RJ45 PoE+ connectors (4x Gigabit and 4x 2.5GbE).
How-to Guides
- Locate the 3-pin pluggable terminal block on the rear panel, shared for DC power and ignition (IGN) input.
- Connect the car's Battery+ line (12V for sedan, 24V for bus/truck) to V+.
- Connect the car's Battery-/GND line to GND.
- Connect the vehicle's ACC line to IGN.
- Ensure the DC power source and IGN signal share the same ground. The IGN input accepts 8~48VDC; supplying a higher voltage may damage the system.
- Disassemble the system enclosure to access the M.2 2280 slot (you may not need to fully dismantle the system).
- Insert the M.2 NVMe SSD module into the slot at a 45-degree angle.
- Gently press down and secure the module with an M3 P-head screw.
- Remove the thermal pad protector film off the heatsink/support frame for the NVMe SSD.
- Reinstall the system enclosure and panel when done.
- Pull the lever on the 2.5" external hot-swappable slot to swing open the cover.
- With the label side facing upward, insert the SATA connector side of the 2.5" HDD/SSD into the slot first, pushing firmly until fully inserted.
- Push the lever into the slot until it snaps into position.
- Use the key provided in the accessory box to lock the external slot if desired.
- Remove any rubber stands attached to the bottom of the enclosure.
- Take the damping bracket and M4 screws out of the accessory box.
- Fix the damping bracket to the system enclosure using M4 screws.
- Place the system on a flat surface and secure it using M4 screws.
- Install at least two hard drives or SSDs in the system (RAID 0 or RAID 1 requires two drives).
- Press F2 at boot to enter BIOS setup, then go to Advanced > System Agent (SA) Configuration > VMD setup menu.
- Select Enable VMD controller, set it to Enabled, then press F10 to save and reboot.
- On reboot, press F3 to enter the Device Manager configuration utility and select Intel Rapid Storage Technology.
- Select Create RAID Volume, name the volume, choose RAID Level (RAID-0 or RAID-1), select the disks, set stripe size (if RAID-0) and capacity, then select Create Volume.
- Press F10 to save and Esc to exit once the volume is created.
The Nuvo-9100VTC is CoastIPC’s latest rugged in-vehicle controller, based on Intel 14th/13th/12th-Gen Core processors. Benefiting from cutting-edge Intel 7 photolithography, the latest Core desktop processors come with up to 24 cores and 32 threads, offering an incredible boost in computational performance. Combining DDR5 memory bandwidth throughput and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8 times compared to previous 10th or 11th Gen platforms.
Nuvo-9100VTC provides flexibility to support a range of peripherals and connections. It features 2.5Gb and 1Gb Ethernet ports, as well as four or eight 802.3at PoE+ ports, which supply 25W of power to connected devices, such as IP cameras. The system also has x-coded M12 connectors and screw-lock mechanisms on the computer I/Os, including Gigabit Ethernet, USB 3.2 Gen1, and USB 3.2 Gen2, to ensure extreme rugged connectivity in shock and vibration environments. Wireless connectivity is essential for modern-day in-vehicle applications, and you can simultaneously utilize two M.2 and three mini-PCIe sockets with corresponding wireless modules for 5G/ 4G, WiFi, GPS, and a CAN module for communication.
In addition to these features, the Nuvo-9100VTC also boasts an isolated CAN bus for in-vehicle communication, isolated DIO for sensor and actuator control, and a wide-range DC input of 8V to 48V with ignition power control. It is E-Mark/EN 45545 certified and EN 50155 EMC compliant, making it the perfect solution for various in-vehicle applications with extraordinary reliability.
| Manufacturer | Neousys |
|---|---|
| Short Description | The Nuvo-9100VTC is CoastIPC’s latest rugged in-vehicle controller, based on Intel 14th/13th/12th-Gen Core processors. Benefiting from cutting-edge Intel 7 photolithography, the latest Core desktop processors come with up to 24 cores and 32 threads, offering an incredible boost in computational performance. Combining DDR5 memory bandwidth throughput and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8 times compared to previous 10th or 11th Gen platforms. |
| Processor | Supporting Intel 14th-Gen Core CPU (LGA1700 socket, 65W/35W TDP):
Supporting Intel 13th-Gen Core CPU (LGA1700 socket, 65W/35W TDP)
Support Intel 12th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP):
|
| Graphics | Integrated Intel UHD Graphics 770 (32EU) |
| Memory | Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) |
| Chipset | Intel Q670E platform controller hub |
| AMT | Supports Intel vPro/ AMT 16.0 |
| PoE | 4x IEEE 802.3at Gigabit PoE+ ports by Intel I210:
4x IEEE 802.3at Gigabit PoE+ ports by Intel I210 and 4x 2.5G PoE+ ports by I225-IT:
|
| Video Port | 1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| DIO | 4-CH isolated DI and 4-CH isolated DO |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| SATA HDD | 1x hot-swappable 2.5" HDD tray (7mm HDD/ SSD) and 1x internal 2.5" SATA ports |
| DC Input | 1x 3-pin pluggable terminal block for 8V to 48V DC input (IGN/GND/V+) |
| Remote Ctrl. & Status Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Dimension | 240 mm (W) x 225 mm (D) x 84 mm (H) |
| Weight | 3.7kg |
| Mounting | Wall-mount with damping bracket |
| Operating Temperature | With 35W CPU:
With 65W CPU:
|
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90% , non-condensing |
| Vibration | EN 50155:2017/ IEC 61373, Category I, Class B - Body mounted |
| Shock | EN 50155:2017/ IEC 61373, Category I, Class B - Body mounted |
| EMC | E-Mark, EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035 |
