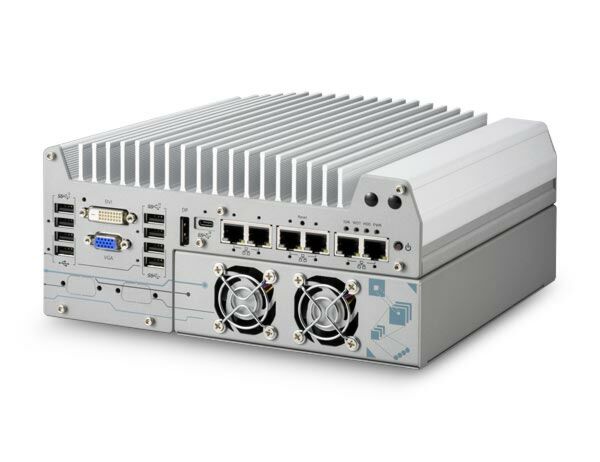

Nuvo-9160GC: Ruggedized AI Inference Platform supporting 130W NVIDIA RTX GPU and Intel 12/13th-Gen Core Processor

Nuvo-9160GC Series

Starting at $1,750.00

Nuvo-9160GC is a rugged edge AI computer that delivers superior CPU and GPU performance by leveraging Intel's 12/13th-Gen platform and an NVIDIA RTX GPU card up to 130W. The system’s standard and optional GPU brackets can accommodate selected GPU cards including RTX 3050, RTX 4060, NVIDIA RTX A2000, and RTX 4000 SFF Ada. The GPU bracket is designed to secure the GPU card to provide excellent shock and vibration resistance in volatile conditions.
  • Supports Intel 12/13th-Gen 35W/65W CPUs
  • Support NVIDIA RTX series GPU card up to 130W TDP
  • -25°C to 60°C wide temperature rugged operation
  • 5x 2.5GbE and 1xGbE with optional PoE+ (ports 3~6)
  • 1x USB 3.2 Gen2x2 type-C and 6x USB 3.2 type-A ports
  • M.2 2280 M key socket (Gen4x4) supporting NVMe SSD
  • Accommodates two 2.5" SATA HDD/ SSD with RAID 0/ 1 support
  • MezIO interface for add-on expansion
  • Ignition power control with 16 predefined modes
PDF Document - Nuvo-9160GC Data Sheet
Nuvo-9160GC Data Sheet
(Size: 622.1 KB)
PDF Document - Nuvo-9160GC User Manual
Nuvo-9160GC User Manual
(Size: 8.5 MB)

System Configuration


* Selection required

Your Configuration
Nuvo-9160GC: Ruggedized AI Inference Platform supporting 130W NVIDIA RTX GPU and Intel 12/13th-Gen Core Processor
Nuvo-9160GC: Ruggedized AI Inference Platform supporting 130W NVIDIA RTX GPU and Intel 12/13th-Gen Core Processor

In stock

$1,750.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

Nuvo-9160GC is a rugged edge AI computer that delivers superior CPU and GPU performance by leveraging Intel's 12/13th-Gen platform and an NVIDIA RTX GPU card up to 130W. The system’s standard and optional GPU brackets can accommodate selected GPU cards including RTX 3050, RTX 4060, NVIDIA RTX A2000, and RTX 4000 SFF Ada. The GPU bracket is designed to secure the GPU card to provide excellent shock and vibration resistance in volatile conditions.

Benefiting from the cutting-edge Intel 7 photolithography, Intel's 13th/12th Gen processors offer up to 24 cores/ 32 threads to provide up to double the performance when compared to previous Intel 11th/10th Gen CPUs. The latest NVIDIA 130W RTX GPU contributes up to 15 TFLOPS of FP32 performance to fuel real-time AI inference applications involving multiple cameras such as production line vision inspection, intelligent video analytics for surveillance or ITS, or autonomous mobile robot (AMR).

Nuvo-9160GC has a proven thermal design to guarantee reliable system operation from -25°C to 60°C. It features a passive-cooling design for the motherboard and segregated patented ventilation design* for the 130W GPU card within Neousys' patented expansion Cassette*. The support of six GigE cameras (or IP cameras) and six USB3 cameras makes Nuvo-9160GC ideal for various vision-based AI application deployments. It also provides flexible data storage options, including one M.2 2280 Gen4x4 NVMe providing up to 7000 MB/s extreme read/write speeds and two 2.5" SATA HDD/SSD to expand storage capacity.

With performance enhancements and comprehensive I/Os, Nuvo-9160GC is the perfect edge AI inference platform for industrial environments from factory automation, smart agriculture, and autonomous machines.

PDF Document - Nuvo-9160GC Data Sheet
Nuvo-9160GC Data Sheet
(Size: 622.1 KB)
PDF Document - Nuvo-9160GC User Manual
Nuvo-9160GC User Manual
(Size: 8.5 MB)
Specifications
ManufacturerNeousys
Short Description Nuvo-9160GC is a rugged edge AI computer that delivers superior CPU and GPU performance by leveraging Intel's 12/13th-Gen platform and an NVIDIA RTX GPU card up to 130W. The system’s standard and optional GPU brackets can accommodate selected GPU cards including RTX 3050, RTX 4060, NVIDIA RTX A2000, and RTX 4000 SFF Ada. The GPU bracket is designed to secure the GPU card to provide excellent shock and vibration resistance in volatile conditions.
ProcessorSupporting Intel 13th/12th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP)
GraphicsIntegrated Intel UHD Graphics 770 (32EU) / 730 (24EU)
MemoryUp to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
ChipsetIntel Q670E Platform Controller Hub
AMTSupports Intel vPro/ AMT 16.0
PoEOptional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6. 100W total power budget
Video Port1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Audio1x 3.5 mm jack for mic-in and speaker-out
PCI Express1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette for installing an NVIDIA graphics card up to 130W TDP (Max. graphics card dimension is 188 mm(L) x 131 mm(W), dual slot allocation)
M.21x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD 1x M.2 3042/3052 B key socket with SIM slot for M.2 4G/ 5G module
Mini PCI-E1x full-size mini PCI Express socket
SATA HDD2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
DC Input1x 3-pin pluggable terminal block for 8 to 48V DC input
Remote Ctrl. & Status Output1x 3-pin pluggable terminal block for remote control and PWR LED output
Dimension240 mm (W) x 225 mm (D) x 110.5 mm (H)
Weight3.89 kg
MountingWall-mount (standard) or damping bracket (optional)
Operating TemperatureWith 35W CPU and 130W GPU -25°C to 60°C** With 65W CPU and 130W GPU -25°C to 60°C**/*** (configured as 35W TDP) -25°C to 50°C**/*** (configured as 65W TDP)
Storage Temperature-40°C to 85°C
Humidity10% to 90% , non-condensing
VibrationOperating, MIL-STD-810G, Method 514.6, Category 4 (with optional damping bracket) (pending)
ShockOperating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II (with optional damping bracket) (pending)
EMCCE/FCC Class A, according to EN 55032 & EN 55035 (pending)
CPU Cores12
Base CPU Speed3.1 to 3.5 GHz
Video OutputDisplay Port
PoE Ports4
LAN Ports5-8
Serial Ports3-4
USB 2.01-2
USB 3.25 - 8
Max Memory64 GB
Effective Memory Speed4800 MHz
Form FactorFanless
Native Storage TypeM.2 NVMe SSD
On/IgnitionRemote On/Off
