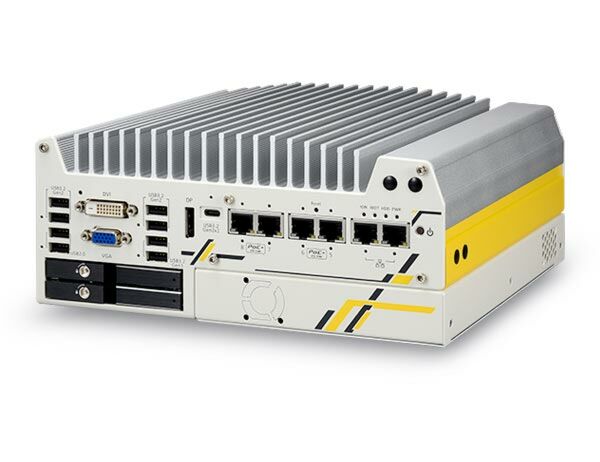

Nuvo-9200VTC: Intel 13th and 12th-Gen Core In-Vehicle Controller with 4x M12/ 4x RJ45 / 8x RJ45 PoE+ Ports and Single-Slot PCIe Cassette
Nuvo-9200VTC SeriesStarting at $2,235.00
- Supports Intel 13th/12th-Gen Core 24C/ 32T 35W/ 65W LGA1700 CPU
- 4x or 8x 802.3at PoE+ ports via M12 or RJ45 connectors
- 1x USB 3.2 Gen2x2 type-C and 8x USB 3.2/ 2.0 type-A ports
- On-board isolated CAN bus for in-vehicle communication
- 4-CH isolated DI and 4-CH isolated DO
- M.2 Gen4 x4 NVMe SSD slot
- 2x hot-swappable SATA HDD trays, supporting RAID 0/ 1
- 8V to 48V wide-range DC input with built-in ignition power control
- Patented Cassette for PCIe add-on card accommodation
- E-Mark certified and EN 50155 EMC compliant
Frequently Asked Questions
The Nuvo-9200VTC front and rear panels include:
- 1x 2.5G Ethernet (I226-IT/I225-IT) and 1x Gigabit Ethernet (I219-LM)
- 4x IEEE 802.3at Gigabit PoE+ ports via M12 X-coded connectors (Nuvo-9200VTC), RJ45 (Nuvo-9204VTC), or 8x RJ45 PoE+ ports (Nuvo-9208VTC)
- 1x USB 3.2 Gen2x2 (20 Gbps) type-C port with screw-lock
- 4x USB 3.2 Gen2x1 (10 Gbps) type-A ports
- 2x USB 3.2 Gen1x1 (5 Gbps) type-A ports
- 2x USB 2.0 ports
- 1x isolated CAN 2.0 port
- 1x VGA, 1x DVI-D, 1x DisplayPort
- 2x software-programmable RS-232/422/485 ports (COM1/COM2) and 2x RS-232 ports (COM3/COM4)
- 4-CH isolated DI and 4-CH isolated DO
- 1x 3.5 mm audio jack for mic-in/speaker-out
The system accepts 8V to 48V wide-range DC input via a 3-pin pluggable terminal block, with built-in ignition power control. Supplying a voltage over 48V will damage the system. There is also a separate 3-pin pluggable terminal block for remote control and PWR LED output.
With a 35W CPU, the operating temperature range is -40°C to 70°C with one memory module installed, or -40°C to 60°C with two memory modules installed. With a 65W CPU, the operating range is -40°C to 50°C (2-slot memory configuration), and thermal throttling may occur under sustained full load. Storage temperature is -40°C to 85°C. Sub-zero operation requires a wide-temperature HDD or SSD.
The system is E-Mark and EN 45545-2 certified, and complies with EN 50121 (EN 50155 EMC) and CE/FCC Class A per EN 55032 & EN 55035. It also meets EN 50155:2017/IEC 61373 Category I, Class B (body mounted) for vibration and shock.
The Nuvo-9200VTC supports up to 64GB DDR5 4800 SDRAM across two SODIMM slots. For storage, it has 2x hot-swappable HDD trays for 2.5" HDD/SSD installation supporting RAID 0/1, plus 1x M.2 2280 M key slot (PCIe Gen4 x4) for an NVMe SSD.
The system has 1x full-size mini-PCIe socket, 2x full-size mini-PCIe sockets (USB signal only) with internal SIM sockets, and 1x M.2 2242/3052 B key socket with SIM slot for a 5G/4G module plus another M.2 2242/3052 B key socket with SIM slot for a 4G module. These support installation of 5G/4G, WiFi, GPS, and CAN modules for wireless communication.
Yes. The system has a patented Cassette module accommodating 1x PCIe x16 slot at Gen3 with 16-lane PCIe signals, allowing installation of a single-slot PCIe add-on card in a separate thermally-managed compartment.
Tested operating systems include Microsoft Windows 10 LTSC 2021 (x64) and Ubuntu 20.04.5 LTS, 22.04 LTS, 22.04.1 LTS, or other distributions with kernel version 5.15 or later. On Linux, users may need to manually compile drivers for Intel graphics or the I225/I226 GbE controller if not embedded in the kernel.
The Nuvo-9200VTC measures 240 mm (W) x 225 mm (D) x 103 mm (H) and weighs approximately 3.9 kg. It is designed for wall-mounting with a damping bracket (standard).
All three models share the same core specs but differ in PoE+ connector type and port count: the Nuvo-9200VTC uses 4x M12 PoE+ ports, the Nuvo-9204VTC uses 4x RJ45 PoE+ ports, and the Nuvo-9208VTC uses 8x RJ45 PoE+ ports.
How-to Guides
- Refer to the "Disassembling the System" section; you may not need to completely dismantle the system to access the M.2 slot.
- Insert the M.2 module into the slot at a 45-degree angle.
- Gently press down and secure the module with an M3 P-head screw.
- Remove the thermal pad protector film from the heatsink/support frame for the NVMe SSD.
- Reinstall the system enclosure and panel when done.
- Pull the lever on the 2.5" external hot-swappable slot to swing open the cover.
- With the label side facing upward, insert the SATA connector side of the 2.5" HDD/SSD into the slot first, pushing firmly until fully inserted.
- Push the lever into the slot until it snaps into position. Use the supplied key to lock the external slot if desired.
- Repeat the steps to install a drive into the other tray.
- Turn the system upside-down and remove the four screws at the bottom of the Cassette module.
- Gently wiggle and separate the Cassette module from the system enclosure.
- Remove the screws to open the Cassette cover.
- Place the provided cube spacers onto the back of the PCIe card to prevent contact with the enclosure.
- Remove the bezel cover and insert the card into the PCIe slot, ensuring the bezel fits into the notch and the card is secured with a screw.
- Secure the indicated screw.
- Lower the Cassette module back onto the system enclosure and secure it with screws.
- Connect the vehicle Battery+ line (12V for sedan, 24V for bus/truck) to the V+ terminal.
- Connect the vehicle Battery-/GND line to the GND terminal.
- Connect the vehicle ACC line to the IGN terminal.
- Ensure the DC power source and IGN signal share the same ground. IGN input accepts 8~48VDC; supplying a voltage higher than 48VDC may damage the system.
- Ensure at least two hard drives or SSDs are installed, and back up any existing data before proceeding.
- Press F2 at boot to enter BIOS setup utility.
- Go to Advanced > System Agent (SA) Configuration > VMD setup menu, select Enable VMD controller, and set it to Enabled.
- Press F10 to save changes and reboot the system.
- When the system reboots, press F3 to enter the Device Manager configuration utility and select Intel Rapid Storage Technology.
- Select Create RAID Volume, name the volume, choose RAID Level (RAID-0 or RAID-1), select disks, set stripe size (if RAID-0) and capacity, then select Create Volume.
- Press F10 to save and Esc to exit.
Nuvo-9200VTC is Neousys' latest rugged in-vehicle controller based on Intel 13th/12th-Gen Core processors. Benefiting from cutting-edge Intel 7 photolithography, the latest Core desktop processors come with up to 24 cores/ 32 threads, offering an incredible boost of computational performance. Combining DDR5 memory bandwidth throughput and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8x when compared to previous 10th or 11th-Gen platforms.
Nuvo-9200VTC offers an assortment of peripherals, connections, and expansion flexibility. It has 2.5Gb and 1Gb Ethernet ports, and four or eight 802.3at PoE+ ports to supply 25W of power to connected devices such as IP cameras. The system also has x coded M12 connectors and screw-lock mechanisms on I/Os like Ethernet, USB 3.2 Gen1 and USB 3.2 Gen2 to guarantee extreme rugged connectivity in shock/ vibration environments. Internal expansion wise, there are two M.2 and three mini-PCIe sockets to install 5G/ 4G, WiFi, GPS, and CAN module for wireless communication.
On top of all that, the system is E-Mark certified and has a patented Cassette module with an additional PCIe slot for an add-on card, making it that much more flexible for in-vehicle applications. Nuvo-9200VTC also features two hot-swappable SATA HDD trays, an isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8V to 48V wide-range DC input with ignition power control. The Nuvo-9200VTC series is a flexible and reliable solution for various in-vehicle applications.
| Manufacturer | Neousys |
|---|---|
| Short Description | Nuvo-9200VTC is Neousys' latest rugged in-vehicle controller based on Intel 13th/12th-Gen Core processors. Benefiting from cutting-edge Intel 7 photolithography, the latest Core desktop processors come with up to 24 cores/32 threads, offering an incredible boost of computational performance. |
| Processor | Supporting Intel 13th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP):
Support Intel 12th-Gen Core CPU (LGA1700 socket, 65W/ 35W TDP):
|
| Graphics | Integrated Intel UHD Graphics 770 (32EU) |
| Memory | Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) |
| Chipset | Intel Q670E platform controller hub |
| AMT | Supports Intel vPro/ AMT 16.0 |
| PoE | 4x IEEE 802.3at Gigabit PoE+ ports by Intel I210:
4x IEEE 802.3at Gigabit PoE+ ports by Intel I210 and 4x 2.5G PoE+ ports by I225-IT:
|
| Video Port | 1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| DIO | 4-CH isolated DI and 4-CH isolated DO |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| SATA HDD | 2x hot-swappable HDD trays for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| DC Input | 1x 3-pin pluggable terminal block for 8V to 48V DC input (IGN/GND/V+) |
| Remote Ctrl. & Status Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Dimension | 240 mm (W) x 225 mm (D) x 84 mm (H) |
| Weight | 3.7kg |
| Mounting | Wall-mount with damping bracket |
| Operating Temperature | With 35W CPU:
With 65W CPU:
|
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90% , non-condensing |
| Vibration | EN 50155:2017/ IEC 61373, Category I, Class B - Body mounted |
| Shock | EN 50155:2017/ IEC 61373, Category I, Class B - Body mounted |
| EMC | E-Mark, EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035 |
