Nuvo-9501 Series: Intel 13th/12th-Gen Core Compact Fanless Computer with 2x 2.5GbE and 4x USB 3.2

Nuvo-9501 Series

Starting at $1,100.00

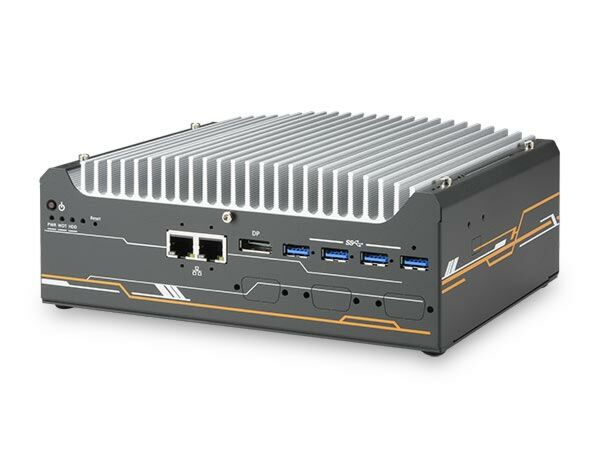

Nuvo-9501 is a cost-effective, compact, fanless embedded computer based on the Intel 13th/12th-Gen platform. Built on the advanced Intel 7 process, Intel 13th-Gen processors offer up to 24 cores/32 threads to deliver up to 2x the performance compared to previous Intel 10th or 11th-Gen platforms.
  • Intel 13th/12th-Gen Core 35W/65W LGA1700 CPU
  • Compact 212 x 165 x 80 mm footprint
  • Rugged, -25°C to 60°C fanless operation (Nuvo-9505D only)
  • Up to 32GB DDR4 3200 SODIMM
  • 2x 2.5GbE and 4x USB3.2 Gen 1 with screw-lock
  • Supports 1x M.2 2280 Gen4 x4 NVMe and 1x 3.5”/2.5” SATA HDD/SSD storage
  • 4-CH isolated DI and 4-CH isolated DO (Nuvo-9505D only)
  • VGA + DP dual display outputs
PDF Document - Nuvo-9501 Data Sheet
Nuvo-9501 Data Sheet
(Size: 289.8 KB)

System Configuration


* Selection required

Your Configuration
Nuvo-9501 Series: Intel 13th/12th-Gen Core Compact Fanless Computer with 2x 2.5GbE and 4x USB 3.2
Nuvo-9501 Series: Intel 13th/12th-Gen Core Compact Fanless Computer with 2x 2.5GbE and 4x USB 3.2

In stock

$1,100.00

Free Shipping Over $500

Don't see the exact configuration?

Contact us, chat with us, call 866-412-6278, or view shipping information.

Product Highlight
Nuvo-9501 is a cost-effective, compact, fanless embedded computer based on the Intel 13th/12th-Gen platform. Built on the advanced Intel 7 process, Intel 13th-Gen processors offer up to 24 cores/32 threads to deliver up to 2x the performance compared to previous Intel 10th or 11th-Gen platforms. Nuvo-9501 offers essential I/O functions for general industrial needs, including dual 2.5GbE ports, dual display ports, and four USB 3.2 ports. In addition, it features a Gen4 x4 M.2 NVMe slot for the latest NVMe SSD with read/ write speeds up to 7000 MB/s. It also supports a 2.5” or 3.5” HDD for high-capacity storage needs such as data collection or surveillance applications. It also offers two mPCIe and one M.2 E key slots for installing WiFi or 5G/ 4G wireless communication modules. As a cost-effective and compact embedded computer, Nuvo-9501 delivers excellent computing performance and offers essential I/O connectivity to meet customers’ needs and costs. It is suitable for a variety of industrial applications.
PDF Document - Nuvo-9501 Data Sheet
Nuvo-9501 Data Sheet
(Size: 289.8 KB)
Specifications
ManufacturerNeousys
Short Description Nuvo-9501 is a cost-effective, compact, fanless embedded computer based on the Intel 13th/12th-Gen platform. Built on the advanced Intel 7 process, Intel 13th-Gen processors offer up to 24 cores/32 threads to deliver up to 2x the performance compared to previous Intel 10th or 11th-Gen platforms.
