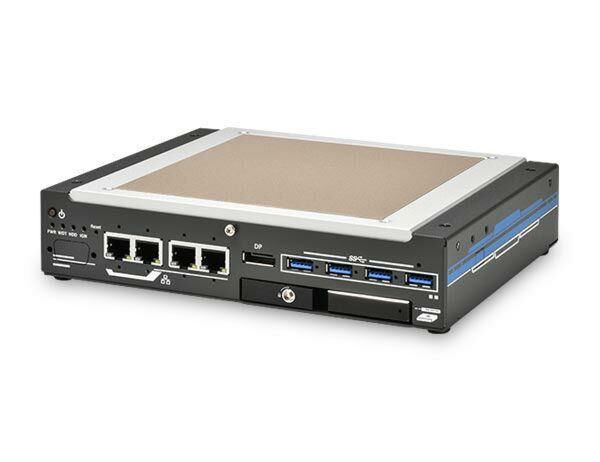

Nuvo-9531-FT: Intel 13th-Gen Compact Fanless Computer with 4x 2.5GbE, 4x USB3.2, and 1x Hot-Swappable HDD Tray and Flattop Heatsink
Nuvo-9531-FT SeriesStarting at $1,335.00
- 212 x 165 x 45 mm low-profile design with flattop heatsink
- Intel 13th-Gen Core 65W/35W LGA1700 CPU
- Rugged, -25°C to 60°C fanless operation
- 4x 2.5GbE with optional PoE+ and 4x USB3.2 Gen 1 with screw-lock
- 1x M.2 2280 Gen4 x4 NVMe and 1x hot-swappable HDD tray for storage
- 4-CH isolated DI and 4-CH isolated DO
- VGA + DP dual display output
- Optional ignition power control
Nuvo-9531-FT is a new category of fanless computer utilizing flattop heatsink for passive heat dissipation. It is designed to be installed inside a metal cabinet, waterproof box or explosion-proof case, where ventilation is limited. With the flattop heatsink and the non-adhesive thermal pad on top, heat generated by Nuvo-9531-FT can be effectively conducted to the outer surface of the cabinet to maintain optimum operating temperature.
Nuvo-9531-FT supports Intel 13th-Gen processors with up to 24 cores/32 threads to deliver almost double the performance when compared to previous Intel 10th or 11th Gen platforms. It has rich I/O functions such as four 2.5GbE with optional PoE+ PSE and four USB3.2 Gen1 ports for multiple camera connectivity for machine vision and surveillance applications. In addition, it features a Gen4 x4 M.2 to support an NVMe SSD with read/ write speeds up to 7000 MB/s; a hot-swappable HDD tray to hot-swap the storage drive without turning off the system or dismantling the chassis; two mini PCIe and one M.2 E key slots to install WiFi or 5G/ 4G wireless communication modules. The system is also equipped with 8x DIO, 2x COM ports, and dual display outputs for your industrial embedded application needs.
Combining excellent computing performance, abundant I/O connections, compactness, and a unique flattop heatsink, Nuvo-9531-FT is perfect for applications deployed in a sealed cabinet or confined space, where traditional fanless computers fall short.
| Manufacturer | Neousys |
|---|---|
| Short Description | Nuvo-9531-FT is a new category of fanless computer utilizing flattop heatsink for passive heat dissipation. It is designed to be installed inside a metal cabinet, waterproof box or explosion-proof case, where ventilation is limited. With the flattop heatsink and the non-adhesive thermal pad on top, heat generated by Nuvo- 9531-FT can be effectively conducted to the outer surface of the cabinet to maintain optimum operating temperature. |
| Processor | Intel Core i9-13900E/i9-13900TE
Intel Core i7-13700E/i7-13700TE
Intel Core i5-13500E/i5-13500TE
Intel Core i3-13100E/i3-13100TE |
| Graphics | Integrated Intel UHD Graphics 770 (32EU) / 730 (24EU) |
| Memory | Up to 32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot) |
| Chipset | Intel H610E platform controller hub |
| PoE | Optional IEEE 802.3at PoE+ PSE for 4x 2.5GbE ports 100 W total power budget |
| Video Port | 1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| DIO | 4-CH isolated DI and 4-CH isolated DO |
| Mini PCI-E | 2x full-size mini PCI Express sockets with internal SIM sockets |
| SATA HDD | 1x hot-swappable 2.5" HDD/SSD tray for 7mm HDD/SSD |
| DC Input | 1x 3-pin pluggable terminal block for 8-48V DC input with optional ignition power control |
| Dimension | 212mm (W) x 165 mm (D) x 45 mm (H) |
| Weight | 2.4 kg |
| Mounting | Wall-mount (optional) |
| Operating Temperature | With 35W CPU: -25°C ~ 60°C[1][2] [1] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required. |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
| CPU Family | Intel Core |
| Video Output | Display Port, VGA |
| Serial Ports | 3-4 |
| USB 2.0 | 1-2 |
| USB 3.2 | 1 - 4 |
