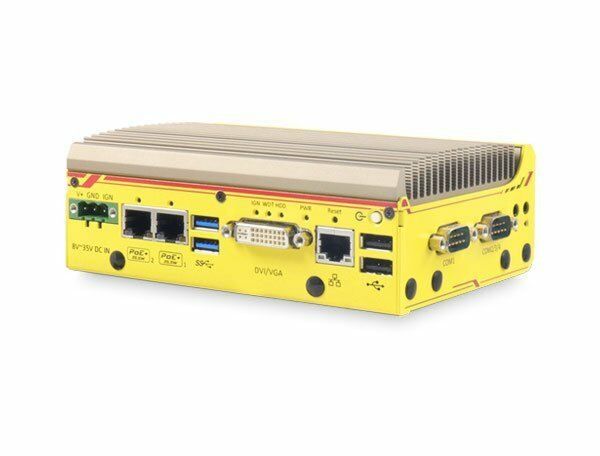

POC-351VTC Intel E3950 Apollo Lake ultra-compact fanless in-vehicle gateway
POC-351 VTCStarting at $840.00
Main Features:
- Intel® Apollo Lake Atom™ E3950 quad-core processor
- Rugged, -25 °C to 70 °C fanless operation
- Two IEEE 803.3at PoE+ ports and one GbE port
- One isolated CAN port for in-vehicle communication
- One M.2 socket and three mini-PCIe sockets
- Aluminum heat-spreader for M.2/ mPCIe modules
- 4-CH isolated DI and 4-CH isolated DO
- 8~35V DC input with built-in ignition power control
Frequently Asked Questions
The POC-351VTC provides 3x Gigabit Ethernet ports via an Intel® I210 GbE controller. Two of these (port #2 and #3) support IEEE 802.3at PoE+. For video, it offers VGA and DVI dual display outputs via DVI-I. It also has 2x USB 3.1 ports and 2x USB 2.0 ports.
The unit has one software-programmable RS-232/422/485 port (COM1), and three 3-wire RS-232 ports (COM2/COM3/COM4) — with COM2 alternatively configurable as a single RS-422/485 port. It also includes one isolated CAN 2.0 port and 4-channel isolated DI plus 4-channel isolated DO for connecting other vehicle devices and sensors.
The POC-351VTC accepts 8V to 35V DC input through a 3-pin pluggable terminal block (IGN/GND/V+), with built-in ignition power control for automotive use. Optional accessory PA-60W-OW is a 60W AC/DC power adapter providing 12V, 5A DC output with cord-end terminals for the terminal block.
Standard operating temperature is -25°C to 70°C. An optional wide-temperature configuration extends this to -40°C to 70°C, though this requires a wide-temperature/industrial mSATA module and, for the extreme -40°C to 70°C option, 100% screening (contact Neousys). Storage temperature is -40°C to 85°C. The unit carries E-Mark certification for in-vehicle applications and CE/FCC Class A per EN 55032 & EN 55024.
Memory supports up to 8GB DDR3L-1866 via a single SODIMM slot. For storage, the unit has 1x half-size mSATA port and 1x full-size mSATA port. Expansion sockets include 1x M.2 B key socket (for 3G/4G with USIM support) and 3x full-size mini PCI Express sockets (also with USIM support). An aluminum heat-spreader helps dissipate heat from these modules.
The unit has a total of four M.2/mPCIe sockets (1x M.2 B key, 3x mini PCIe) and six antenna holes to accommodate 4G, 3G, WIFI, and GPS modules. The POC-351VTC-70 variant additionally supports an optional LTE embedded socket modem (NSIO-LTE-7455, Cat. 6 LTE).
The POC-351VTC measures 153 mm (W) x 108 mm (D) x 56 mm (H) and weighs 1.0 kg. The POC-351VTC-70 variant is slightly taller at 153 mm (W) x 108 mm (D) x 68 mm (H) and weighs 1.1 kg. Mounting is horizontal wall-mount as standard, with vertical wall-mount available as an option using the Wmkit-V-POC300 accessory kit.
The POC-351VTC is described as an Intel® Apollo Lake Atom™ E3950 ultra-compact in-vehicle controller with 1x GbE, 2x PoE+ and isolated CAN. The POC-351VTC-70 has the same core description but additionally supports an optional LTE embedded socket modem, and has a taller chassis (68.4 mm vs 56.4 mm) and slightly higher weight (1.1 kg vs 1.0 kg).
How-to Guides
- Locate the 3-pin pluggable terminal block on the unit labeled IGN, GND, and V+.
- Connect a DC power source rated between 8V and 35V to the terminal block, matching IGN, GND, and V+ connections.
- If using vehicle ignition power control, wire the IGN pin to the vehicle's ignition line so the unit can respond to ignition-based power control.
- Alternatively, use the optional PA-60W-OW 60W AC/DC power adapter (12V, 5A DC output) with cord-end terminals designed to fit the terminal block.
- Decide on orientation: the POC-351VTC supports horizontal wall-mount as the standard configuration.
- For vertical wall-mount installation, use the optional Wmkit-V-POC300 wall-mount assembly kit.
- Refer to the unit dimensions — 153 mm (W) x 108 mm (D) x 56 mm (H) for POC-351VTC, or 153 mm (W) x 108 mm (D) x 68 mm (H) for POC-351VTC-70 — when planning mounting clearance.
| Manufacturer | Neousys |
|---|---|
| Short Description | The POC-351 VTC is a fanless rugged PC designed for various in-vehicle applications. It’s powered by the Intel Apollo Lake Atom E3950 quad-core processor, providing support for vehicle support applications such as cameras and sensors. The versatile POC-351 VTC is compatible with 4G, 3G, WiFi, and GPS modules, making it ideal for applications that are on the move. This rugged PC is also capable of a wide-range temperature between -25 °C to 70 °C. |
| Processor | Intel®Atom™ E3950 1.6/2.0 GHz quad-core processor |
| Graphics | Integrated Intel®HD Graphics 505 |
| Memory | 1x SODIMM socket for DDR3L-1866, up to 8GB |
| PoE | IEEE 802.3at PoE+ on port #2 and #3 |
| Video Port | VGA and DVI dual display outputs via DVI-I connector |
| M.2 | 1x M.2 B key socket for 3G/4G option with USIM support |
| mSATA | 1x half-size mSATA port 1x full-size mSATA port|1x half-size mSATA port|1x full-size mSATA port |
| DC Input | 8~35 VDC DC input |
| Dimension | 56 mm (W) x 153 mm (H) x 108 mm (D) |
| Input Connector | 3-pin pluggable terminal block for DC input (IGN/GND/V+) |
| Mounting | Horizontal wall-mount (standard) Vertical wall-mount (optional)|Horizontal wall-mount (standard)|Vertical wall-mount (optional) |
| Operating Temperature | -25°C ~ 70°C with mSATA, 100% CPU loading * / ** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ mSATA, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| EMC | E-Mark for in-vehicle applications CE/FCC Class A, according to EN 55022 & EN 55024|E-Mark for in-vehicle applications|CE/FCC Class A, according to EN 55022 & EN 55024, |
| CPU Cores | 4 |
| CPU Family | Intel Atom |
| Base CPU Speed | Under 2.0 Ghz |
| Video Output | DVI-I, VGA |
| PoE Ports | 2 |
| LAN Ports | 1-4 |
| Serial Ports | 3-4 |
| USB 2.0 | 1-2 |
| USB 3.0 | 1-2 |
| Max Memory | 8 GB |
| Operating System | Windows 7, Windows 10, Linux |
| Effective Memory Speed | 1866 MHz |
| Form Factor | Fanless |
| Native Storage Type | mSATA Full, mSATA Mini |
| On/Ignition | Built In Ignition Control |
