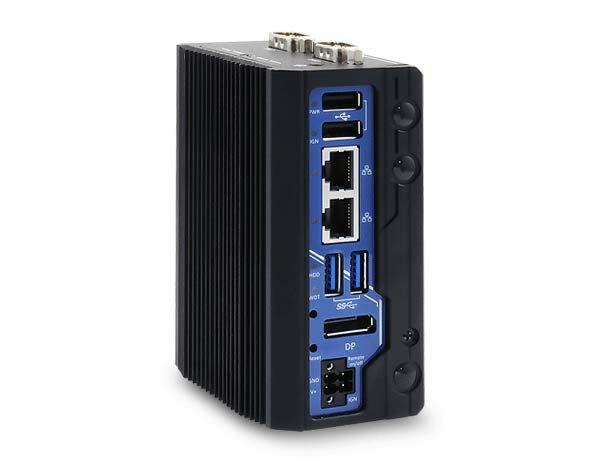

POC-40 Extreme Compact Embedded Controller

POC-40

Starting at $455.00

The POC-40 Extreme Compact Embedded Controller is powered by the Intel Elkhart Lake Atom x6211E dual-core processor and is offered in an extremely small form factor. The POC-40 has a wide operating temperature of -25°C to 70°C due to its fanless cooling system. This embedded controller is designed to operate with most industrial pcs, and complete rugged tasks. This more powerful alternative to a NUC is more flexible and equally affordable.

‧ Intel® Elkhart Lake Atom® x6211E dual-core processor
‧ 49 x 89 x 112 mm extremely compact form factor
‧ Rugged -25°C to 70°C fanless wide-temperature operation
‧ Two GigE ports, two USB 3.1 Gen1 ports and two USB2.0 ports
‧ M.2 2280 M key SATA storage interface
‧ One M.2 B key socket supporting 5G/ 4G 3042/ 3052 modules
‧ One M.2 E key socket for WiFi 5/ WiFi 6 modules
‧ One COM port with RS-232/ 422/ 485 modes and three RS-232 COM ports

PDF Document - POC-40 Data Sheet
POC-40 Data Sheet
(Size: 266.8 KB)

System Configuration


* Selection required

Your Configuration
POC-40 POC-40 Extreme Compact Embedded Controller
POC-40 Extreme Compact Embedded Controller

In stock

Add to Favorites

$455.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

POC-40 is an extremely compact fanless controller with dimensions measuring just 49 x 89 x 112 mm. It features Elkhart Lake Atom® processor and is designed for space-restricted applications such as factory data collection, rugged edge computing and mobile gateway.


Utilizing Intel’s 10nm process technology, the new Elkhart Lake Atom® x6211E dual-core processor can deliver up to 1.7 times the performance boost over its previous generation. In comparison to POC-200, POC-40 provides 1.9 times computing performance at only half the size. It features generic I/O functions, such as two Gigabit Ethernet ports, four USB 3.1 Gen1/ 2.0 ports, four COM ports and optional isolated digital I/Os for industrial communication and control. In addition, by adopting dedicated M.2 B key and E key slots, the POC-40 can fully harness the bandwidth of 5G and WiFi 6 wireless communications to provide wide-area coverage and real-time data transmission for industrial and mobile gateway applications.


With a similar footprint as a PICO-ITX motherboard, Neousys’ POC-40 is perfect for projects that require above par performance in an extremely compact package. Ideal for both edge computing and gateway applications, it is a low power consumption and lightweight fanless controller that offers wide-temperature operation for harsh environments.

PDF Document - POC-40 Data Sheet
POC-40 Data Sheet
(Size: 266.8 KB)
Specifications
ManufacturerNeousys
Product Available OnMar 16, 2021
Short Description The POC-40 Extreme Compact Embedded Controller is powered by the Intel Elkhart Lake Atom x6211E dual-core processor and is offered in an extremely small form factor. The POC-40 has a wide operating temperature of -25°C to 70°C due to its fanless cooling system. This embedded controller is designed to operate with most industrial pcs, and complete rugged tasks. This more powerful alternative to a NUC is more flexible and equally affordable.
ProcessorIntel E;khart Lake Atom x6211E
GraphicsIntegrated Intel UHD
Memoryup to 32GB DDR-4 3200MHz
Ethernet StandardI210
Video Port1 DisplayPort
Audio1x 3.5mm mic in/spkr oout
M.2Storage M Key SATA 4G/5G B Key WiFi E Key
DC Input12-20 VDC
Power Adapter60W recommended
Power Input Voltage12-20 VDC
Power TypeDC
Fannone
Weight5 lbs estimate
MountingDIN standard Wall Optional
Operating Temperature-25-70C
Storage Temperature-40-85C
Humidity10-90%
VibrationOperating, MIL-STD-810G, Method 514.6, Category 4
ShockOperating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMCCE/FCC Class A, according to EN 55032 & EN 55024
CPU Cores2
CPU FamilyIntel Atom
Base CPU SpeedUnder 2.0 Ghz
Video OutputDisplay Port
LAN Ports1-4
Serial Ports1-2
USB 2.01-2
USB 3.11-4
Max Memory32 GB
Operating SystemWindows 10, Linux
Effective Memory Speed3200 MHz
Form FactorFanless
Native Storage TypeM.2 SATA S80
On/IgnitionRemote On/Off
