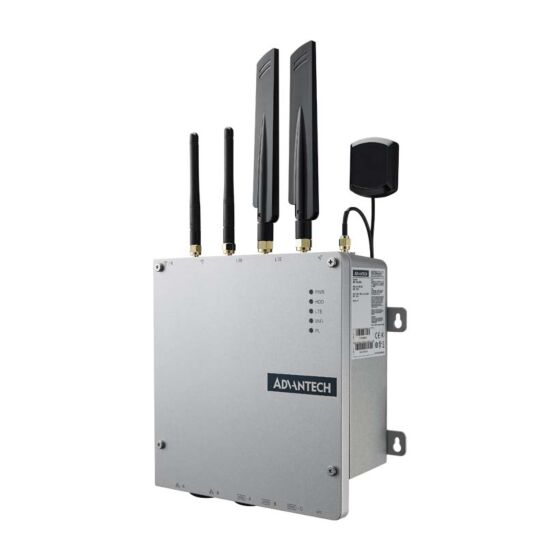

UNO-430-E1A: All-Around IP69K/IP68 Waterproof Edge Intelligence Gateway with Intel Atom E3950
UNO-430 SeriesStarting at $1,495.00
- Intel Atom E3950 quad-core processor with 8G DDR3L memory
- Reserve M.2 3052/3042 key B, M.2 2230 key E for Wi-Fi, LTE & GPS expansion
- Water-proof and sustain -40 ~ 70°C for outdoor environments
- Easy maintenance and installation with front door and cable gland design
- Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
- RED compliance
Frequently Asked Questions
The UNO-430-E1A provides 2 x RS-422/485 ports (terminal block, 2500VDC isolation, 50~115.2 kbps), 1 x RS-232 port (terminal block, console port, 50~115.2 kbps), and 2 x RJ45 Gigabit Ethernet ports (10/100/1000 Mbps, IEEE 802.3u, 1000BASE-T). Internally it also offers 1 x USB 3.0, 1 x USB 2.0, and 1 x DisplayPort for maintenance access.
The UNO-430-E1A accepts 10 ~ 36 V DC input via a 1 x 3-pin terminal block power connector. Power consumption is 21 W typical and 27 W maximum.
The unit operates from -40 ~ 70 °C (5~85% RH with 0.7 m/s airflow) and can be stored from -40 ~ 85 °C. It carries CE, FCC, IEC/UL 62368-1, and UL 60950-22 (Part 22: equipment to be installed outdoors) certifications, and is rated IP69K and IP68 for ingress protection. It is also RED compliant and certified for Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass.
The UNO-430-E1A ships with 8 GB of DDR3L memory (1600 MHz). Storage is provided via a 1 x M.2 2242 B-key (SATA signal) socket. Expansion sockets include a 1 x M.2 E-key (2230, PCIe/USB2.0) for Wi-Fi/Bluetooth, a 1 x M.2 B-key (3042/3052, USB2.0/USB3.0) for LTE/5G modules, and a socket (USB signal) for a MultiTech Dragonfly card.
The UNO-430-E1A supports Microsoft Windows 10 Enterprise LTSC and Advantech Linux (Ubuntu 18.04). Advantech also lists specific embedded OS images for ordering: WIN10 IoT Enterprise LTSC x64 v6.05 B037 and Image AdvLinuxTu V2.1.0 for UNO/TPC series.
The UNO-430-E1A measures 200 x 200 x 68 mm (7.87 x 7.87 x 2.67 in), has a square form factor with an aluminum housing, and weighs 3 kg (6.61 lb). It supports wall mount installation.
Yes. It reserves an M.2 2230 E-key socket for Wi-Fi/Bluetooth expansion and an M.2 3042/3052 B-key socket for LTE/5G expansion. Advantech offers optional modules including an 802.11 a/b/g/n/ac + BT4.2 Wi-Fi module, a Sierra EM7565 LTE Cat-12 module, a Quectel EM06-E LTE Cat-6 module, and a MultiTech LTE Cat.4 modem kit for North America. GPS function requires an additional SMA cable and GPS antenna, ordered separately.
The enclosure uses cable glands for all external I/O: 2 x M32 cable glands for Ethernet cable (cable OD 5 ~ 6.6 mm) and 4 x M12 cable glands for serial and power cables (cable OD 4.5 ~ 6.5 mm). Combined with the front door design and aluminum housing, this supports the unit's IP69K/IP68 rating.
Yes. It includes a TPM 2.0 hardware security module and a programmable watchdog timer with 255 intervals (1 ~ 255 sec). The BIOS is AMI UEFI (64 Mbit).
How-to Guides
- Confirm your power source supplies 10 ~ 36 V DC.
- Route the power cable through one of the M12 cable glands (cable OD 4.5 ~ 6.5 mm) rated for serial/power cables.
- Wire the power leads to the 1 x 3-pin terminal block power connector.
- Tighten the cable gland to maintain the unit's IP69K/IP68 ingress protection rating.
- For Ethernet connections, route each cable (OD 5 ~ 6.6 mm) through one of the 2 x M32 cable glands and connect to the 2 x RJ45 Gigabit Ethernet ports.
- For serial connections, route each cable (OD 4.5 ~ 6.5 mm) through one of the 4 x M12 cable glands and wire to the appropriate terminal block: RS-422/485 or RS-232 port.
- Tighten all cable glands fully to preserve the IP69K/IP68 rating.
| Manufacturer | Advantech |
|---|---|
| Short Description | Designed for operation in harsh outdoor/industrial environments, UNO-430-E1A features all-around IP69K/68-rated ingress protection and cable gland I/O connectors to provide a truly watertight solution that can withstand the most demanding applications. |
| CPU Cores | 4 |
| CPU Family | Intel Atom |
| Base CPU Speed | Under 2.0 Ghz |
| LAN Ports | 1-4 |
| Serial Ports | 3-4 |
| Max Memory | 8 GB |
| Operating System | Windows 10, Linux |
| Effective Memory Speed | 1600 MHz |
| Form Factor | Fanless |
| Native Storage Type | M.2 NVMe SSD |
| BIOS | AMI UEFI (64 Mbit) |
| Certification | CE, FCC, IEC/ UL 62368-1, UL 60950-22 (Part 22: Equipment to be installed outdoors) |
| Enclosure | Aluminum housing |
| Mounting | Wall mount |
| CPU | Intel Atom E3950 quad core |
| Frequency | 1.6GHz (up to 2GHz) |
| Memory | 8GB of DDR3L, 1600MHz |
| Storage | 1 x M.2 2242 B-key (SATA signal) |
| Network (LAN) | 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u, 1000BASE-T Fast Ethernet |
| Watchdog TImer | Programmable timer with 255 intervals (1 ~ 255 sec) |
| Humidity | 10 ~ 95% RH @ 40 °C/104 °F, non-condensing |
| Ingress Protection | IP69K, IP68 |
| Operating Temperature | -40 ~ 70 °C/-40 ~ 158 °F @ 5 ~ 85% RH with 0.7 m/s airflow |
| Storage Temperature | -40 ~ 85 °C/-40 ~ 185 °F |
| Shock | Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Vibration Protection | Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis |
| Power Input Voltage | 10 ~ 36 VDC |
| Power Consumption | 21W (typical), 27W (max.) |
| OS Support | Microsoft Windows 10 Ent. LTSC, Advantech Linux (Ubuntu 18.04) |
| Weight | 3 kg/6.61 lb |
| Dimension | 200 x 200 x 68 mm/7.87 x 7.87 x 2.67 in |
