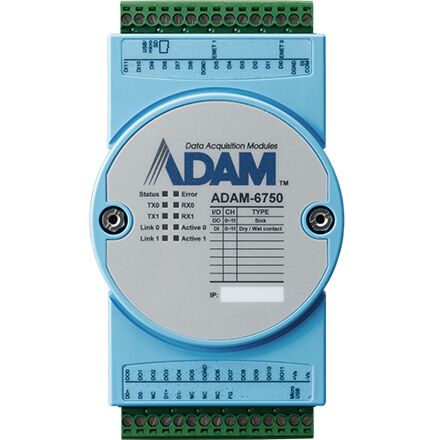

ADAM-6750: Intelligent I/O Gateway with Digital I/O
ADAM-6750 $325.00
12DI/12DO Intelligent I/O Gateway
- Linux Open Platform
- 12ch digital input(counter)/12ch digital output(pulse output)
- Programming: linux C API, Node-RED (graphic programming environment)
- Cloud/Database access ,edge data analysis and logic control, data visualization by dashboard
- Interfaces: RS-485x2, Ethernet port x 2 ,1 x USB Type-A 2.0, 1 x USB Micro-B 2.0
12DI/12DO Intelligent I/O Gateway
- Linux Open Platform
- 12ch digital input(counter)/12ch digital output(pulse output)
- Programming: linux C API, Node-RED (graphic programming environment)
- Cloud/Database access ,edge data analysis and logic control, data visualization by dashboard
- Interfaces: RS-485x2, Ethernet port x 2 ,1 x USB Type-A 2.0, 1 x USB Micro-B 2.0
| Manufacturer | Advantech |
|---|---|
| Short Description | 12DI/12DO Intelligent I/O Gateway |
| CPU | Cortex-A8 32-Bit |
| Frequency | 1GHz |
| Memory | DDR3L 512MB |
| Storage | 512MB NAND Flash |
| Network (LAN) | 2 x RJ-45 10/100 Mbps (2MAC ID) |
| I/O | Serial port: 2 x RS-485 USB port: 1 x USB Type-A 2.0, 1 x USB Micro-B 2.0 |
| Operating Temperature | -40 ~ 70°C |
| Storage Temperature | -40 ~ 85°C |
| OS Support | RT Linux V3.12 |
