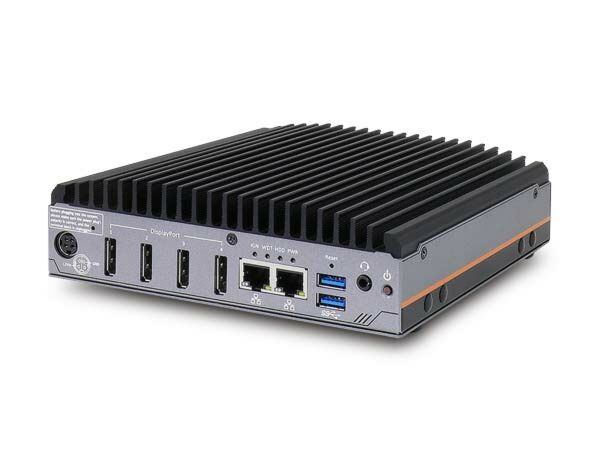

AMD Ryzen 4K Interactive System with AI Inference Option

Nuvo-2700DS

Starting at $885.00

  • AMD Ryzen™ embedded V1605B series quad-core 15W CPU
  • Rugged -25°C to 70°C fanless operation
  • 4x 4K DP display, 3840 x 2160 resolution per output
  • AI inference capability by 2x optional Edge TPU
  • 1x M.2 3042/3052 B-Key for 4G/5G module
  • 2x USB3.1 Gen 1 and 2x USB2.0
  • 8V to 35V wide-range DC input with built-in ignition power control
  • Flexible power input options: mini-DIN or terminal block
PDF Document - Data Sheet Nuvo-2700DS
Data Sheet Nuvo-2700DS
(Size: 597.6 KB)

System Configuration


* Selection required

Your Configuration
Nuvo-2700DS AMD Ryzen 4K Interactive System with AI Inference Option
AMD Ryzen 4K Interactive System with AI Inference Option

In stock

Add to Favorites

$885.00

Don't see the exact configuration? Contact us, chat with us or give us a call 866-412-6278

Product Highlight

Enabling AI at the Edge with Google Coral Edge TPU

Introducing Neousys edge AI embedded computers supporting dual Google Coral Edge TPUs which are flexible modules that can add on edge AI processing capability to a rugged computer. Each Edge TPU is capable of performing up to 4 tera-operations per second (TOPS) while using an astounding 2 watts only!

With the wide adaptation of Artificial Intelligence (AI) being deployed to computers at the edge, together, they form a real-time interactive link that has decentralized the edge computing infrastructure. Nevertheless, edge AI device deployments are often restricted by the size, installation space, cost and power consumption. To counter these obstacles, Neousys Technology offers ultra-compact fanless embedded computers Nuvo-2700DS and POC-400. In addition to wide temperature operations, rich I/Os and wide range input voltage, they also support Google Edge TPU to execute AI applications independently.

The edge AI technology uses trained models for inference processes on edge devices to assist in making local decisions that minimize decision delays (reduce latency) and avoid consuming excess data bandwidth (bandwidth optimization and saving data transmission costs). Neousys’ Nuvo-2700DS and POC-400 feature Google Coral Edge TPU’s powerful performance, compact size and extremely low energy consumption. When implemented into edge devices, it provides additional computing power and self-processing capabilities. The incorporation of Google Coral Edge TPUs boost edge computers with the intelligence to drive advanced automated applications, such as smart surveillance, smart transportation, intelligent manufacturing, smart retail and many others.



Neousys' 30W Edge AI Platform for Google edge TPU

<30W Edge AI Platform

The inference capability of Neousys' AI platform is powered by Google Edge TPUs which support TensorFlow Lite with better system performance and processing speeds while consuming less than 30W of power.

Neousys' Wide-temp fanless operation for Google edge TPU

Wide-temp fanless operation

Neousys' fanless computers with low power consumption are designed and validated for operation in wide-temperature ranging from -25°C up to 70°C. They are ideal for 24/7 deployments in harsh indoor and outdoor environments.

Neousys'Rich I/O connections for Google edge TPU

Rich I/O connections

The compact edge AI platforms provide rich and reliable I/Os connectivity such as USB3.1, COM, PoE+, GbE and DisplayPort for edge AI applications.



Neousys' Wide range DC, ignition control and wireless connectivity for Google edge TPU

Wide range DC, ignition control and wireless connectivity

Neousys' Edge TPU platforms have wide-range DC input from 8 to 35V with ignition power control, and they also support WiFi 6, 5G/ 4G network modules for mobile applications.



Neousys integrated platforms with Google Edge TPU:

  Nuvo-2700DS Rugged 4x 4K Interactive Digital Signage System POC-400 Intel® Elkhart Lake Atom® x6425E Ultra-compact Fanless Embedded Computer
  Nuvo-2700DS POC-400
Description Rugged 4x 4K Interactive Digital Signage System Ultra-compact Fanless Embedded Computer
Processor AMD Ryzen™ Embedded V1605B Intel® Elkhart Lake Atom® x6425E
Memory Up to 64 GB DDR4-2400 SDRAM Up to 32 GB DDR4-3200 SDRAM
PoE+ N/A Optional IEEE 802.3at PoE+
Ethernet 2x Gigabit Ethernet ports by 2x Intel® I210 controller 3x 2.5GBASE-T Ethernet ports by Intel® I225 GbE controller
USB
  • 2x USB 3.1 Gen1 (5 Gbps) ports
  • 2x USB 2.0 ports
Mini PCI Express Support 2x half-size mini PCIe for Google Edge TPU Support 1x M.2 E key for Google Edge TPU
Video Port 4x 4K DisplayPort 2x 4K DisplayPort
Nuvo-2700DS series is a rugged digital signage system with AI inference capability for personalized user experience and audience measurement. Powered by AMD Ryzen™ Embedded V1605B, it can output to four 4K displays and playback 4K H.265 videos at 60fps. By supporting two Google Edge TPUs, it delivers a total of 8 TOPS AI inference performance in a fanless compact form factor. The wide operating temperature and fanless design make it ideal for 24/7 applications in harsh indoor and outdoor environments, such as flight information display system (FIDS) or train schedule board. Furthermore, Nuvo-2700DS can also be deployed for mobile applications due to the inclusion of ignition power control and full bandwidth support of WIFI 6, 4G LTE, and 5G network modules. The support of two Google Edge TPUs empower Nuvo-2700DS as a smart digital signage player to leverage real-time camera input and AI computer vision models (e.g., YOLO-lite or PoseNet) to offer audiences an interactive and personalized experience. Besides, it can get to know its audience by collecting anonymous data from people counting, body gesture recognition, facial recognition, attention measurement, and emotion analysis. The Nuvo-2700DS series signifies a new age of AI enabled digital signage player for harsh environments and mobile applications. You can utilize Nuvo-2700DS as a video wall player to playback to 4K ultra high definition visual displays or deploy Nuvo-2700DS as a low power fanless Edge AI platform for emerging AI applications. With AI inference from Google Edge TPUs, Nuvo-2700DS creates an interactive and personalized experience, but moreover, it can quantify offline campaign like never before and offer insight data.
PDF Document - Data Sheet Nuvo-2700DS
Data Sheet Nuvo-2700DS
(Size: 597.6 KB)
Specifications
ManufacturerNeousys
ProcessorAMD Ryzen V1605B quad core 15W
GraphicsVega GPU with 8 compute units
Memoryup to 64GB DDR4-2400SDRAM by two SODIMM sockets
Ethernet StandardI210
Video Port4x DisplayPort
Audio1x jack for mic in audio out
DIO

4CH isolated DI and 4 CH isolated DO optional

M.21x M.2 3042/3052 B key (USB) for 4G/5G with micro SIM slot 1x M.2 2230 E key (PCIe + USB) Wifi 1x M.2 2280 M key for SATA Storage
Mini PCI-E2x half size mPCIe for Google Edge TPU
DC Input8-35V
Power Adaptermini-DIN 12V DC or included terminal block for bare leads 60-120W recommended
Power Input Voltage8-35V
Power TypeDC
Dimension173mm x 174mm x 50mm
Weight1.6Kg
MountingWall mount optional
Operating Temperature-25-70C
Storage Temperature-40-85C
Humidity10-90% non condensing
Vibrationsee manual
Shocksee manual
EMCCF FCC class A, EN55032 EN55035
CPU Cores4
CPU FamilyAMD
Base CPU Speed2.1 to 3.0 GHz
Video OutputDisplay Port
LAN Ports1-4
Serial Ports1-2
USB 2.01-2
USB 3.11-4
Max Memory64 GB
Operating SystemWindows 10, Linux
Effective Memory Speed2400 MHz, 2666 MHz
Form FactorFanless
Native Storage TypeM.2 SATA S80
