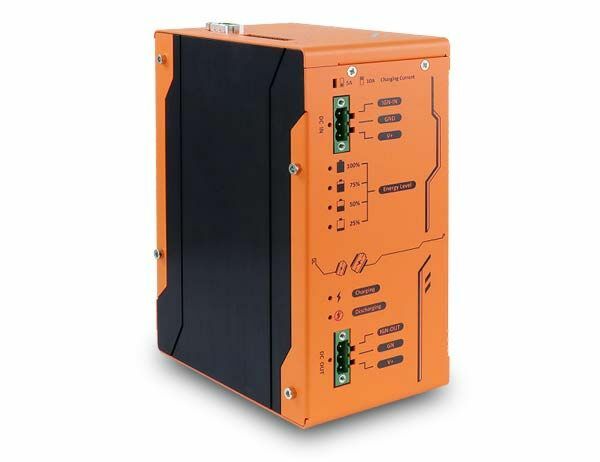

PB-9250J-SA: Industrial-Grade Standalone Intelligent Supercapacitor-Based Uninterruptible Power Backup Module 9250Ws
PB-9250J-SAView SuperCap UPS Backup Modules
The PB series is a standalone power backup module that can protect your box-PC against power outages. Utilizing state-of-the-art supercapacitor technology, it can operate in harsh environments from -25°C to 65°C and have extremely high durability lasting over 10 years.
- Universal standalone power backup module compatible with all box-PCs
- Supercapacitor-based, -25 to 65°C wide temperature operation
- Up to 9250 watt-second energy capacity
- Maximum 180W output power for the connected back-end system
- Over 10 years lifespan, and 500,000 charging/ discharging cycles
- Patented CAP energy management technology*
- Extending back-up time in the event of an unforeseen power outage
- Monitoring energy and power consumption to extend operation time for safe system shutdown
- Versatile operating mode
- Normal backup mode
- Ignition control mode for standard box-PC and in-vehicle controller
- EN50155 certificate
Frequently Asked Questions
The PB-9250J-SA is a standalone, supercapacitor-based uninterruptible power backup module for box-PCs and in-vehicle controllers. It stores 9250 watt-seconds of energy and can supply up to 180W to a connected back-end system, automatically managing boot and shutdown during a power outage without requiring additional drivers or software.
The module accepts 12 to 35V DC input through a 3-pin pluggable terminal block (V+, GND, IGN_IN). In charge mode, output voltage bypasses the input (DC_OUT = DC_IN). In discharge mode, output is 12V or 24V DC depending on input voltage (24V if input is 17V or higher, 12V if lower), delivered through a 3-pin pluggable terminal block (V+, GND, IGN_OUT). Maximum output power is 180W.
The PB-9250J-SA operates from -25°C to 65°C at rated capacity, and can operate from -40°C to 85°C with reduced energy capacity. Storage temperature is -40°C to 85°C. It is compliant with IEC61373:2010 Category 1 Class B (vibration and shock, body mounted, part of EN50155), EN50155:2007, and CE/FCC Class A per EN 55032 and EN 55035.
The unit includes: a 3-pin pluggable terminal block for DC/ignition input, a 3-pin pluggable terminal block for DC/ignition output, a 9-pin D-sub (DB9) RS-232 COM port to connect to the host computer, a 10-pin pluggable terminal block for isolated DIO (power button signal output PWRBTN# and system status input SYS_STAT), and a recessed reset button.
The PB-9250J-SA is composed of eight 370F, 3.0V supercapacitors providing 9250 watt-second energy capacity. It has an expected lifespan of over 10 years and a rated cycle life of 500,000 charging/discharging cycles. To achieve the full 10-year lifespan under 24/7 operation at 65°C, the unit should be charged to a 6525J energy level using the 4.8x SuperCAP Lifetime Extension setting. Once the rated lifetime or cycle life is reached, supercapacitor capacity may decrease up to 30% and ESR may increase up to 100% from initial values.
The PB-9250J-SA measures 82.5mm(W) x 175.2mm(H) x 128.2mm(D) and weighs 1.70 kg. It supports DIN-rail mounting (standard) or wall-mounting (optional, using the Wmkit-V-PB9250J accessory).
The unit supports three connection modes: Normal Backup Mode (general power backup use), Ignition Control Mode (for box-PCs lacking ignition control, ideal for in-vehicle use), and Ignition Relay Mode (relays the IGN signal in real time to the back-end system). PB-9250J-SA units also support Daisy Chain Mode to combine multiple units for extended energy capacity.
Estimated backup time depends on the back-end system's power consumption: 0-50W provides roughly 130-680 seconds, 50-100W provides roughly 60-130 seconds, 100-150W provides roughly 30-60 seconds, and 150-200W provides roughly 15-30 seconds. Actual backup time may vary depending on the connected hardware configuration.
No additional drivers are required for basic boot/shutdown management thanks to the patented CAP energy management technology. However, a Windows host system must be configured to fully shut down (not sleep) when the power button is pressed, since the module cannot recognize a sleep (S3) command as a proper shutdown. An optional Power Backup Parameter Configurer application is available to monitor and adjust settings over the RS-232 COM port.
How-to Guides
- Connect the 12~35V DC output from your power supply to the DC IN 3-pin terminal block of the PB-9250J-SA.
- Connect the DC OUT terminal block of the PB-9250J-SA to the power input of the back-end system.
- Connect the PWRBTN# signal pair from the 10-pin I/O terminal block to the remote power button connector of the back-end system.
- Apply power; the PB-9250J-SA will charge (approximately 15-200 seconds depending on charging current and input voltage) and then automatically send a power button signal to turn on the back-end system.
- During a power outage, the module supplies 12V or 24V DC output (depending on input voltage) to keep the system alive until it calculates it must initiate shutdown.
- Connect 12~35V DC power supply output to the DC IN terminal block of the PB-9250J-SA.
- Connect the vehicle IGN signal to the IGN IN input (same connector as power input).
- Connect DC OUT of the PB-9250J-SA to the power input of the back-end system.
- Connect the PWRBTN# signal pair to the remote power button connector of the back-end system.
- Use the Power Backup Parameter Configurer to set the Operation Mode to Ignition Control Mode and configure on-delay/off-delay times under IGN Setting.
- Click Update Parameters so the module reboots and applies the new settings.
- Connect the DC power input into the first PB-9250J-SA.
- Connect the DC power output of the first unit to the DC power input of the next unit, repeating for each additional unit in the chain.
- Connect the DC output of the last unit in the chain (nearest the back-end system) to the power input of the back-end system, along with the PWRBTN# and other required signals.
- Configure the last unit in the chain to operate in Normal Backup Mode.
- Use a power supply rated 24VDC or higher: 8A or higher with 5A charging mode supports up to 8 daisy-chained units for loads under 80W, while 13A or higher with 10A charging mode supports up to 4 units for loads between 80-180W.
- Select Daisy Chain Mode in the Power Backup Parameter Configurer's Operation Mode settings and click Update Parameters.
- Connect the PB-9250J-SA's RS-232 COM port to the host computer using the supplied DB9-to-DB9 cable, and confirm the host COM port is configured for RS-232 mode.
- Press the Windows key and type "cmd", then press Ctrl+Shift+Enter to open a command prompt with administrative rights.
- Change directory to the folder containing the configurer executable (for example, PB_Configurer.J25.19.exe).
- Type the executable file name followed by the COM port number (for example, "PB_Configurer.J25.19.exe com3") and press Enter.
- If parameters do not update automatically, click "Get Parameters" in the configurer to refresh the status.
- Locate the recessed reset button on the side panel.
- Use a pin to press and hold the button for 5 seconds until one long beep is heard.
- Alternatively, open the Power Backup Parameter Configurer and click "Load Default" to restore original settings, or click "Reset" to erase previous Re-train shutdown timing settings.
The PB series is a standalone power backup module that can protect your box-PC against power outages. Utilizing state-of-the-art supercapacitor technology, it can operate in harsh environments from -25°C to 65°C and have extremely high durability lasting over 10 years.
PB-9250J-SA and PB-4600J-SA are composed of eight and four 370F/ 3.0V supercapacitors, respectively, while PB-2580J-SA is composed of eight 100F/2.7V supercapacitors. They each offer 9250, 4600 and 2580 watt-second energy to offer extra extended operation time to backup your system. Thanks to Neousys' patented CAP energy management technology, It can reliably supply up to 180W of power to the back-end system and automatically manage boot and shutdown without installing additional drivers/ software. In addition to the UPS-like power backup mode, it also offers two advanced ignition control modes for in-vehicle usage.
PB-9250J-SA can work with either standard box-PC or in-vehicle controller to provide a stable power supply and execute user-configurable power-on/power-off delay according to IGN signal input. Featuring various modes, automatic shutdown control and up to 180W output power, Neousys PB series can work with most off-the-shelf box-PCs. And with properties such as maintenance-free energy storage and uninterruptible power supply, the PB series can prevent the connected back-end system from data loss during a power outage in harsh industrial environments!
