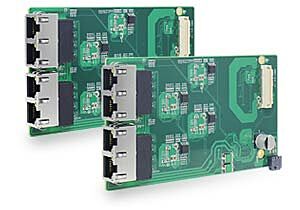

MezIO-G4P: 4-Port Gigabit IEEE 802.3at PoE+ MezIO Module
MezIO-G4PWorks with Nuvo-5026 and Nuvo-7000 Series Platforms from Neousys
Main Features:
- 4x gigabit Ethernet ports
- Compliant with 802.3at PoE+ (MezIO-G4P)
- Supporting 9.5 KB jumbo frame
Frequently Asked Questions
The MezIO-G4P provides 4x Gigabit Ethernet ports, each driven by an independent Intel® I210 controller. The ports support 9.5 KB jumbo frames.
Yes. The MezIO-G4P is compliant with IEEE 802.3at-2009 (PoE+). Each of its 4 ports can deliver up to 25.5 W of power to a connected PoE device.
Use CAT-5e or CAT-6 cable. Maximum cable length is 100 meters.
Both modules provide 4x Gigabit Ethernet ports using 4x Intel® I210 controllers with 9.5 KB jumbo frame support. The MezIO-G4P additionally supports IEEE 802.3at PoE+, delivering up to 25.5 W per port. The MezIO-G4 does not include PoE capability.
The MezIO-G4P is a MezIO™ module intended for use with Nuvo-7000 series and Nuvo-5000 series host systems.
MezIO™ is an interface for integrating application-specific I/O functions into an embedded system. It provides computer signals, power rails, and control signals through a high-speed connector, and modules such as the MezIO-G4P mount using a 3-point mezzanine structure for mechanical reliability.
