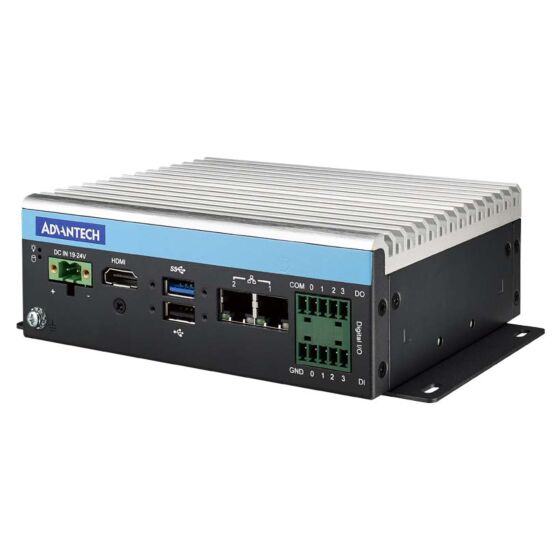

MIC-710AIX Inference System with NVIDIA Jetson Xavier NX
MIC-710AIXStarting at $1,750.00
- Fanless compact design
- NVIDIA Jetson Xavier NX embedded
- 2x LAN ports
- Linux OS with BSP (board support package)
- Supports deep learning trained models
- Wide operating temperature range
- Supports 24/7 secure remote monitoring, control, and OTA deployment - powered by Allxon
Frequently Asked Questions
The MIC-710AIX includes the following I/O:
- 2 x Gigabit Ethernet (10/100/1000 Mbps)
- 1 x HDMI video output
- 1 x USB 3.0 and 1 x USB 2.0 (external)
- 1 x USB 2.0 (internal)
- 1 x 8-bit DI/DO (4 In / 4 Out)
- 1 x RS-232/RS-422/RS-485 COM port
- 1 x MiniPCIe (internal)
- 1 x M.2 (SATA) port (internal)
- 1 x OTG micro USB (internal)
- 1 x Reset button / 1 x Recovery button
- 1 x iDoor expansion
- 1 x Micro SD card slot
The MIC-710AIX uses an AT-type power supply with a DC input range of 19-24V.
The MIC-710AIX operates from -10 to +60°C (14 to 140°F) with operating humidity up to 95% at 40°C (non-condensing). Storage temperature range is -40 to 85°C (-40 to 185°F), and storage humidity is rated 95% RH at 60°C, non-condensing.
The MIC-710AIX is built around the NVIDIA Jetson Xavier NX module:
- CPU: ARMv8.2 (64-bit) HMP architecture, 3 x dual-core CPU clusters (6 x NVIDIA Carmel processor cores), max operating frequency 1.9 GHz
- GPU: Volta GPU, 384 CUDA cores, 48 tensor cores, performance up to 21 TOPS (INT8), max operating frequency 1100 MHz
- Memory: 8GB LPDDR4
- Storage: 16GB eMMC 5.1
The unit measures 147 x 118 x 52 mm (5.78" x 4.65" x 2.47") and has a reference weight of 1.2kg.
Yes. The MIC-710AIX provides one internal M.2 (SATA) port for storage. It also includes an internal MiniPCIe port, though this is noted as reserved for the MIC-710AI variant for a MiniPCIe card. A Micro SD card slot is also available.
The MIC-710AIX provides one 4-input / 4-output isolated DI/DO port on the front of the device. Specifications include:
- Digital Input: 4 channels, 2500 V DC optical isolation. Dry contact logic: closed = 1, open = 0. Wet contact: VIH max 60V DC, VIH min 5V DC, VIL max 2V DC
- Digital Output: 4 channels, 2500 V DC optical isolation, 40V DC sink supply voltage, sink current 0.2A max per channel
The MIC-710AIX has one COM port on the front of the device that can be configured as RS-232, RS-422, or RS-485, with pin assignments defined for each mode.
Each of the 2 Gigabit Ethernet ports has two LEDs. The green LED indicates link/activity: off means no LAN connection, on means link, and blinking means activity on that port. The green-amber LED indicates speed: off means 10Mbps or 100Mbps, and green (on) means 1Gbps.
How-to Guides
- Prepare one host PC.
- Shut down the MIC-710AIX.
- Connect the host PC to the MIC-710AIX internal Micro USB port using a USB cable.
- Press and hold the internal SW_REC1 button.
- Press the SW_RST1 button.
- After 5 seconds, release the SW_REC1 button.
- On the host PC, run the command
lsusb. IfNVIDIA Corp.appears in the output, the MIC-710AIX is in recovery mode.
Note: the root password for MIC-710AIX-00A1 is mic-710aix.
- Use 4 pcs of the supplied screws (M3 x 4L, S/S, D=4.8, H=1) to fix the mounting bracket kit.
- For mounting kit installation, use screws with a minimum diameter of M3 and a length of 4-5mm, 4 pieces.
- For DIN rail kit installation, use screws with a minimum diameter of M3 and a length of 4-5mm, 3 pieces.
| Manufacturer | Advantech |
|---|---|
| Short Description | The MIC-710AIX is a versatile system designed for machine learning applications. The MIC-710AIX is designated on the NVIDIA Jetson platform, providing plenty of power for machine learning applications.It’s compact, fanless design ensures it can be installed in various locations with optimal performance. |
| Processor | Carmel ARMv8.2 3x dual core CPU clusters (6 NVIDIA Carmel processor cores) |
| Graphics | Volta GPU, 384 Cuda core, 48 tensor cores, up to 21 TFLOPS |
| Memory | 8GB LPDDR4 Flash 16G eMMC |
| Video Port | 1X HDMI |
| DIO | 4bit In / 4 bit out |
| M.2 | storage |
| Mini PCI-E | for iDoor |
| Power Adapter | 19-24V DC in |
| Power Input Voltage | 19-24V DC |
| Dimension | 147 x 118 x 52 mm |
| Weight | 1.2kg unboxed |
| Operating Temperature | -10-60C see manual |
| Humidity | 95% at 40C |
| Vibration | 3Grms@5-500Hz |
| CPU Cores | 6 |
| Base CPU Speed | Under 2.0 Ghz |
| Video Output | HDMI |
| LAN Ports | 1-4 |
| Serial Ports | 1-2 |
| USB 2.0 | 1-2 |
| USB 3.0 | 1-2 |
| Max Memory | 8 GB |
| Operating System | Linux |
| Form Factor | Fanless |
| Native Storage Type | M.2 SATA S80 |
